TWISTTUBE® 2472

Operating temperature up to +150°C (+302°F)

Provides electromagnetic shielding

Self-wrapping design

Integrated drain wire for proper grounding

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description
    TwistTube® 2472 is a self-wrapping sleeve designed to provide >30dB of electromagnetic (EM) screening attenuation. 316L fine stainless steel wire is combined with polyester yarn to create a wrappable product that offers flexibility and consistent shielding protection in corrosive environments. The product features an acrylic/silicone coating to prevent end fray and enable cold cutting for specific product lengths.

    Unlike foils and films, TwistTube 2472 is durable and tear resistant, enabling it to provide long term protection. The product is engineered to reduce installation time, accommodate breakouts and can be installed over completed assemblies. An optional 19 AWG, 316L stranded stainless steel wire is integrated into the sleeve for electrical grounding purposes.
  • Typical Applications

    • Instrument panel harnesses
    • Engine compartment harnesses
    • Battery cables
    • Interior harnesses

  • Datasheet Downloads
  • Sizes / Availability
    TwistTube 2472 is available in a range of sizes and cut to your specification. Color is black. Please contact your sales representative for availability
  • Installation Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data - TwistTube® 2472

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    BH100-016A
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    Salt Spray Endurance
    ASTM G85
    Pass - No corrosion

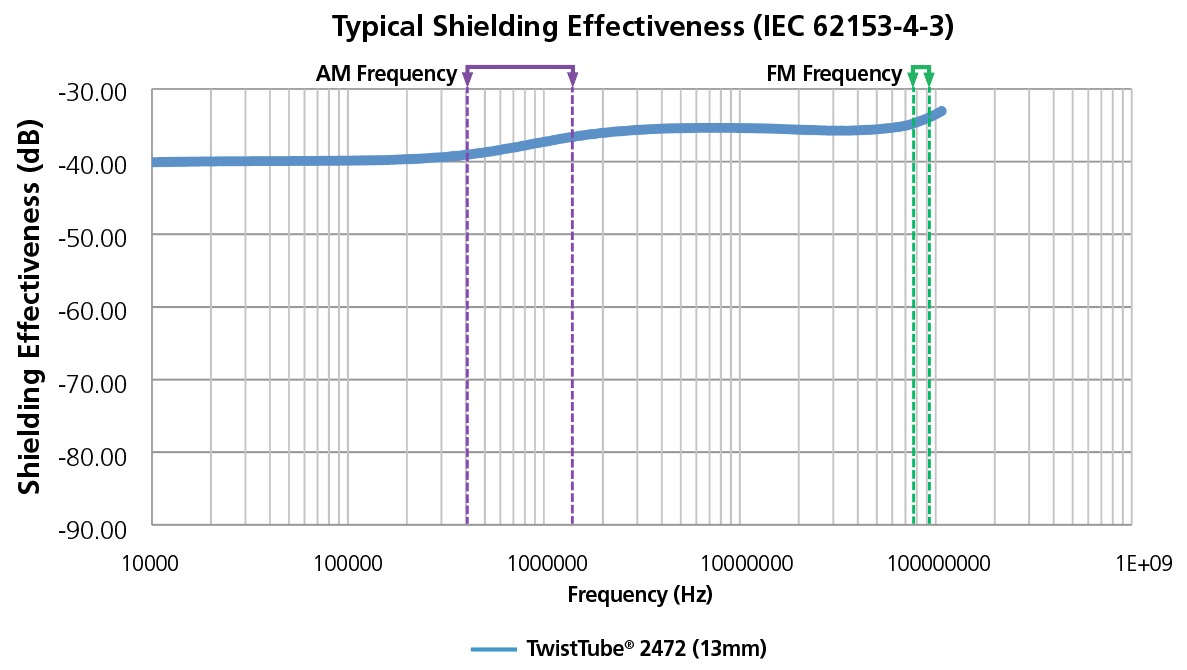

    Shielding Effectiveness
    IEC 62153-4-3
    See graph below
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
