PROTEXX-SHIELD® 3100
High level of thermal insulation (+400°C / +752°F) when
exposed to +500°C heat source
Prevent potential touch conditions within battery pack
Various thickness available
Compressible yet easy to install
Customized designs for custom fit
Contamination free composite structure
Integrated labeling available
FUNCTIONS:
-

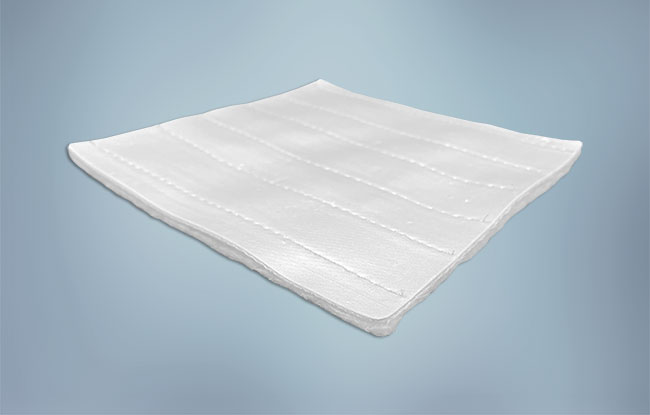

Product DescriptionProtexx-Shield® 3100 is a customized, flexible, highly efficient thermal barrier specifically designed as anti-propagation protection within EV battery pack. Product is an engineered composite structure that acts as gap filler and provides thermal insulation and electrical insulation. The composite structure allows for clean parts reducing any risk of contamination.
Protexx-Shield 3100 is constructed of mineral fiber that provides thermal insulation during a thermal runaway event to prevent modules from coming in contact with each other. Protexx-Shield 3100 can be provided with customized labeling to provide part traceability. -
Typical Applications

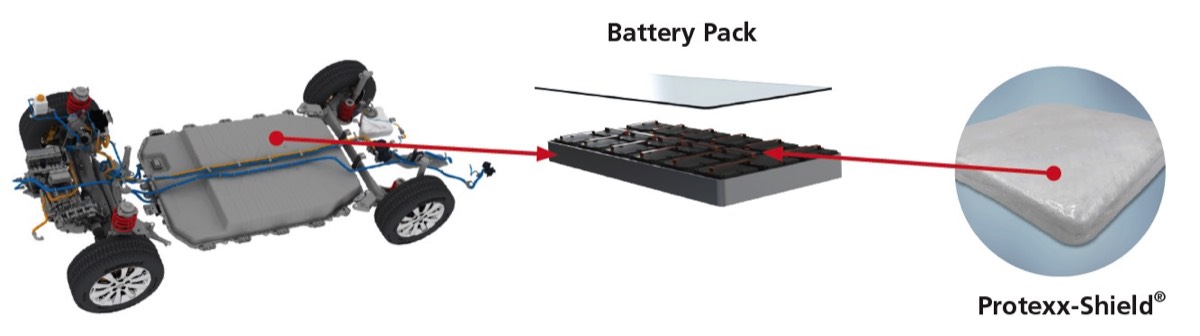

• EV Battery Pack Protection:
– Cell module protection to prevent modules from touching in case of thermal runaway failure mode
-
Datasheet Downloads
-
Support Documentation
-
Sizes / Availability
This product is designed to customer specific application, geometry and performance requirements. Due to the nature of this custom product, please consult your local sales representative for more details.
-
Installation Tools
There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.
-
Product Testing
Performance Data – Protexx-Shield® 3100
For optimal viewing experience on a mobile device, rotate to a landscape orientation.
PropertyTest MethodResultThermal Insulation during +500°C (+932°F) temperatureSP Internal Test MethodProvides +400°C (+752°F) thermal insulation
(when mounted on steel plate)DensityASTM D1777; D3776; D3776MUnder Test g/cm3Thermal ConductivityJIS R2616 modified0.05 [W/m.k]All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
