LOCATWRAP® 2480

Operating temperature -40°C to +150°C (-40°F to +302°F)

Self-closing tubular design

Integrated closure and locating system

Eliminates the need for additional taping

Allows for easy break-outs

Excellent abrasion resistance

Flexible

Easy and quick installation

FUNCTIONS:

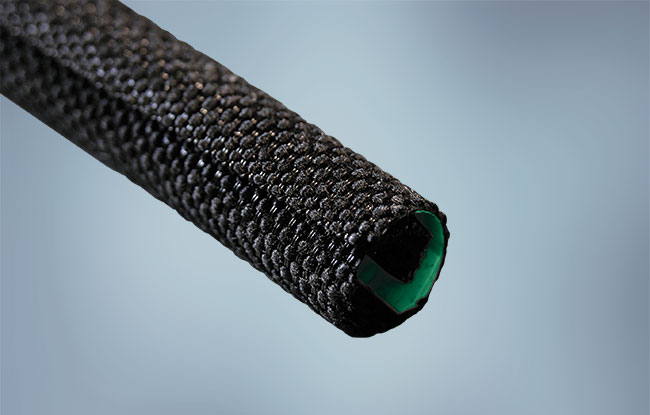

Stacks Image 6847
Open all Close all
  • Product Description
    LocatWrap® 2480 is a self-closing oversleeve designed to provide mechanical protection. LocatWrap 2480 is made out of a woven substrate of monofilament and multifilament polyester yarns equipped with an adhesive tape. This unique design gives the adhesive tape the double advantage of holding the sleeve in place on the application and being a secure closing system.

    LocatWrap 2480 is a system which offers a high level of component protection and eliminates the need of additional taping. It is both flexible and lightweight.

    LocatWrap 2480 fits tightly on wire harnesses, saving space, without reducing the flexibility of the wire bundles it protects. It also maintains a circular profile when flexed. Its self-wrapping design allows for quick and easy bundling of wire and cable assemblies. It easily allows for breakouts and can be installed over completed assemblies
  • Typical Applications

    • Body wiring harnesses
    • Instrument panel harnesses
    • Engine compartment harnesses

  • Datasheet Downloads
  • Sizes / Availability

    Standard Sizes

    Size
    Recommended Application Range (mm)
    Min Ø
    Max Ø
    7
    5
    7
    9
    8
    9
    12
    10
    12
    16
    14
    16
    18
    16
    18
    22
    20
    22
    25
    23
    25
    31
    29
    31
  • Construction and Typical Product Characteristics
    Warp Yarn: Polyester (PET) multifilament

    Fill Yarns: Polyester (PET) monofilament
  • Product Testing

    Performance Data – LocatWrap® 2480

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Neither visible degradation nor loss of flexibility
    Low Temperature Flexibility
    BH100-016A
    Pass -40°C (-40°F)
    Flammability
    FMVSS 302
    Pass
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to
    the following test cycles:
    • Immersion for 15s at 22°C followed by a drying period of 24hrs at 150°C: motor oil, protection oil, automatic transmission fluid, mineral hydraulic fluid, zinc chloride (drying at 23°C)
    • Immersion for 2hrs at 70°C (in vapor), followed by a drying period of 4hrs at 23°C: battery fluid
    • Immersion for 24hrs at 70°C: windscreen washer
    • Immersion for 24hrs at 40°C followed by a drying period of 4hrs at 23°C: fuel C +15% methanol, unloaded petrol 98.
    Gasoline Resistance
    STE 9645871099
    No visible degradation after gasoline spray on the product,
    which is placed in an oven for 24hrs at 40°C and repeated
    10 times.
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
