FLEXFIT® 2101XT

Operating temperature from -70°C to +150°C (-94°F to +302°F)

Low temperature flexibility to -70°C (-94°F)

Coverage > 85%

Does not trap heat or moisture

Excellent abrasion resistance

Self-fitting over many shapes and sizes

Orange RAL 2003 according to MBN LV 312-3, VW60360-3, GS 95008-3-3

Color coded products for identification needs

Low burning rate

FUNCTIONS:

Stacks Image 8083
Stacks Image 6847
Open all Close all
  • Product Description

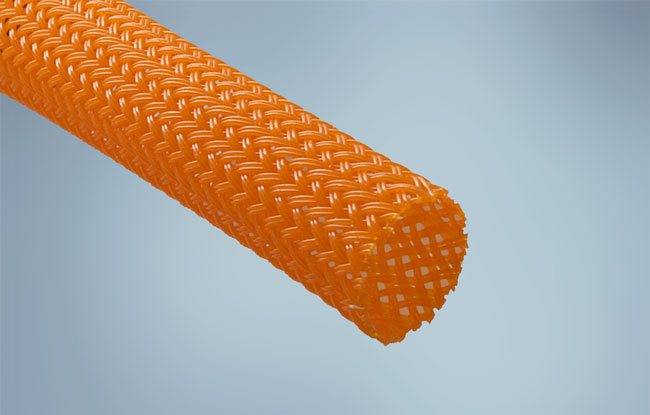

    FlexFit® 2101XT is a tough, lightweight polyester braid designed for high mechanical protection of tubes, hoses, and cable assemblies as well as wire harnesses from mechanical damage due to chafing, cutting, stone inpingement, and abrasion. Its low expansion ratio ensures a high coverage rate and extremely high abrasion resistance.

    The round profile makes it easy to install and its expandable design allows for fit to multiple application sizes and profiles. Additionally, the textile construction delivers high flexibility and prevents trapping of water, heat and humidity.

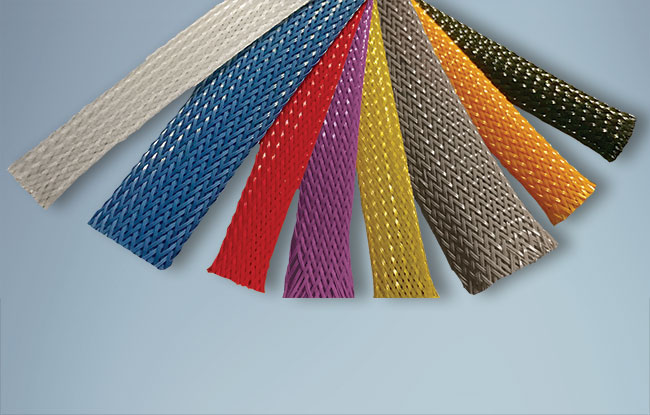

    FlexFit® 2101XT is available in a variety of colors for identification of critical and key components. Orange is ideal for HEV & EV applications where high voltage cables must be easily identified.
    * Not all available colors are shown.
  • Typical Applications

    • Electrical Distribution Systems
    • Hose and Cable Assemblies
    • Power electronics
    • EV and HEV vehicles
    • Wire harness signal cables

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Polyester (PET) monofilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Recommended Application
    Range (mm)
    Min Ø
    Max Ø
    Maximum Weight
    g/m (lb/ft)
    FlexFit 2101XT 8-C
    6
    12
    12.7 (0.0085)
    FlexFit 2101XT 10-C
    8
    13
    14.6 (0.0098)
    FlexFit 2101XT 13-C
    8
    16
    19.4 (0.0130)
    FlexFit 2101XT 16-C
    12
    23
    25.2 (0.0169)
    FlexFit 2101XT 19-C
    15
    26
    27.8 (0.0186)
    FlexFit 2101XT 22-C
    20
    32
    30.1 (0.0202)
    FlexFit 2101XT 25-C
    23
    31
    35.7 (0.0239)
    C = Color Code: Orange - 3 | Natural - 9 | Blue - 6 | Yellow - 4 | Red - 2 | Gray - 8 | Green - 5 | Violet/Purple - 7 | Black - 0
  • Product Testing

    Performance Data – FlexFit® 2101XT

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    BMW GS 95008-3-3 (2017-04)
    ISO 6722-1
    MBN LV 312-3, VW60360-3
    Passed +150°C long term
    Passed +175°C short term
    Surface Coverage
    BMW GS95008-3-3 (2017-04)
    DIN 65164-2 min. 65%
    MBN LV 312-3, VW60360-3
    92%
    Abrasion Resistance
    BMW GS 95008-3-3 (2017-04)
    BMW GS 95008-3-1
    MBN LV 312-3, VW60360-3
    Class F (> 15.000 double-strokes)
    extremely high abrasion resistance
    Flammability
    DIN 75200
    BMW GS 95008-3-3 (2017-04)
    FMVSS 302
    MBN LV 312-3, VW60360-3
    Class A
    Non-combustible
    Fluid Resistance
    BMW GS 95007-1-1 supplement 1
    MBN LV 312-3, VW60360-3
    Passed for all chemical fluids including
    (Battery acid, ATF, AdBlue, Fuels, etc.)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
