ROUNDIT® EMI C27 XWS

High Performance EMI Shielding
     – Ro max = 5 mΩ
     – Lt = 2 nH/m

Operating temperature from -65ºC to +200ºC (-85ºF to +392ºF)

ASD EN 4674-004

Halogen-free

Self-wrapping design

Fast and easy installation

Stable construction

Ideal for reworking components without disconnecting them

Tracer indicating the maximum operating diameter

FUNCTION:

Stacks Image 6847
Stacks Image 8897
Open all Close all
  • Product Description

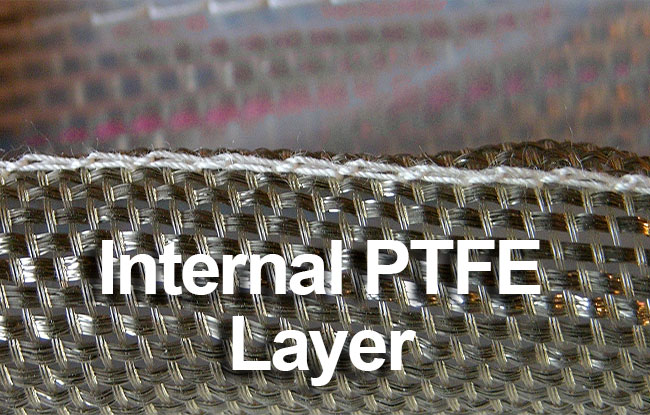

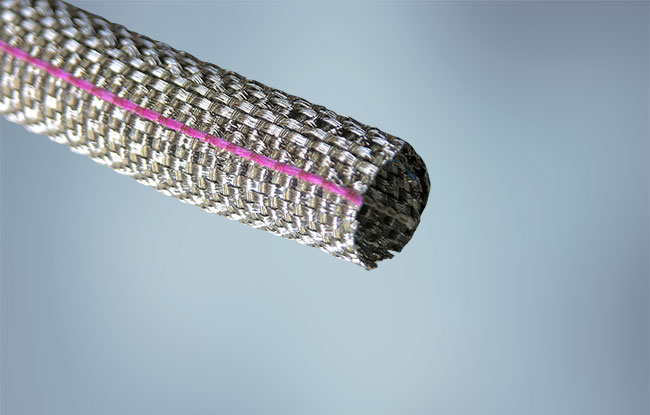

    ROUNDIT® EMI C27 XWS is a wrap-around sleeving designed for EMI shielding of wire and cable bundles. ROUNDIT EMI C27 XWS is manufactured from PPS monofilaments and nickel plated copper C27 supplied with an internal layer of PTFE tape thus allowing wire harnesses to be protected from the metal.

    The self-wrapping feature of ROUNDIT EMI C27 XWS allows for quick and easy installation and removal of the product for assembly and maintenance.

    The design offers innovative solutions to the protection of breakout areas and also provides ease of removal when inspection or maintenance of cables is necessary.

    As an additional benefit, ROUNDIT EMI C27 XWS enables users to stock a limited range of sizes to cover a wide range of cable and wire diameters.

    Thanks to its unique geometry and metal insertion, ROUNDIT EMI C27 XWS is easy to clamp with existing solutions.

    ROUNDIT EMI C27 XWS has many applications in the aeronautical and defense industries.

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Max Wire
    Harness Size
    mm (in)
    Recommended
    Application Range
    mm
    Min Ø
    Max Ø
    Max Backshell
    Diameter
    mm
    Standard
    Packaging
    m
    Max. Spec. Weight
    (w/o PTFE layer)
    g/m
    Max. Spec. Weight
    (w/PTFE layer)
    g/m
    Max Typical
    Weight
    g/m
    ROUNDIT EMI C27 XWS B 5-8
    5 (3/16")
    1
    5
    8
    200
    59
    50
    ROUNDIT EMI C27 XWS B 8-8
    8 (5/16")
    5
    8
    11
    150
    66
    64
    ROUNDIT EMI C27 XWS B 13-8
    13 (1/2")
    8
    13
    16
    125
    77
    67
    ROUNDIT EMI C27 XWS B 16-8
    16 (5/8")
    13
    16
    19
    75
    82
    81
    ROUNDIT EMI C27 XWS B 19-8
    19 (3/4")
    16
    19
    23
    75
    96
    95
    ROUNDIT EMI C27 XWS B 25-8
    25 (1")
    19
    25
    32
    75
    122
    104
    ROUNDIT EMI C27 XWS B 32-8
    32 (1-1/4")
    25
    32
    42
    50
    160
    144
    ROUNDIT EMI C27 XWS B 38-8
    38 (1-1/2")
    32
    38
    51
    35
    187
    148
    ROUNDIT EMI C27 XWS B 45-8
    45 (1-3/4")
    38
    45
    60
    35
    205
    186
    ROUNDIT EMI C27 XWS A** 63-8
    63 (2-1/2")
    45
    63
    25
    310
    310
    ROUNDIT EMI C27 XWS A** 88-8
    89 (3-1/2")
    63
    89
    25
    400
    400
    ROUNDIT EMI C27 XWS A** 140-8
    140 (5-1/2")
    114
    140
    25
    610
    610

    A= Without internal PTFE layer B = With internal PTFE layer
    **Size obtained by assembling 2 strips of product or more.

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ROUNDIT EMI C27 XWS B
    8
    8 (light gray)
    150m
  • Installation Tools

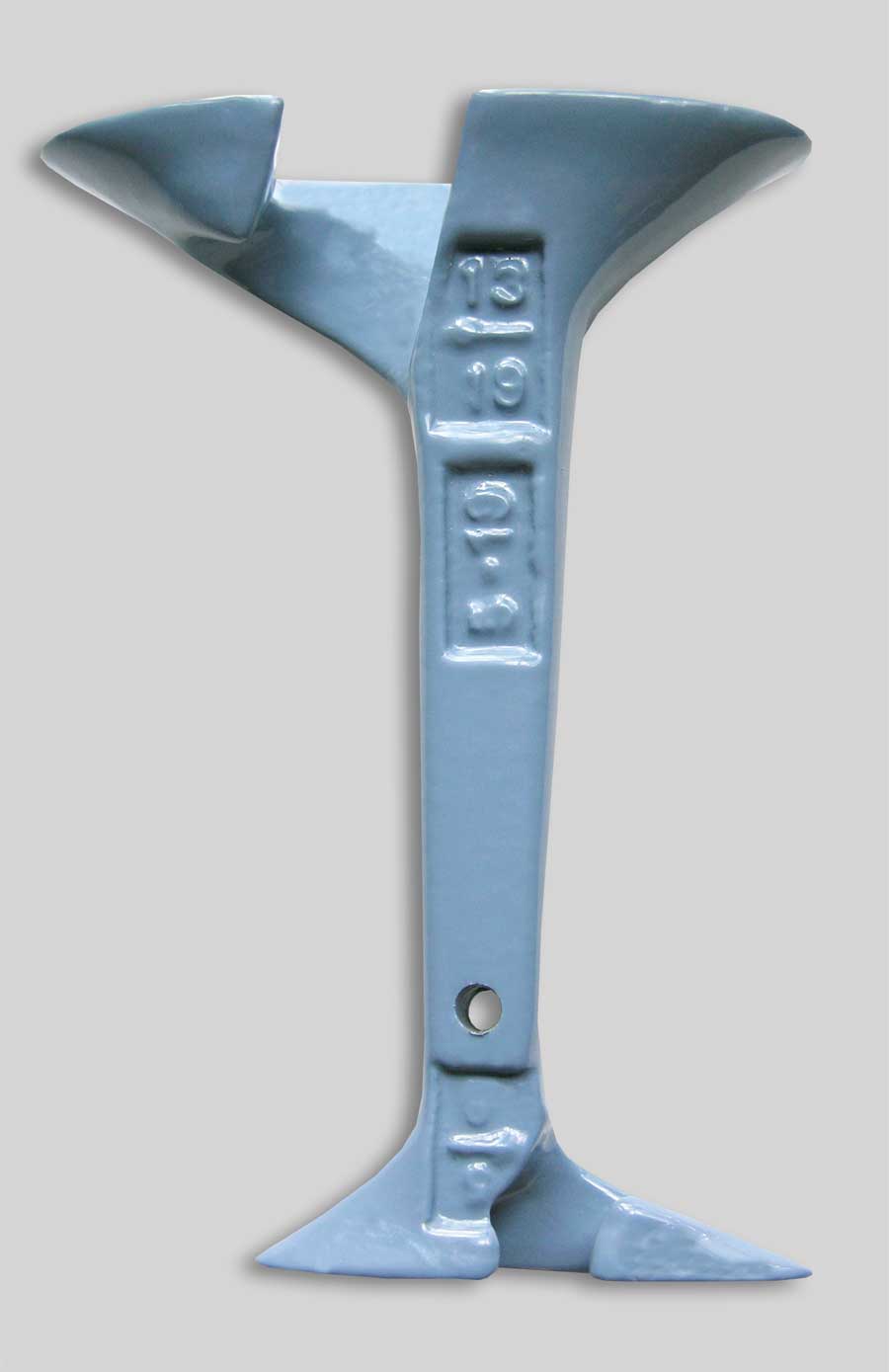

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® EMI C27 XWS

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Operating Temperature Range
    Thermal endurance & shocks
    -65ºC to +200ºC (-85°F to +392°F)
    Rapid change of temperature

    EN6059-308

    Pass
    Flammability/smoke density/toxicity
    ABD 031 & FAR Part 25 § 853
    Conforms
    MECHANICAL
    Dynamic Cut-through
    EN 6059 Part 405
    Pass
    Bending
    EN 6059 Part 402
    Pass
    Vibrations
    EN 6059 Part 406
    Pass
    CHEMICAL
    Fluid Resistance
       – Jet Fuel: JP-5 (Otan F44)
       – Hydraulic Fluid (Skydrol 500B4)
       – Mineral Oil (MIL-L-7870A)
       – Synthetic Oil (MIL-L-23699)
       – Cleaning Fluids (MIL-L-87936)
       – De-icing Fluid (MIL-A-8243)
    EN 6059 Part 303

    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Salt spray resistance
    EN 2591-307 – 500 hours
    Pass
    Mold Growth
    EN 6059 Part 306
    Pass
    EMI PERFORMANCE
    Resistance Measurement
    EN 3475-301
    R0 max = 5 mΩ for all sizes except size 5 = 6mΩ
    Pass
    Transfer Impedance
    IEC 62153-4-3 Triaxial method
    Lt = 2 nH
    Pass
    Lightning
    EN 2591-214 – Waveform 1 10KA
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
