THERMOJACKET® E

Operating temperature up to +650°C (+1202°F)

Peak temperature +750°C (+1382°F)

Excellent thermal insulation

Extremely flexible

Conforms to component

Low profile

FUNCTION:

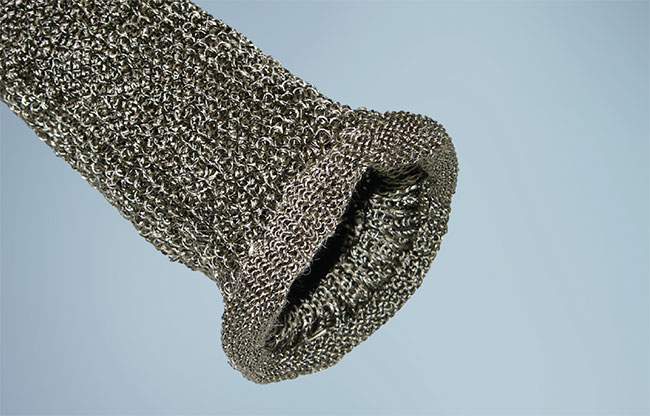

Stacks Image 6847
Open all Close all
  • Product Description
    ThermoJacket® E is a knitted sleeve developed for insulation of high temperature exhaust systems. Designed with basalt yarns, ThermoJacket E can withstand temperatures up to +750ºC (+1382ºF).

    The high degree of insulation provided by ThermoJacket E enables exhaust gas to maintain temperature as it moves through the exhaust system. Maintenance of exhaust gas temperature is important in order to ensure complete conversion of exhaust gas and particulates. Complete conversion is necessary to meet the increasingly strict emission regulations set in place by government mandate.

    ThermoJacket E’s innovative design can expand up to 1.5 times its own diameter and accommodates flanges and bends typically seen on exhaust system components.

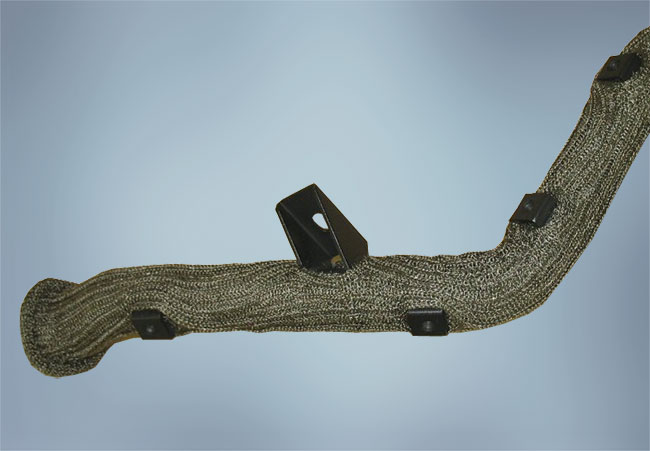

    The latest developments feature a version with customized built-in bracket spaces to ease installation and keep integrity of the sleeving structure.
  • Datasheet Downloads
  • Availability

    Availability

    ThermoJacket E is available in a range of sizes and lengths designed to meet specific application requirements. Please contact your sales representative for availability.
  • Product Testing

    Performance Data - ThermoJacket® E

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Thermal Endurance
    BH100-521
    Pass - No degradation
    Cold / Wet Endurance
    BH100-522
    Pass - No degradation
    Thermal Containment
    BH100-509
    See table below
    Flammability
    SAE J369
    D45 1333
    Does not ignite
    Type A - No ignition
    Flammability with Oil Contamination
    BH100-524 (ref. SAE J369)
    Self-extinguishing
    Vibration
    BH100-507
    Retains structural integrity
    CHEMICAL
    Fluid Resistance
    BH100-003F

    50/50 Antifreeze/Distilled Water
    5% NaCl
    Transmission Fluid
    Diesel Fluid LSRD-4
    ASTM Reference Fuel C
    SAE 5W30
    Brake Fluid SAE RM-66
    Power Steering Fluid
    Windshield Washer Fluid
    No degradation or loss of flexibility
    Salt Spray
    ASTM G85
    Pass
    RESISTANCE TO WASHING
    Power Washing Endurance
    BH100-539
    No degradation

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.

    Thermal Containment Test per BH100-509 on ThermoJacket E 2" (51mm)
    Exhaust Pipe Parameters
    Gas Inlet Temperature
    +832°C
    Pipe Surface Temperature (w/ThermoJacket E)
    +649°C
    Sleeve Surface Temperature (w/ThermoJacket E)
    +387°C
    Results
    Thermal Containment (Temperature Reduction)
    +262°C
    Temperature at 10mm away from sleeve (ambient)
    +137°C
    Temperature at 25mm away from sleeve (ambient)
    +106°C
    Temperature at 100mm away from sleeve (ambient)
    +76°C
