QUIETWRAP® 3002

Operating temperature up to +150°C (+302°F)

Self curling wrappable design

Excellent abrasion resistance

Flexible

Lightweight

Aesthetic solution

FUNCTIONS:

Stacks Image 8083
Open all Close all
  • Product Description

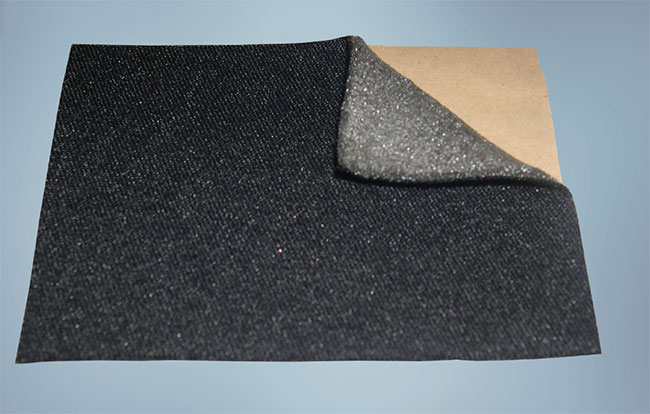

    QuietWrap™ 3002 is an acoustic laminate composed of a abrasion resistant fabric and noise damping foam. A fully backed adhesive system provides fixation for challenging geometries and locations where traditional methods struggle.

    The combination of fabric and foam provides excellent noise suppression while offering a high level of abrasion protection. QuietWrap 3002 is more durable than standard foam.
  • Typical Applications

    • Body wiring harnesses
    • Instrument panel harnesses
    • Engine compartment harnesses
    • Modular wire harnesses
    • Tube, hose, and cable assemblies

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Polyester (PET) fabric

    Inner Layer: Polyurethane foam

    Adhesive System: Acrylic adhesive
  • Availability
    QuietWrap 3002 is a customizable product and is available in various designs to meet specific application requirements. Color is black. Please contact your sales representative for availability.
  • Installation Guide / Tools
  • Product Testing

    Performance Data – QuietWrap™ 3002

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    Noise Suppression
    SAE J2192
    Rubbing: > 14dB
    Rattling: > 50dB
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
