EXPANDO® HR PLUS

Operating temperature from -70°C to +150°C (-94°F to +302°F)

VW-1 according to UL 1441

FAR 25 § 853

UL recognized component

Does not trap heat or humidity

Rot-free

Expandable design accommodates a variety of sizes

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

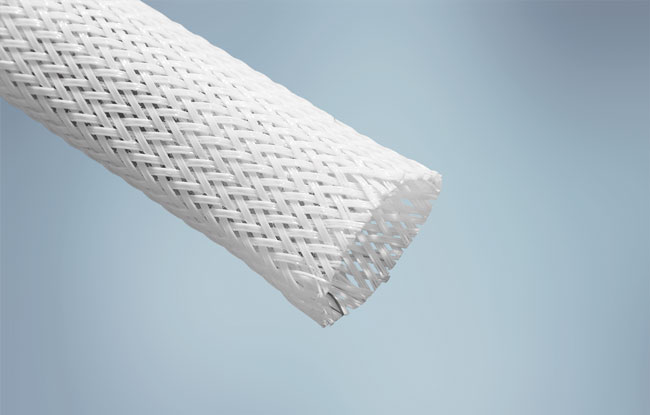

    Expando® HR Plus is an expandable sleeve constructed of Halar® (E-CTFE) fluoropolymer that is designed for applications up to +150ºC (+302ºF). Inherently flame-retardant, it is a UL Recognized Component which meets VW-1 requirements, and will not melt and drip on direct exposure to flame. Expando HR Plus is a special purpose, highly reliable solution for military and aerospace applications. It offers good mechanical properties, performs well in both high and low temperature environments, and has outstanding chemical resistance.

    The patented Bentley-Harris Plus treatment makes end termination neater and easier. The Plus treatment creates a webbing between the filaments of the sleeving to reduce end fray during installation, allowing Expando HR Plus to be cut with ordinary scissors. This reduces assembly time and eliminates the need for proper ventilation equipment required for hot-knife cutting.

    Expando HR Plus protective oversleeve has many uses in the aerospace, marine, electronic, military, nuclear and general manufacturing industries.

    Expando products are tough, lightweight oversleeves used to protect cable assemblies, hoses and wire harnesses from chafing, cutting and abrading. The open-weave construction of Expando products enables each size to expand to fit several application shapes and sizes. This open-weave construction also makes them highly flexible and resistant to trapping water, heat and humidity.



    Halar is a registered trademark of Solvay Solexis.
  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    Expando HR Plus 3-X/X
    2 (3/32")
    6 (1/4")
    4.42 (0.00297)
    610 (2000')
    Expando HR Plus 6-X/X
    3 (1/8”)
    11 (7/16")
    6.55 (0.00440)
    305 (1000')
    Expando HR Plus 13-X/X
    6 (1/4")
    19 (3/4")
    19.64 (0.0132)
    152 (500')
    Expando HR Plus 19-X/X
    13 (1/2")
    32 (1-1/4")
    27.47 (0.0198)
    152 (500')
    Expando HR Plus 32-X/X
    19 (3/4")
    45 (1-3/4")
    37.65 (0.0253)
    76 (250')
    Expando HR Plus 45-X/X
    32 (1-1/4")
    70 (2-3/4")
    62.21 (0.0418)
    76 (250')
    Expando HR Plus 51-X/X
    38 (1-1/2")
    89 (3-1/2")
    73.66 (0.0495)
    76 (250')
    X/X = Color Code: 0/9 for black with white tracer; 9/0 for white with black tracer

    * Expando sleeving products made with the patented “Plus” treatment should not be used in hard vacuum environments nor immersed in solvents or liquids where Plus particulates could contaminate the system environment. Consult Systems Protection for information on protection products for these applications.

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    Expando HR Plus
    3
    9/0 (white with a black tracer)
    610m (2000ft)
  • Product Testing

    Performance Data - Expando® HR Plus

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -70ºC to +150ºC (-94°F to +302°F)
    Low Temperature Flexibility
    MIL-DTL-23053D
    -70°C
    Flammability
    UL 1441
    FAR 25 § 853
    VW-1
    Pass
    Smoke Density
    ASTM E-662
    Flaming Mode
    Non-Flaming Mode

    Dmax <50
    Dmax <50
    Abrasion Resistance
    EN 6059 Part 403
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
