THERM-L-LITE® FG

Operating temperature up to +200°C (+392°F)

Excellent protection against radiant heat

Open design aides in installation

Fluid and chemical resistant

Tubular sleeve with no sew line

Low profile

FUNCTIONS:

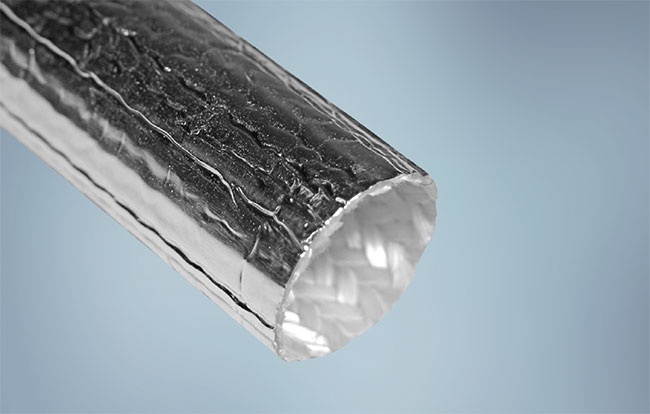

Stacks Image 6847
Open all Close all
  • Product Description
    Therm-L-Lite® FG is a woven, one-piece fiberglass sleeve that is bonded with an aluminized heat-seal film using a polymeric adhesive. A special manufacturing process permits the sleeve to boast a virtually seamless construction.

    Therm-L-Lite FG’s smooth outer surface helps to provide improved protection for components that are exposed to radiant heat. Providing superior fluid resistance, Therm-L-Lite FG is engineered to protect hoses and wire harnesses in passenger vehicles, light and heavy trucks and off-highway vehicles.
  • Typical Applications

    • Brake tubes and hoses
    • Power steering hoses
    • Cable assemblies
    • Heater hoses
    • Air conditioning hoses
    • Wire Harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Aluminum

    Inner Layer: Fiberglass Multifilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter
    mm (in)
    Standard Packaging
    m (ft)
    Therm-L-Lite FG 10-ALU
    10 (3/8")
    152 (500')
    Therm-L-Lite FG 13-ALU
    13 (1/2")
    152 (500')
    Therm-L-Lite FG 16-ALU
    16 (5/8")
    152 (500')
    Therm-L-Lite FG 19-ALU
    19 (3/4")
    152 (500')
    Therm-L-Lite FG 22-ALU
    22 (7/8")
    152 (500')
    Therm-L-Lite FG 25-ALU
    25 (1")
    76 (250')
    Therm-L-Lite FG 32-ALU
    32 (1-1/4")
    76 (250')
    Therm-L-Lite FG 38-ALU
    38 (1-1/2")
    76 (250')
    Therm-L-Lite FG 45-ALU
    45 (1-3/4")
    76 (250')
    Therm-L-Lite FG 51-ALU
    51 (2")
    38 (125')
    Therm-L-Lite FG 64-ALU
    64 (2-1/2")
    38 (125')
    Availability

    Therm-L-Lite FG is available in a range of sizes and cut to your specification. Color is aluminum (silver). Please contact your sales representative for availability

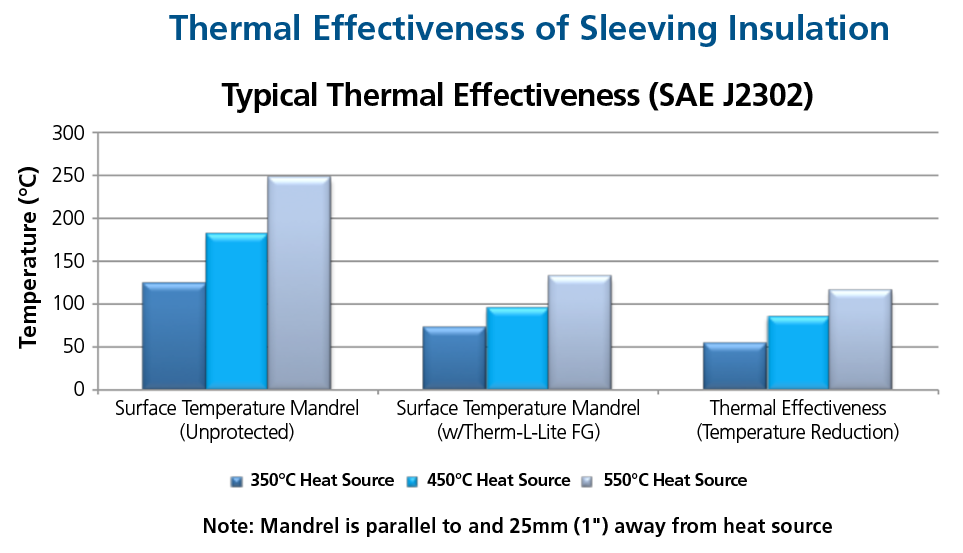

  • Product Testing

    Performance Data – Therm-L-Lite® FG

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +225°C (+200°C rating)
    Pass +200°C (+392°F)
    Thermal Endurance
    BH100-503
    No degradation or delamination
    (25mm above a +538°C heat source for 6 hours)
    Low Temperature Flexibility
    BH100-016A
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
