FYREJACKET® 1650
Repeatable, fast and easy installation
Highly expandable and flexible

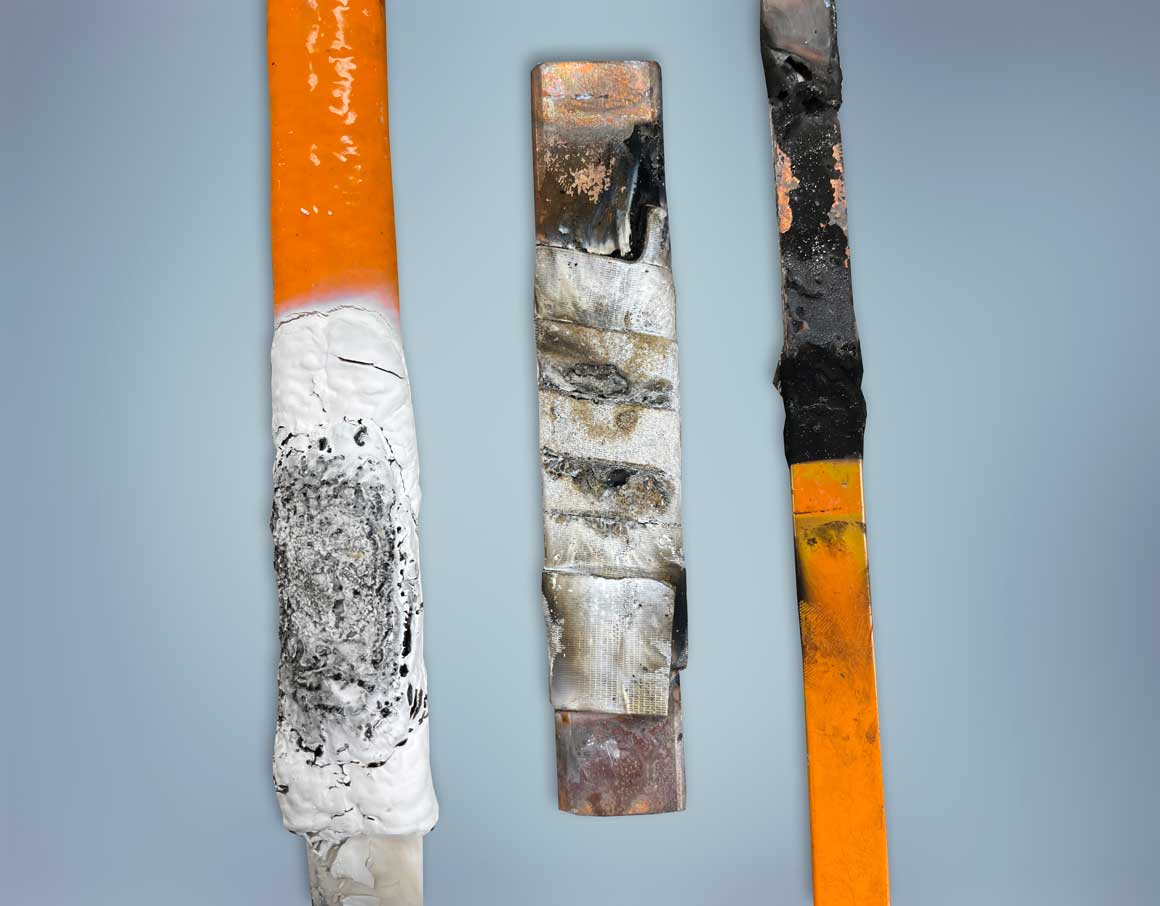

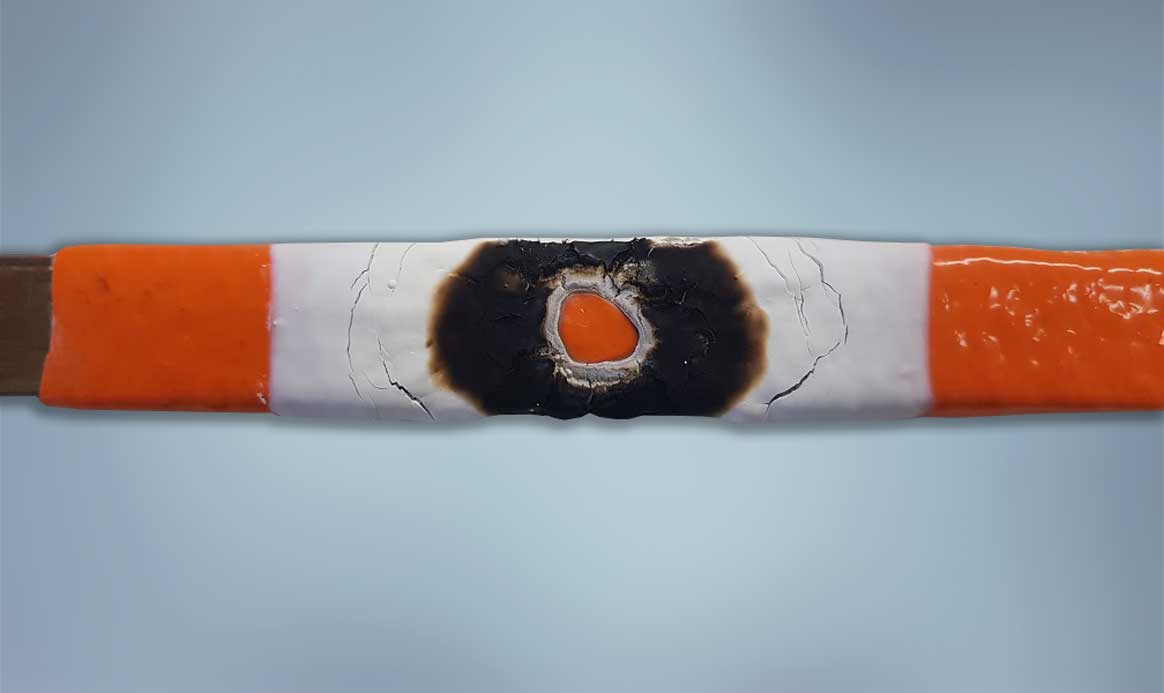

Superior Flame Protection during exposure to +1000°C x >30 minutes
Dielectric protection > 2.0kV Post Flame
Non-flammable
FUNCTIONS:
-

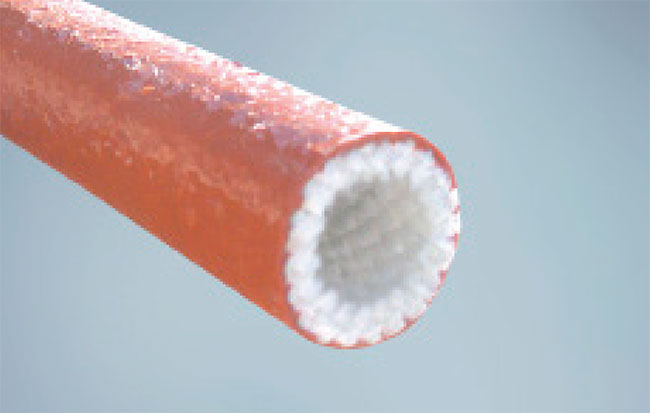

Product DescriptionFyreJacket® 1650 sleeve is a highly expandable fiberglass structure with engineered silicone coating, providing superior flame protection and dielectric resistance. Product is specifically designed as anti-propagation protection in case of Thermal Runaway within EV battery pack.

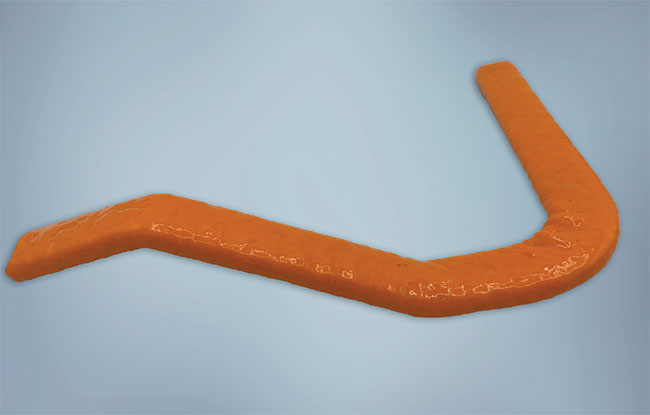

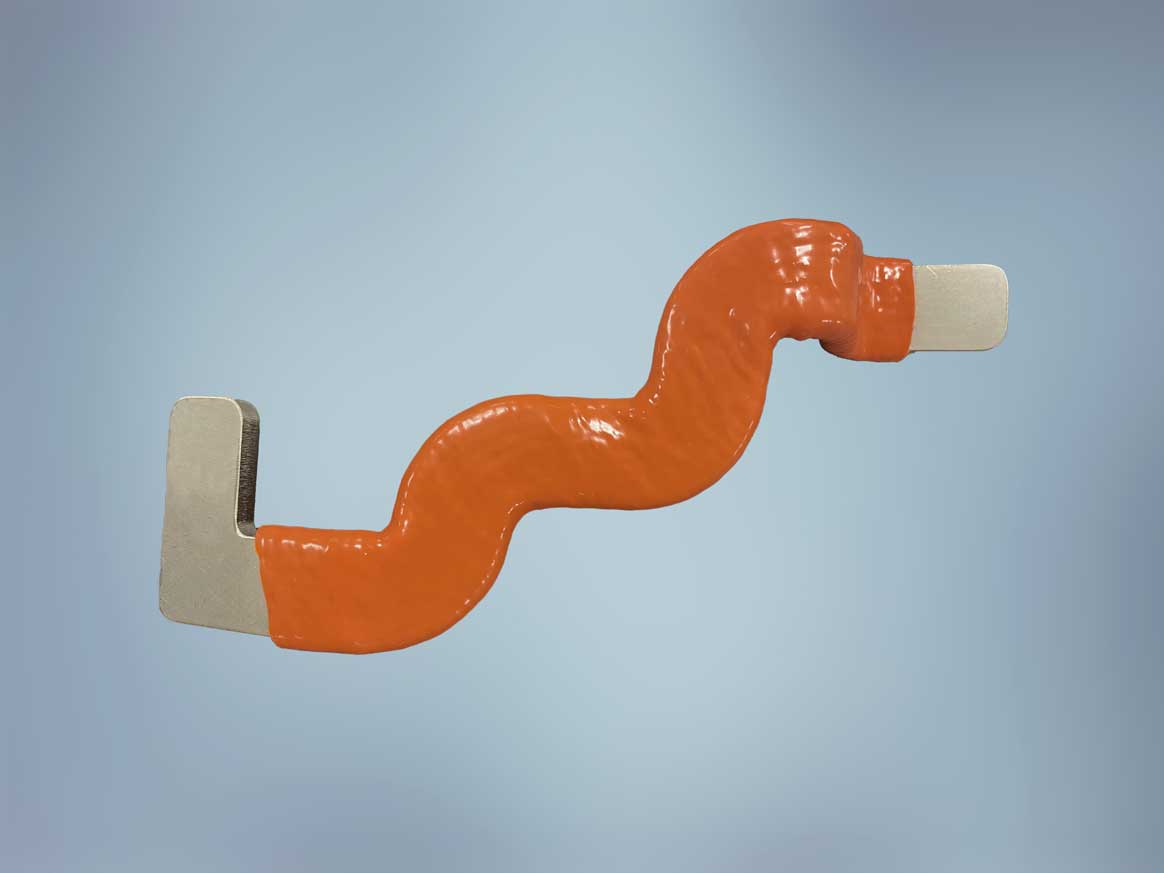

The inherent elasticity of FyreJacket 1650 delivers a sleeve solution with easy installation and superior fit on complex busbar geometries. FyreJacket 1650’s ability to contour along with the busbar geometry minimizes space required for Thermal Runaway protection. Space savings is very valuable within battery pack.
FyreJacket 1650 provides the highest level of protection from Thermal Runaway along with repeatable, reliable and fast installation times. This superior product gives the end user confidence the best solution is in use. -
Typical Applications

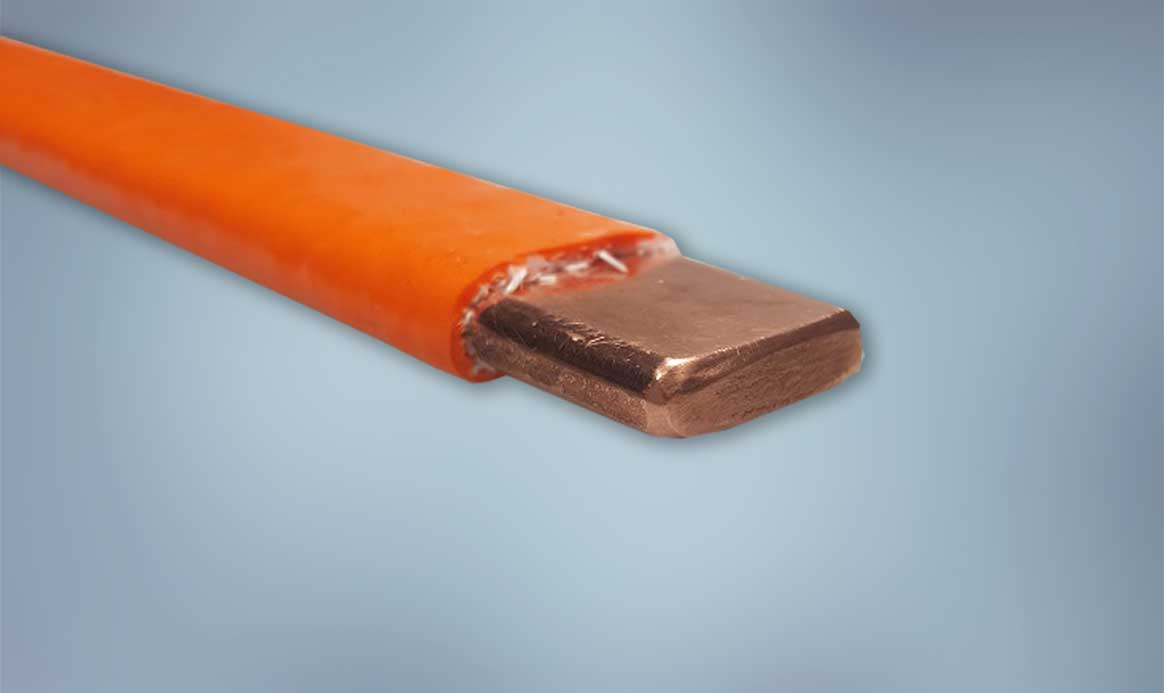

• Protects busbars from Thermal Runaway
• Busbars located within EV battery pack
• Busbar outside EV battery pack
• Rigid busbars
• Flexible busbars -
Datasheet Downloads
-
Support Documentation
-
Sizes / Availability
Standard Sizes
Commercial Part NumberNominal Diameter (mm)FyreJacket 1650 88FyreJacket 1650 1010FyreJacket 1650 1212FyreJacket 1650 1414FyreJacket 1650 1616FyreJacket 1650 1818FyreJacket 1650 2020Color: Orange
Application based variables will influence the sleeve size required. Routing geometry and application type may present installation and fit challenges that should be considered. Proper sleeve sizing should be confirmed by the end user. Please consult your local sales representative for recommendations and support.
-
Installation Guide
Click the image to download a Recommendation and Installation Guide, in PDF format, for our FyreJacket® 1650 product.
For additional information, please contact your local sales representative. -
Product Testing
Performance Data – FyreJacket® 1650
For optimal viewing experience on a mobile device, rotate to a landscape orientation.
PropertyTest MethodResultThermal RunawaySP Internal Test MethodResists 30 min x 1000°C FlameFlammabilitySAE J369Self-extinguishingDielectric Strength PRE Thermal Runaway (AC and DC)EN6059-501
ASTM D3755-20>5.0 kV Breakdown Voltage
Dielectric Strength POST Thermal RunawaySP Internal Test Method + EN6059-5013.0kV x 1 min No Breakthrough
>3.5kV Breakdown VoltageWall ThicknessSP Internal Test Method≈ 2.0mmAll numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
