THERMFLEX® 1210

Operating temperature up to +540°C (+1004°F)

Excellent thermal insulation

Flame retardant

Fluid and chemical resistant

Lightweight and low profile

Tubular shape

FUNCTION:

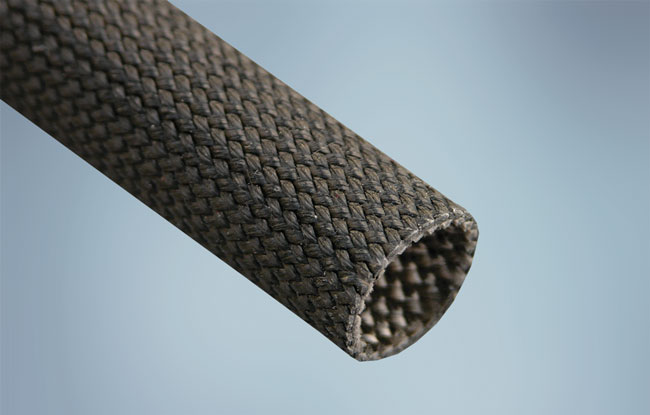

Stacks Image 6847
Open all Close all
  • Product Description
    ThermFlex® 1210 is a heat treated and saturated sleeve that provides superior protection against conducted and convective heat. Constructed of braided fiberglass, ThermFlex 1210 is used in high temperature areas to provide superior insulation to components that must maintain elevated temperatures to maximize performance efficiency. ThermFlex 1210’s saturated coating aides in the handling and installation of the product while also providing an increased level of durability compared to uncoated fiberglass sleeving.

    As an insulator, ThermFlex 1210 is used on Exhaust Gas Recirculation (EGR) tubes, thermactor tubes and exhaust system components to provide maximum fuel efficiency and lowered emissions.

    ThermFlex 1210 is also used on wire harnesses, fuel and hydraulic lines, cables and hoses in close proximity to engines and exhaust systems. Its braided construction allows excellent flexibility in temperatures as low as -70ºC (-94ºF).
  • Typical Applications

    • Wire harnesses
    • Fuel and hydraulic lines
    • Cables and hoses near engines and exhaust systems
    • Exhaust Gas Recirculation (EGR) tubes
    • Exhaust system component protection

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: High temperature coating

    Inner Layer: Fiberglass
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter
    (mm)
    ThermFlex 1210 8
    8
    ThermFlex 1210 10
    10
    ThermFlex 1210 11
    11
    ThermFlex 1210 13
    13
    ThermFlex 1210 15
    15
    ThermFlex 1210 16
    16
    ThermFlex 1210 19
    19
    ThermFlex 1210 22
    22
    ThermFlex 1210 25
    25
    ThermFlex 1210 32
    32

    The selection of the tubular or slit version of this product in combination with application based variables, will influence the sleeve size required. Proper sleeve sizing is at the discretion of the end user. Please consult your local sales representative for recommendations and support.


    Availability

    Standard sizes are listed here, Additional sizes could be available upon request. Note smaller sizes are available dependent upon region. Please contact us to learn more.

    Available in tubular shape. Customization for optimal installation also available.

    Available in spools and custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Standard color is black. Additional colors are available.

    Please consult your local sales representative for regional packaging details and standards.

  • Product Testing

    Performance Data - ThermFlex® 1210

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +540°C (+1004°F)
    Pass +540°C (+1004°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
