PROGARD®

Operating temperature up to +125°C (+260°F)

Enhanced abrasion resistance

MSHA acceptance IC-171/1

Available in black only

High coverage for maximum protection

Fluid resistant

Custom printing available

FUNCTION:

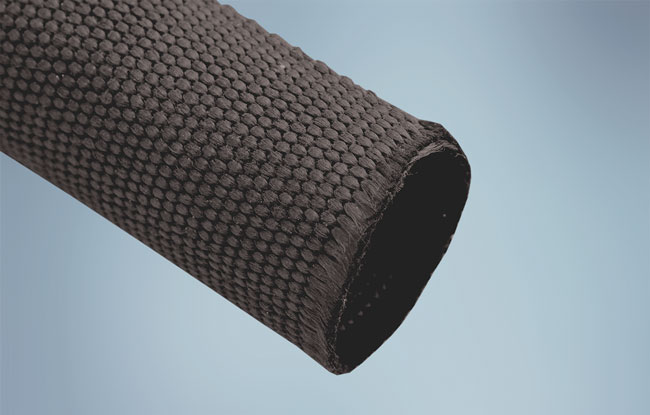

Stacks Image 6847

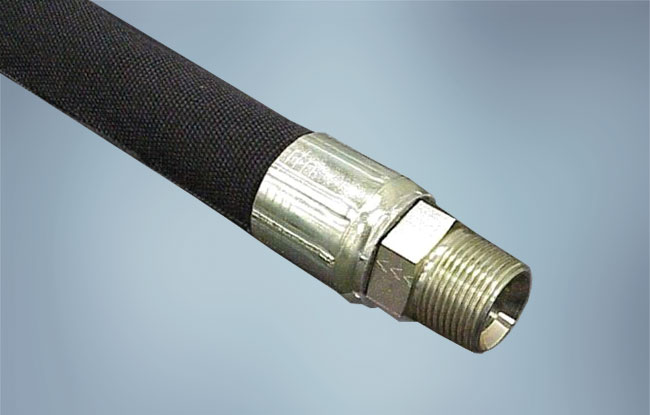

Stacks Image 8718
Open all Close all
  • Product Description
    ProGard® is a durable, woven nylon sleeve constructed of high denier nylon yarn. ProGard provides enhanced abrasion protection over hose assemblies, cables, wires and other applications where rugged environments may cause wires and hoses to be chafed and damaged.

    ProGard’s dense construction provides maximum coverage of the hoses and cables it protects, assuring enhanced abrasion and cut-through resistance. These properties extend the service life of the protected component, and provide the cost savings associated with decreased hose replacements.

    ProGard is used in a wide range of industries including hydraulics, mining, construction & agriculture.
  • Typical Applications

    • Hoses
    • Cables
    • Wires

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Product Reference
    Nominal Size
    mm (in)
    Standard Packaging
    m (ft)
    ProGard 12-0
    19 (3/4")
    30 (100')
    ProGard 16-0
    25 (1")
    30 (100')
    ProGard 20-0
    32 (1-1/4")
    30 (100')
    ProGard 24-0
    38 (1-1/2")
    30 (100')
    ProGard 28-0
    45 (1-3/4")
    30 (100')
    ProGard 32-0
    51 (2")
    30 (100')
    ProGard 36-0
    57 (2-1/4")
    30 (100')
    ProGard 40-0
    64 (2-1/2")
    30 (100')
    ProGard 44-0
    70 (2-3/4")
    30 (100')
    ProGard 48-0
    76 (3")
    30 (100')

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ProGard 24-0
    38
    0 (black)
    30m (100 ft)

    Availability

    ProGard® is available in a range of sizes from 19mm (3/4”) to 76mm (3”) in 1/4” increments.

    Standard color is black.

  • Product Testing

    Performance Data - ProGard®

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    EN6059-302
    Up to +125°C (+260°F)
    Flammability
    30 CFR § Section 18.65
    Pass (MSHA acceptance IC-171/1)
    Low Temperature Flexibility
    BH100-016A
    -70°C (-94°F)
    Abrasion Resistance
    BH100-003A
    Excellent Resistance
    Fluid Resistance
     1:1 Ratio of Antifreeze / Water
    Transmission Fluid
    ASTM reference Fuel B
    Brake Fluid
    Diesel Reference Fuel LRSD-4
    10W30 Motor Oil
    Power Steering Fluid
    3% Salt Water
    Windshield Washer Fluid
    BH100-003A
    Sleeve Visual Inspection Passed
    Passed
    Passed
    Passed
    Passed
    Passed
    Passed
    Passed
    Passed
    Passed
    Dynamic Cut-Through
    ASTM D3032
    Parallel to fill direction
    Parallel to warp direction

    7618
    7606

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
