TWISTTUBE® 2425F

Operating temperature up to +150°C (+302°F)

Excellent abrasion resistance

Color coded yellow for critical assemblies

Self-wrapping design allows for break-outs

Lightweight, flexible & easy to install

FUNCTION:

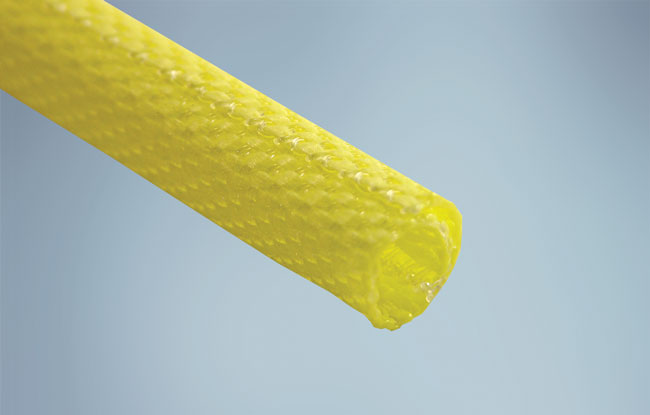

Stacks Image 6847
Open all Close all
  • Product Description
    TwistTube® 2425F is a self-wrapping sleeve designed to provide mechanical protection and acoustical noise suppression. Woven of both monofilament and multifilament polyester yarns the product offers a high level of component protection and is both flexible and lightweight. Colored yellow, TwistTube 2425F is commonly used to identify critical assemblies such as airbags.

    The polyester construction eliminates problems associated with trapped heat and humidity and also eliminates operator skin irritation during assembly.

    TwistTube 2425F offers superior abrasion protection and maintains a circular profile when flexed. Its self-wrapping design allows for quick and easy bundling of wire and cable assemblies. The unique design easily allows for breakouts and can be installed over completed assemblies.
  • Typical Applications

    • Airbag wire harnesses
    • Other applications requiring yellow identification

  • Datasheet Downloads
  • Installation Guides / Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data - TwistTube® 2425F

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hrs at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
