FLEXWRAP® 3500

Operating temperature up to +125°C (+257°F)

Excellent abrasion and cut-through resistance

Outstanding noise suppression

Flexible and conformable

Integrated adhesive for closure and fixation

Wrappable design for easy installation

FUNCTIONS:

Stacks Image 8083
Open all Close all
  • Product Description

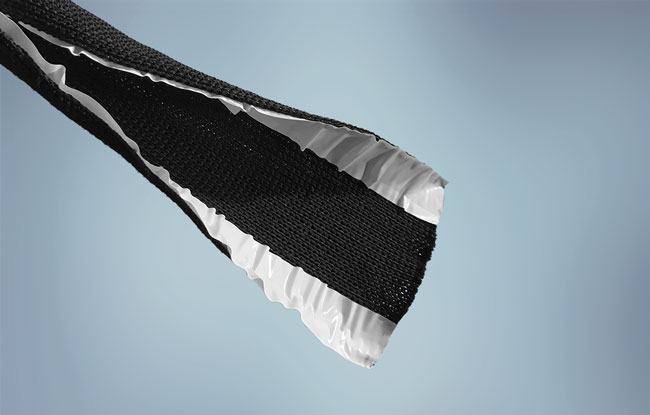

    FlexWrap® 3500 is a wrappable, damage-resistant sleeving designed to provide mechanical protection and acoustical noise suppression. Knit of monofilament and multifilament polyester yarns, the product offers a high level of component protection and is also very flexible.

    FlexWrap 3500 is specially recommended for the bundling and the protection of wire harnesses, cable and tubing assemblies subject to extreme physical conditions.

    The wrappable design of FlexWrap 3500 makes it easy to apply to areas restricted by large end fittings. The two adhesive strips give the double advantage of holding the sleeve in place on the application and being a secure closing system.
  • Typical Applications
    • Body compartment wire harnesses
    • Cable assemblies
    • Tubings
  • Datasheet Downloads

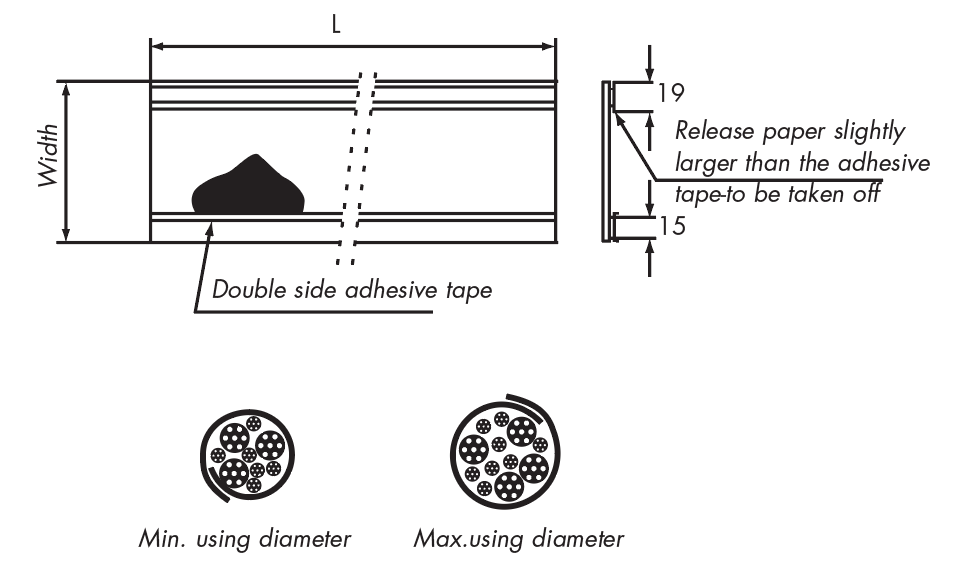

  • Construction
    Stacks Image 8438
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Width
    mm
    Size
    mm
    Recommended Application Range
    mm
    Min Ø
    Max Ø
    FlexWrap 3500 65-0/-
    65
    14
    10
    15
    FlexWrap 3500 85-0/-
    85
    20
    16
    22
    FlexWrap 3500 105-0/-
    105
    24
    21
    26
    FlexWrap 3500 120-0/-
    120
    28
    25
    31
    FlexWrap 3500 150-0/-
    150
    35
    30
    38


    Availability

    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in custom cut lengths only. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Standard color is black. Additional colors are available.

    Please consult your local sales representative for regional packaging details and standards.

  • Product Testing

    Performance Data – FlexWrap® 3500

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    +125°C (+257°F)
    Pass +125°C (+257°F)
    Aging: 240 hrs at +150°C (+302°F)
    ISO 6722
    Neither any visible degradation nor loss of flexibility.
    Shrinkage < 10%
    Cold Bend Test
    STL S21 5101
    -40°C (-40°F)
    Flammability
    FMVSS 302
    D45 1333
    Pass
    Self-extinguishing, Type B
    Rubbing Efficiency
    Rattling Efficiency
    SAE J2192
    SAE J2192
    -18 dB(A)
    -40 dB(A)
    Dynamic Cut-through
    BS G212
    Resistance superior at 3.5 kg
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
