FLATTENIT®

Operating temperature up to +125°C (+257°F)

Maintains wires in flat configuration

Low profile

Lightweight

Provides directional flexibility

Available in multiple widths

FUNCTIONS:

Stacks Image 8083
Open all Close all
  • Product Description

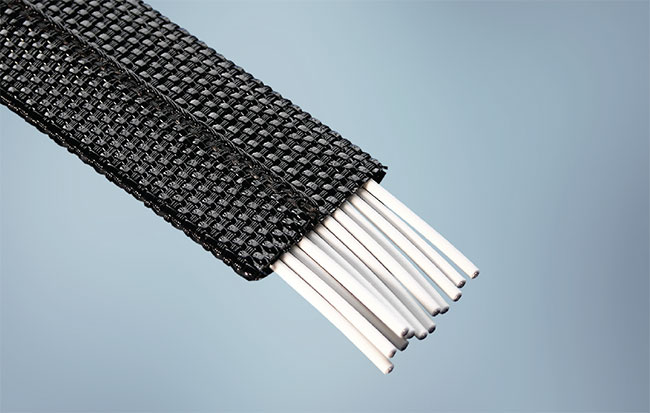

    FlattenIt® is an advanced textile structure engineered to facilitate the installation of round wire bundles into tight or confined spaces. Woven with lightweight thermoplastic yarns, the product maintains wire bundles in a flat, low profile. By forcing wires to lay in a flat position, the bundle size is reduced, allowing routing through confined areas such as under carpet, headliner, under seat and door harness applications. The combination of flexibility, strength and low bulk make FlattenIt an obvious choice for engineers requiring more design freedom than allowed by typical plastic channels.

    Woven with an integral closure mechanism, FlattenIt opens to enable easy installation yet closes securely to maintain integrity of the wire bundle. The closure is designed to allow easy access for inspection, rework or replacement of components. The product’s wrap construction also permits installation onto portions of already installed wire harnesses.
  • Typical Applications

    • Wire Harnesses
    • Under carpet wire assemblies
    • Headliner wire assemblies
    • Flat Wire assemblies
    • Door Harnesses
    • Seat Harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Warp Ends: Polyester Monofilament – 0.25 x 1.03mm diameter
    Fill Yarn: Polyester Monofilament – 0.010 x 0.015" diameter
  • Sizes / Availability
    Availability
    FlattenIt is available in 30mm, 40mm, 50mm, 65mm and 75mm widths. FlattenIt is available in cut lengths only. Please consult with the factory for custom lengths.
  • Product Testing

    Performance Data – FlattenIt®

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    +125°C (+257°F)
    Flame Resistance
    SAE J369
    Classification SE (Self-extinguishing)
    Low Temperature Flexibility
    BH100-016A
    Pass
    Fluid Resistance
    • 5% NaCl Solution
    • 50% Antifreeze Solution
    • Windshield Washer Fluid
    • Automatic Transmission Fluid
    • 10W30 Motor Oil
    • Power Steering Fluid
    • Heavy Duty Brake Fluid
    • ASTM Reference Fuel B
    • Diesel Fuel
    BH100-003B

    Pass
    Pass
    Pass
    Pass
    Pass
    Pass
    Pass
    Pass
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
