REFLEXWRAP™ 1463

Operating temperature up to +200°C (+392°F)

Excellent radiant and convective heat protection

Self-wrapping design allows for break-outs

Lightweight, flexible & easy to install

Fluid and chemical resistant

FUNCTIONS:

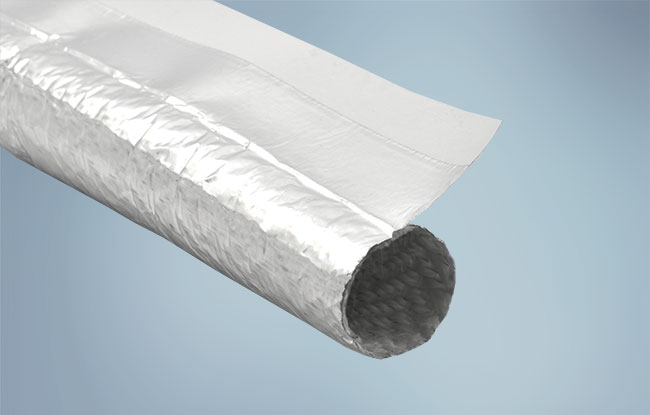

Stacks Image 6847
Open all Close all
  • Product Description
    ReflexWrap™ 1463 is a self-wrapping, reflective sleeve designed to provide thermal protection for both radiant and convective heat applications. Composed of a woven fiberglass base fabric and a lamination of aluminum foil, the product can withstand convective heat soaks up to +200°C (+392°F) and simultaneously protect critical components from radiant or reflected heat.

    The self-wrapping design of ReflexWrap 1463 allows for quick and easy installation with a self-sealing adhesive reinforcement for permanent closure. The adhesive strip acts as a barrier to dirt and fluids while maintaining the full integrity of the finished aluminized sleeve.


    Also available in a closed version (ReflexWrap™ 1463C) for increased installation benefit.
  • Typical Applications

    • Engine compartment applications
    • Wire harnesses
    • Brake & fuel lines
    • Tube, hose & cable assemblies

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Reflective laminate

    Inner Layer: Warp Yarn — Reflective laminate; Fill Yarn — Polyester (PET) monofilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter (mm)
    ReflexWrap 1463 6
    6
    ReflexWrap 1463 8
    8
    ReflexWrap 1463 10
    10
    ReflexWrap 1463 13
    13
    ReflexWrap 1463 16
    16
    ReflexWrap 1463 19
    19
    ReflexWrap 1463 25
    25
    ReflexWrap 1463 29
    29
    ReflexWrap 1463 32
    32
    ReflexWrap 1463 38
    38
    * Based on the product’s closure and or self-locating design, there could be variables that impact size selection. Please consult your local sales representative for recommendations and guidance to ensure proper functionality and optimized performance for your application.

    Availability

    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Please consult your local sales representative for regional packaging details and standards.

  • Installation Guide / Tools
  • Product Testing

    Performance Data – ReflexWrap™ 1463

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +225°C (+200°C rating)
    Pass +200°C (+392°F)
    Thermal Endurance
    No degradation or delamination
    (25mm above a 538°C heat source for 6 hours)
    Pass
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    Tensile Strength - Warp
    ASTM D5035
    Warp: 250 lbf/in. min.
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
