ROUNDIT® EMI DW Cu/Sn

Operating temperature -40ºC to +150ºC (-40ºF to +302ºF)

Self-wrapping design

Fast and easy installation for local EMI protection

Stable construction

EN45545-2

Integrated drain wires for easy grounding without accessories

Ideal for reworking components without disconnecting them

Zero halogen

UL 94 V0 Raw Material

Cu/Sn Metal (EN13602 Quality A tin plated copper)

Good level of EMI Shielding
     – R0 max = 5 mΩ
     – Lt = 1.2 nH/m

FUNCTION:

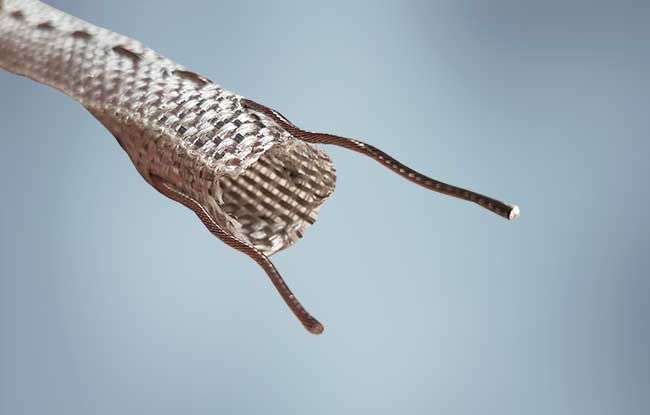

Stacks Image 6847
Open all Close all
  • Product Description

    ROUNDIT® EMI DW Cu/Sn is a wrap-around sleeving designed for high performance EMI shielding of wire and cable bundles. ROUNDIT EMI DW Cu/Sn is manufactured from UL 94 V0 rated PPS monofilaments and tin plated copper wires according to EN 13602 Quality A.

    The self-wrapping feature of ROUNDIT EMI DW Cu/Sn allows for quick and easy installation and removal of the product for assembly and maintenance.

    The textile pattern incorporates drain wires which once pulled out of the construction by a simple manual operation can be crimped to a nearby grounding point.

    The design offers innovative solutions to the protection of breakout areas and also provides ease of removal when inspection or maintenance of cables is necessary.

    The stable construction guarantees the same level of EMI shielding regardless of the diameter on which it is installed within the recommended application range.

    As an additional benefit, ROUNDIT EMI DW Cu/Sn enables users to stock a limited range of sizes to cover a wide range of cable and wire diameters.

    ROUNDIT EMI DW Cu/Sn has many applications in the railway, marine and electronics industries.

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Nominal
    Size
    mm
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Sleeve
    Cross Section
    mm    2
    Drain Wire
    Cross Section
    mm    2
    Standard
    Packaging
    m (ft)
    ROUNDIT EMI DW Cu/Sn 19-8
    19
    13 (1/2")
    19 (3/4")
    4.77
    2 x 1.23
    50 (164')
    ROUNDIT EMI DW Cu/Sn 25-8
    25
    19 (3/4")
    25 (1")
    6.28
    2 x 1.23
    50 (164')
    ROUNDIT EMI DW Cu/Sn 32-8
    32
    25 (1")
    32 (1-1/4")
    8.04
    2 x 1.23
    50 (164')
    ROUNDIT EMI DW Cu/Sn 38-8
    38
    32 (1-1/4")
    38 (1-1/2")
    9.42
    2 x 1.23
    35 (115')
    ROUNDIT EMI DW Cu/Sn 45-8
    45
    38 (1-1/2")
    45 (1-3/4")
    11.04
    2 x 1.23
    35 (115')

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ROUNDIT EMI DW Cu/Sn
    45
    8 (light gray)
    35m
  • Installation Tools

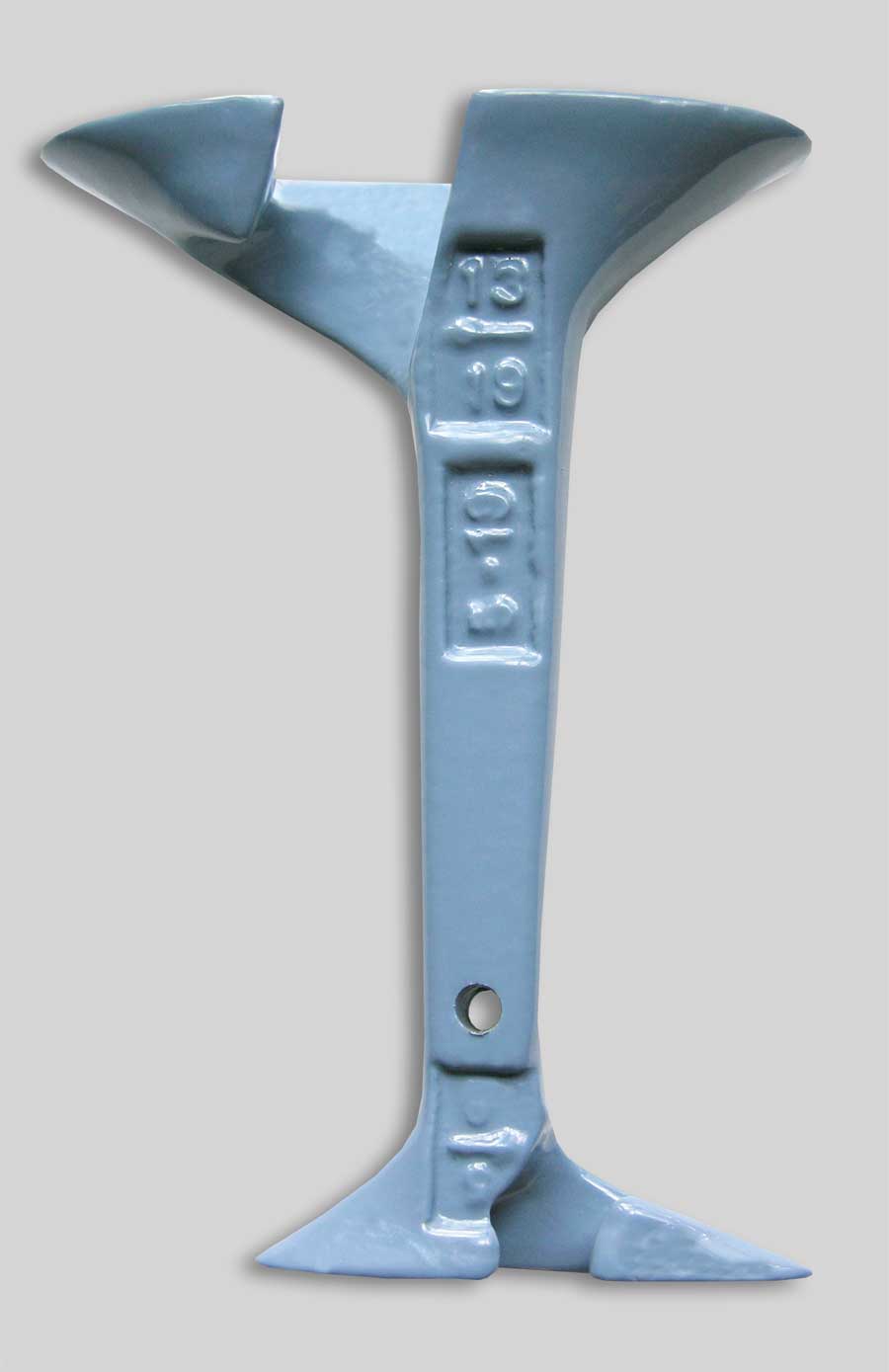

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® EMI DW Cu/Sn

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Operating Temperature Range
    -40ºC to +150ºC (-40°F to +302°F)
    Heat aging
    EN6059-302 (168 hours)
    +150°C (+302°F)
    Fire / smoke / toxicity
    UL 94
    EN 45545-2
    Raw material classified V0
    R22 HL3 R23 HL3
    Tin plated copper
    EN 13602
    Quality A
    CHEMICAL
    Fluid Resistance
       – Hydraulic Fluids NATO.0.156
    EN 6059-303
    Immersion for 24hrs at +70°C
    D47 1924
    No visible degradation after being exposed
    Salt spray resistance
    EN 2591-307 – 96 hours
    Pass
    EMI PERFORMANCE
    Resistance Measurement

    EN 3475-301
    R0 max all sizes = 5 mΩ

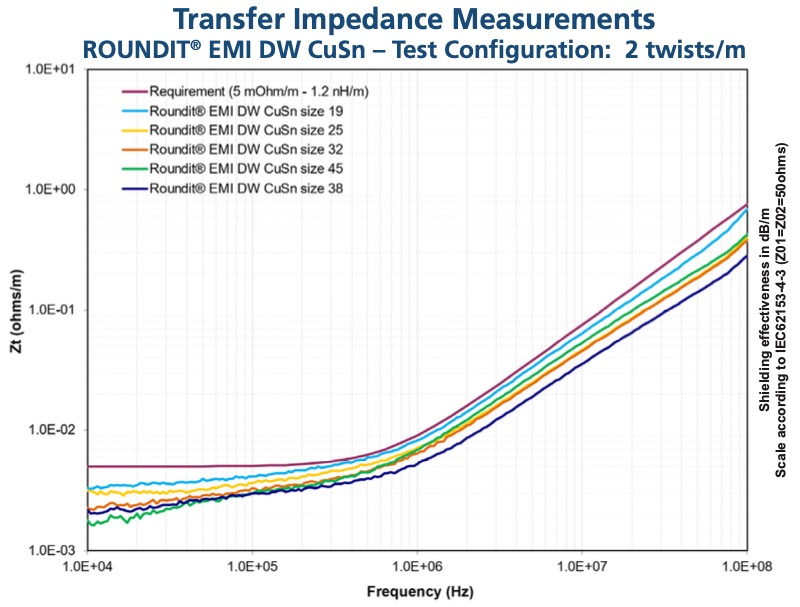

    Transfer Impedance

    IEC 62153-4-3 Triaxial method on straight installation
    Lt = 1.2 nH

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
