THERMOJACKET® R

Continuous long-term heat protection to +504°C (+1000°F)

Low friction

Extremely flexible

Attractive appearance

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

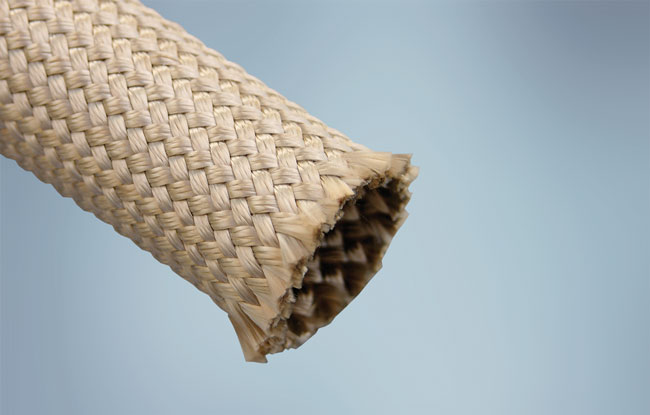

    ThermoJacket® R sleeving is constructed of braided fiberglass. Use of an uncoated fiberglass grade results in slick, cloth-like surfaces both inside and outside of the sleeve attributing to the low friction factor of the product.

    Bentley-Harris® ThermoJacket sleeving provides excellent long-term heat protection for hoses, wire harnesses and cables. ThermoJacket is available in a variety of grades, offering industrial users the option of selecting combination of properties best suited to their specific application.

    The product is capable of withstanding long term and continuous temperatures of up to 540°C and is recommended for applications requiring extreme flexibility.
  • Datasheet Downloads
  • Availability
    ThermoJacket S is available in sizes from 1/4” to 4” in diameter.
  • Standard Sizes

    Product Specifications

    Commercial Part Number
    Diameter Covered
    mm (in)
    Approximate Length of Product
    Needed to Cover 30m (100ft)
    m (ft)
    Standard Packaging
    m (ft)
    ThermoJacket R 4-9
    6 (1/4")
    31 (100')
    60 (200')
    ThermoJacket R 6-9
    10 (3/8")
    31 (100')
    60 (200')
    ThermoJacket R 6-9
    13 (1/2")
    31 (100')
    60 (200')
    ThermoJacket R 8-9
    16 (5/8")
    31 (100')
    60 (200')
    ThermoJacket R 12-9
    19 (3/4")
    31 (100')
    30 (100')
    ThermoJacket R 14-9
    22 (7/8")
    31 (140')
    30 (100')
    ThermoJacket R 16-9
    25 (1")
    31 (100')
    30 (100')
    ThermoJacket R 20-9
    32 (1-1/4")
    31 (100')
    30 (100')
    ThermoJacket R 22-9
    35 (1-3/8")
    31 (100')
    30 (100') - box
    ThermoJacket R 22-9
    38 (1-1/2")
    32 (106')
    30 (100') - box
    ThermoJacket R 22-9
    44 (1-3/4")
    34 (111')
    30 (100') - box
    ThermoJacket R 22-9
    51 (2")
    36 (117')
    30 (100') - box
    ThermoJacket R 22-9
    57 (2-1/4")
    39 (128')
    30 (100') - box
    ThermoJacket R 44-9
    64 (2-1/2")
    32 (104')
    30 (100') - box
    ThermoJacket R 44-9
    70 (2-3/4")
    33 (109')
    30 (100') - box
    ThermoJacket R 44-9
    76 (3")
    35 (116')
    30 (100') - box
    ThermoJacket R 44-9
    83 (3-1/4")
    36 (119')
    30 (100') - box
    ThermoJacket R 44-9
    89 (3-1/2")
    39 (128')
    30 (100') - box
    ThermoJacket R 44-9
    95 (3-3/4")
    42 (139')
    30 (100') - box
    ThermoJacket R 44-9
    102 (4")
    46 (151')
    30 (100') - box

    Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ThermoJacket R
    8
    9 (ivory)
    60m
  • Product Testing

    Performance Data - ThermoJacket® R

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    High Temperature Exposure
    BH100-502 at +500°C (+932°F)
    Pass
    Low Temperature Flexibility
    BH100-016 A at -50°C (-58°F)
    Pass

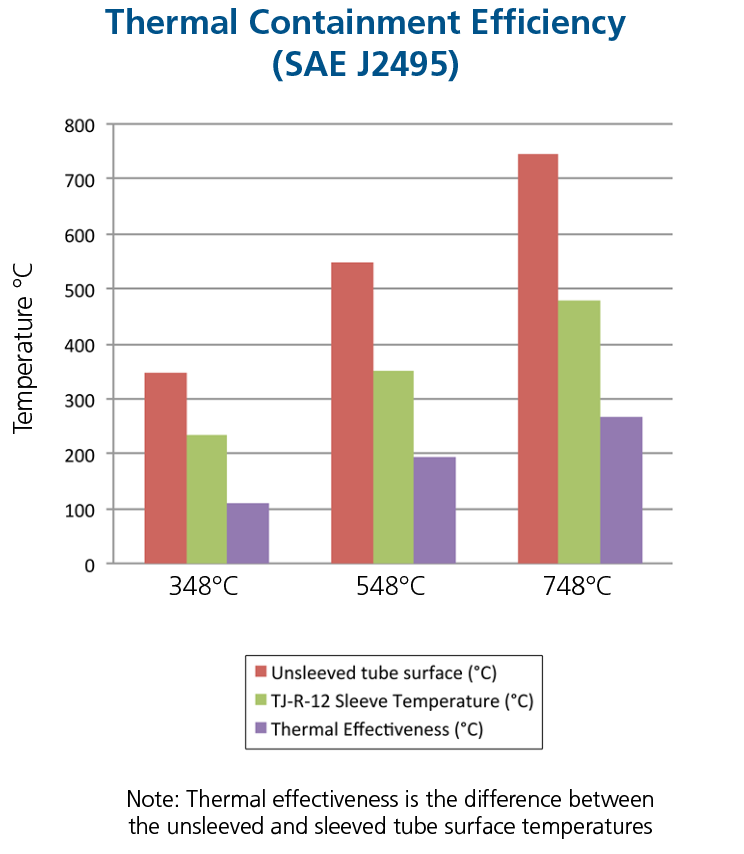

    Thermal Containment Efficiency
    SAE J2495
    See graph below
    Melting Point
    Melting at +1120°C (+2048°F)
    Softening at +730°C (+1346°F)

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
