CLEVAFLEX® AFS-F-AFS

Operating temperature up to +600°C (+1112°F)

Underbody durability

Highly flexible corrugated design

Maintains shape and circular profile when bent

Easy to install with crimpable ends

Tubular and slit forms

Customizable

Fray and fluid resistant

FUNCTIONS:

Stacks Image 6847
Open all Close all
  • Product Description

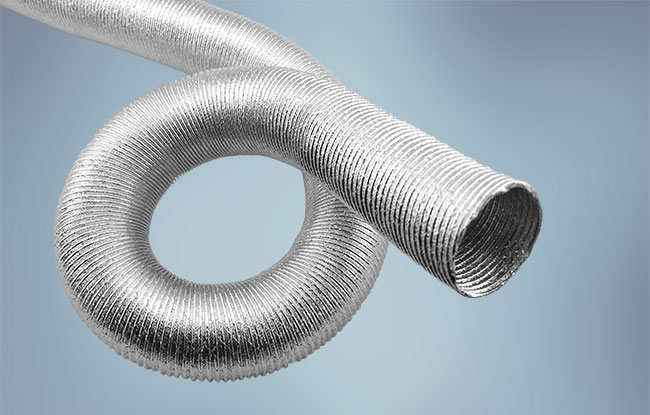

    Clevaflex® AFS-F-AFS is a reflective corrugated tube designed to provide thermal protection for components in radiant heat environments. Its multi-ply construction of aluminum laminated fiberglass coupled with aluminum fiberglass scrim interior and exterior layers allows for good insulation to components requiring stable temperatures for optimum performance efficiency.

    Clevaflex AFS-F-AFS can be used on fuel and hydraulic lines, control cables, and any other critical components in close proximity to engine and exhaust systems. The raw materials and proprietary manufacturing process used to form this layered product allow Clevaflex AFS-F-AFS to withstand high operating temperatures up to +400°C (+752°F) and excursion temperatures up to +600°C (+1112°F) while also providing durability in the high vibration and underbody conditions inherent in automotive applications. The manufacturing process produces a lightweight convoluted sleeve that can be precisely bent and routed without degradation or frayed ends. The highly engineered construction also allows for customization (slits, slots or notches) to increase the ease of installation along with enabling its positioning on the application due to its ability to be crimped at the ends.
  • Typical Applications

    • Fuel and hydraulic lines
    • Power steering hoses
    • Heater / radiator hoses
    • Control cables
    • TOC lines

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Reflective laminate

    Middle Layer: Fiberglass

    Inner Layer: Reflective laminate
  • Product Testing

    Performance Data – Clevaflex® AFS-F-AFS

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +425°C (+400°C rating)
    3,000 hours at +350°C
    24 hours at +600°C
    Pass +400°C (+752°F)
    Pass +350°C (+662°F)
    Pass +600°C (+1112°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    Stone Impingement
    SAE J400
    Pass, no holes in product
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
