SILICONE TAPE 64R

High Level Flame Protection during exposure to +1000C for 10 minutes

Dielectric protection >4.5kV DC Post Flame Exposure of +1000°C for 10 minutes

Self-amalgamating

Compatible with FyreJacket® product line

Easy to install

Zero halogen

Shelf life: Two years after date of manufacture

FUNCTION:

Stacks Image 7145
Stacks Image 7147
Open all Close all
  • Product Description

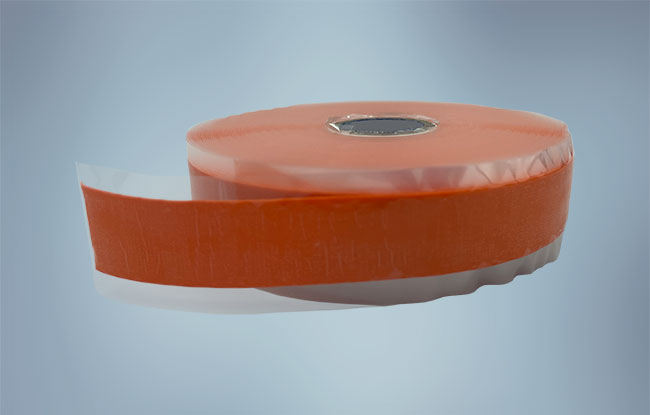

    Systems Protection offers Silicone Tape 64R, orange (RAL 2003 reference) tape with a fiberglass base coated with a self-amalgamating silicone elastomer.

    After several hours at ambient temperature, the surface of this tape sticks together when light pressure is added.

    This tape is used for sealing, connecting and finishing the cut ends of sleeves in critical applications within battery packs.

    Silicone Tape 64R is compatible with FyreJacket® products to provide thermal runaway protection to critical Electrical Systems within battery pack.

  • Typical Applications

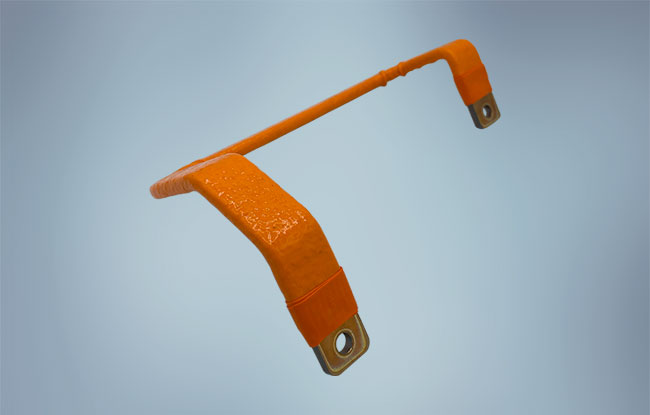

    • Accessory to FyreJacket® to seal ends of sleeve installed on
      • Flexible Busbars
      • Rigid Busbars
      • High voltage cables
    • Connect multiple pieces of FyreJacket®

  • Datasheet Downloads
  • Sizes / Storage

    Product Specifications

    Commercial Part Number
    Thickness mm (in)
    Width mm (in)
    Color
    Includes Glass Tape Substrate
    Standard Packaging m (ft)
    Rolls per Box
    Silicone Tape 64R
    0.5 (0.020”)
    19 (0.75")
    Orange
    Yes
    15 (50')
    15

    Storage

    Tapes should be stored in original boxes, in a cool, dark location, not in close proximity to steam pipes, radiators or other sources of heat, at a temperature no greater than 37°C (98°F).

    Recommendation Time for Perfect Amalgamate

    Temperature (°C)
    Time in Minutes
    250
    15
    200
    20
    150
    35
    127
    80
    120
    120
  • Product Testing

    Performance Data – Silicone Tape 64R

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Thermal Runaway
    SP Internal Test Method
    Resists 10min x 100°C flame
    Elongation at Break
    —
    15%
    Flammability
    UL 94
    V0 Rating
    Dielectric Strength POST Thermal Runaway
    SP Internal Test Method
    > 4.5kV DC
    Fluids Resistance
    SAE J2192
    Pass
    Working Temperature
    —
    -60°C to +250°C (-76°F to +500°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
