FLEXGUARD® 2128

Operating temperature up to +150°C (+302°F)

Excellent abrasion resistance

Excellent flexibility

Easy to install

FUNCTIONS:

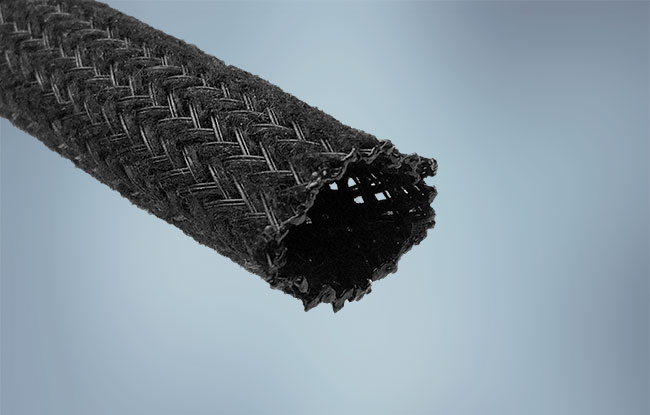

Stacks Image 6847
Open all Close all
  • Product Description
    FlexGuard™ 2128 is a highly flexible, expandable sleeving that is both lightweight and rugged. FlexGuard 2128 is easy to apply and one size fits many applications.

    FlexGuard 2128 provides mechanical protection for various hoses, wire harnesses and other critical components requiring maximum abrasion protection.

    FlexGuard 2128 is a combination of larger polyamide monofilament yarns and polyester monofilament and multifilament yarns. Its specific construction prevents fray and this carefully calculated mix provides an excellent balance of key features including: flexibility, expandability, abrasion resistance. These assets optimize the handling properties of the sleeve and ensure a longer service life for the protected component.
  • Typical Applications

    • Hoses and Tubing
    • Wire harnesses

  • Datasheet Downloads
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Recommended Application
    Range (mm)
    Min Ø
    Max Ø
    FlexGuard 2128 6-0/-
    5
    9
    FlexGuard 2128 8-0/-
    8
    13
    FlexGuard 2128 10-0/-
    9
    14
    FlexGuard 2128 13-0/-
    12
    18
    FlexGuard 2128W 13-0/-
    13
    16
    FlexGuard 2128 16-0/-
    18
    24
    FlexGuard 2128W 16-0/-
    21
    28
    FlexGuard 2128 19-0/-
    31
    39
    FlexGuard 2128W 19-0/-
    19
    25
    FlexGuard 2128 25-0/-
    35
    47
    FlexGuard 2128 38-0/-
    51
    58
  • Product Testing

    Performance Data – FlexGuard® 2128

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -40°C to +150°C (-40°F to +302°F)
    Heat Aging 240hrs @ +175°C
    ISO 6722
    Neither visible degradation nor loss of flexibility
    Shrinkage < 10%
    Acoustic Performances
    SAE J2192
    Rubbing : > 20 dB
    Rattling : > 40 dB
    Shot Blasting
    D47 1924
    > 4 minutes
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:

    • Immersion for 15s at 23°C, followed by a drying period of:
      • 24h at 150°C: motor oil, automatic transmission fluid, manual transmission oil.
      • 24h at 23°C: zinc chloride, brake fluid.

    • Immersion for 48h at 70°C, followed by a drying period of:
      • 24h at 23°C: Urea of clean up Ad blue.

    • Immersion for 24h:
      • At 40°C, followed by a drying period of 4h at 23°C: for gazole, unloaded petrol 98, Std fuel C + 15% methanol, E85 bio ethanol.
      • At 70°C, followed by a drying period of 4h at 23°C, for windscreen washer.
      • At 118°C, by a drying period of 4h at 23°C, for engine coolant.
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
