FYREJACKET® AEROSPACE

Operating temperature: -54ºC to +260ºC (-65ºF to +500ºF)

Fire protection up to +1100°C (+2012°F) (15 min)
+ 800°C (+1472°F) (30 min)

AS1072 Type 2 (Aero Grade)

Fluid resistant to hydraulic fluids and lubricating oil

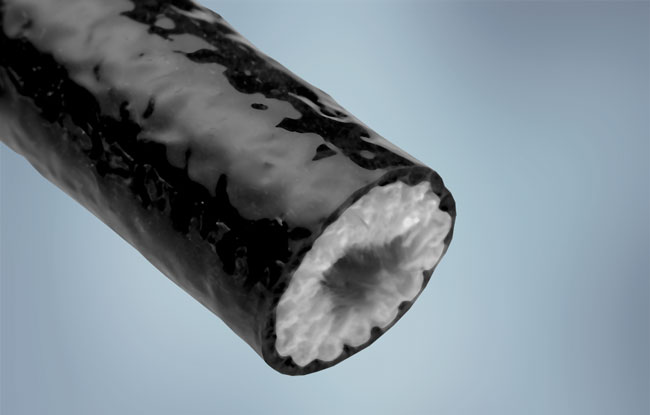

Standard color is red iron oxide; other colors include black, blue, and aluminum

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

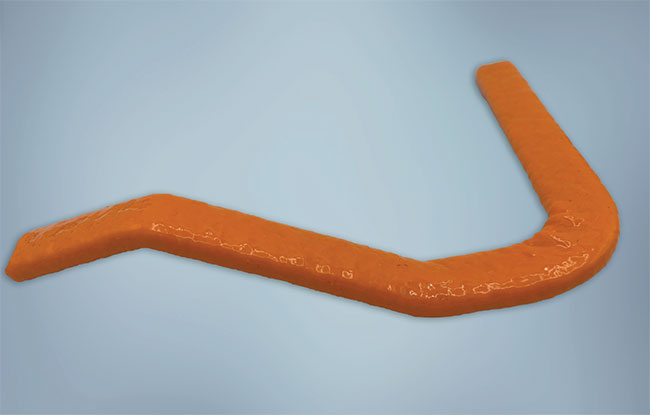

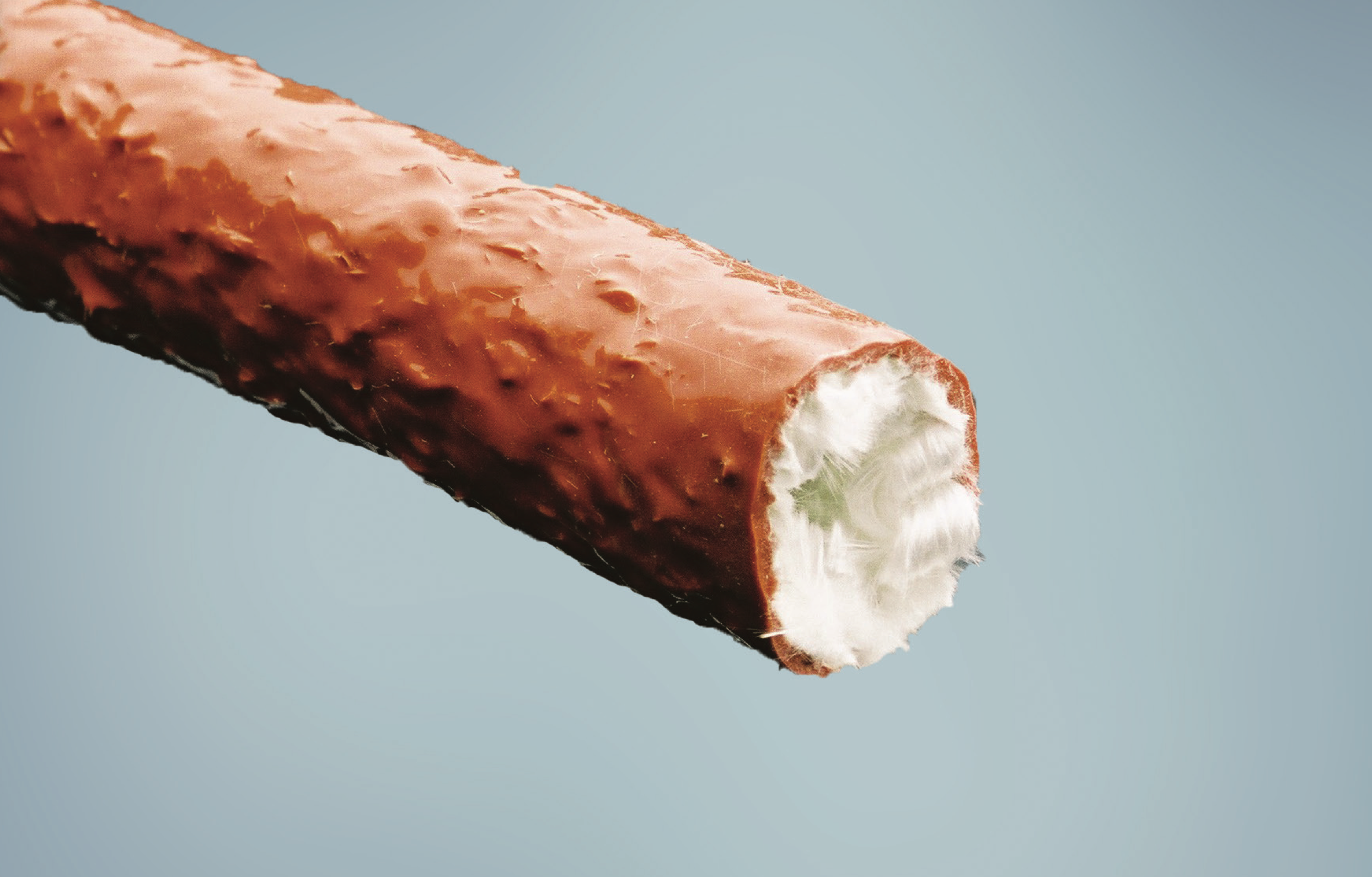

    FyreJacket® Aerospace is a thickwall braided fiberglass sleeving coated with specially compounded silicone rubber. FyreJacket is intended to slide on easily over a variety of hoses and expand readily to go over fittings and couplings. The specially formulated silicone rubber coating has excellent shedding properties.

    FyreJacket is used to protect hoses and hose assemblies, tubing, piping, and cables from exposure up to +260°C (+500°F) and from molten splash and welding sparks. Aerospace grade FyreJacket will withstand short term flame exposure to +1093°C (+2000°F) when installed on a hose assembly qualified to SAE Aerospace Standard 1055*. Aerospace FyreJacket is packaged in random lengths, with minimum lengths no shorter than 15 feet.

    FyreJacket 1650 provides the highest level of protection from Thermal Runaway along with repeatable, reliable and fast installation times. This superior product gives the end user confidence the best solution is in use.
  • Typical Applications

    • Hoses and hose assemblies
    • Tubing
    • Piping
    • Cables

  • Datasheet Downloads
  • Support Documentation

    There are no support documents available at this time. Please contact your sales representative or distribution team for further support.

  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Recommended Application Range
    Min Ø mm (in)
    Max Ø mm (in)
    Maximum Weight
    g/m (lb /ft)
    FyreJacket Aerospace 4-X
    5.3 (0.21)
    7.1 (0.28)
    120 (0.08)
    FyreJacket Aerospace 5-X
    6.9 (0.27)
    8.7 (0.34)
    130 (0.09)
    FyreJacket Aerospace 6-X
    8.6 (0.34)
    10.3 (0.41)
    150 (0.10)
    FyreJacket Aerospace 7-X
    10.4 (0.41)
    11.9 (0.47)
    190 (0.13)
    FyreJacket Aerospace 8-X
    11.7 (0.46)
    13.5 (0.53)
    210 (0.14)
    FyreJacket Aerospace 9-X
    13.2 (0.52)
    15.0 (0.59)
    240 (0.16)
    FyreJacket Aerospace 10-X
    14.7 (0.58)
    16.6 (0.66)
    300 (0.20)
    FyreJacket Aerospace 11-X
    16.5 (0.65)
    19.0 (0.75)
    310 (0.21)
    FyreJacket Aerospace 12-X
    18.0 (0.71)
    20.6 (0.81)
    330 (0.22)
    FyreJacket Aerospace 13-X
    19.5 (0.77)
    22.2 (0.87)
    370 (0.25)
    FyreJacket Aerospace 14-X
    21.3 (0.84)
    23.7 (0.94)
    390 (0.26)
    FyreJacket Aerospace 16-X
    24.3 (0.96)
    26.9 (1.06)
    490 (0.33)
    FyreJacket Aerospace 18-X
    27.4 (1.08)
    30.1 (1.19)
    520 (0.35)
    FyreJacket Aerospace 20-X
    30.7 (1.21)
    33.3 (1.31)
    550 (0.37)
    FyreJacket Aerospace 22-X
    34.0 (1.34)
    36.4 (1.44)
    650 (0.44)
    FyreJacket Aerospace 24-X
    37.1 (1.46)
    39.6 (1.56)
    710 (0.48)
    FyreJacket Aerospace 26-X
    40.1 (1.58)
    42.8 (1.69)
    570 (0.38)
    FyreJacket Aerospace 28-X
    43.4 (1.71)
    46.0 (1.81)
    630 (0.42)
    FyreJacket Aerospace 30-X
    46.6 (1.84)
    49.1 (1.94)
    650 (0.44)
    FyreJacket Aerospace 32-X
    49.8 (1.96)
    52.3 (2.06)
    710 (0.48)
    FyreJacket Aerospace 38-X
    59.3 (2.34)
    61.8 (2.44)
    930 (0.63)
    FyreJacket Aerospace 40-X
    62.5 (2.46)
    65.0 (2.56)
    960 (0.65)
    FyreJacket Aerospace 46-X
    72.0 (2.84)
    74.5 (2.94)
    1140 (0.77)
    FyreJacket Aerospace 48-X
    75.2 (2.96)
    77.7 (3.06)
    1290 (0.87)
    FyreJacket Aerospace 56-X
    87.9 (3.46)
    90.4 (3.56)
    1520 (1.02)
    FyreJacket Aerospace 60-X
    94.2 (3.71)
    96.8 (3.81)
    1620 (1.09)

    X = Color Code: Red Iron Oxide - 12 | Blue - 6 | Aluminium - ALU

  • Installation Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data – FyreJacket® Aerospace

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -54ºC (-65°F) to +260ºC (+500°F)
    Low Temperature Flexibility
    ASTM D-746
    -54°C (-65°F)
    Flammability
    30 CFR § 18.65
    Pass
    Fluid Resistance
    • Phosphate ester type hydraulic fluids
    • Hydraulic Fluid (MIL-H-5606)
    • Jet Fuel (MIL-T-5624)
    • Lubricating Oil (MIL-L-6082)
    • Lubricating Oil (MIL-L-7808)
    • Lubricating Oil (MIL-L-23699)
    • Hydraulic Fluid (MIL-H-83282)
    AS1072

    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
