CLEVAFLEX® Air Handling Ducts

Operating temperature up to +399°C (+750°F)

Flexible

Crush resistant

High strength-to-weight ratio

Fluid resistant

Fray resistance

Abrasion protection

Attractive appearance

FUNCTIONS:

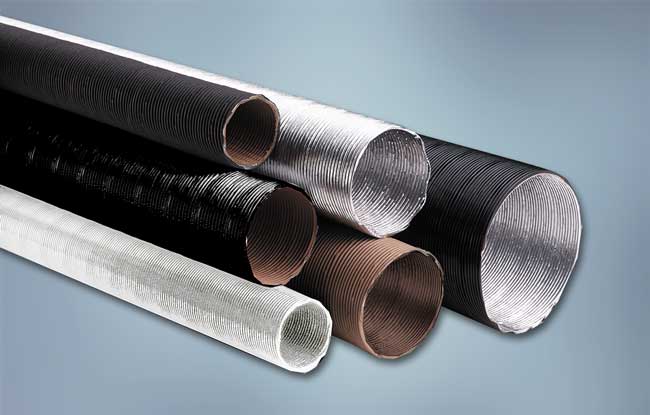

Stacks Image 6847
Open all Close all
  • Product Description
    Clevaflex® Air Handling Ducts are manufactured using multi-ply technology in which dies create convoluted flexible ducts that are permanently bonded with a thermosetting adhesive.

    The proprietary multi-ply manufacturing process produces a strong, flexible, lightweight ducting that provides resistance to heat, fluids, and mechanical abrasion.

    A variety of materials can be selected to match specific applications, including aluminum, aluminum foil scrim, copper, colored Mylar    ®, and natural and black extensible paper.
  • Typical Applications

    • Heating, ventilating, and air conditioning (HVAC)
    • General industrial fume removal
    • Aircraft cabin ventilation
    • Vacuum systems
    • Marine air handling

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Sleeve Types
    Sleeve Construction
    A-A
    Aluminum Foil 1100-H19 - Soft Aluminum Foil 3003-0
    A-P-M
    Aluminum Foil 1100-H19 - Kraft Extensible Paper - Mylar
    P-A-P
    Kraft Extensible Paper - Aluminum Foil 1100-H19 - Kraft Extensible Paper
    P-A-M
    Kraft Extensible Paper - Aluminum Foil 1100-H19 - Mylar
    Additional ClevaFlex Air Handing Ducts can be designed using a variety of materials to meet specific applications. Please contact our sales or engineering offices for material specifications and product drawings.
