REFLECTSNAP® 1426

Operating temperature: -40°C up to +200°C (-40°F up to +392°F)

Wrappable design with closing system

Custom design

Excellent protection against radiant heat

Ease of installation

Component accessibility for inspection and/or re-work

Flexible

Fluid resistant

Conforms to complex component designs

FUNCTIONS:

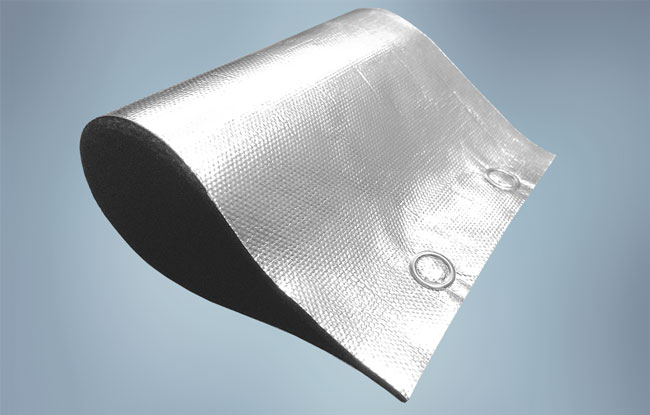

Stacks Image 6847
Open all Close all
  • Product Description
    ReflectSnap® 1426 is a highly flexible aluminized three layer wrappable sleeving used to protect components in high temperature areas.

    Aluminum is used for the outer layer for reflectance of radiant heat. The second layer consists of fiberglass for thermal insulation and a felt is used as a third layer to bring noise reduction.

    ReflectSnap 1426 is manufactured with snaps which allow the product to be installed after components are assembled. It is made according to the specific customer’s design.

    ReflectSnap 1426 is designed to provide superior protection from radiant heat for tubes, hoses, plastic parts and wire harnesses in the engine compartment.
  • Typical Applications

    • Tubes and Hoses
    • Fuel and brake lines
    • Wire harnesses
    •     Other engine components

  • Datasheet Downloads
  • Product Testing

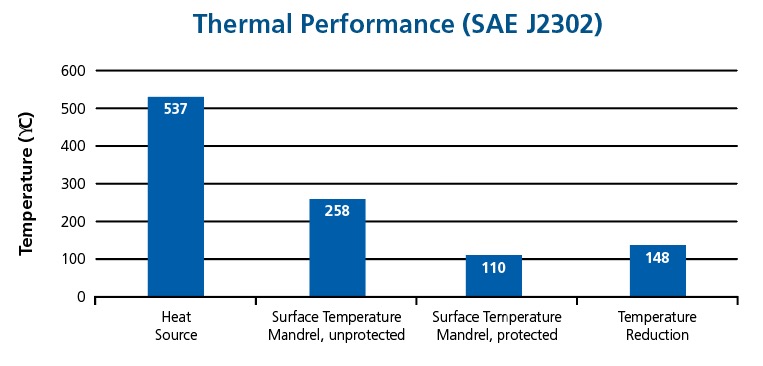

    Performance Data – ReflectSnap® 1426

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    -40°C to +200°C (-40°F to +392°F)
    Heat Aging: 240hrs at +225°C
    ISO 6722
    No visible degradation or delamination
    Flammability
    FMVSS 302
    D45 1333
    Pass
    Self extinguishing Type B
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:

    • Immersion for 15s at 23°C, followed by a drying period of:
      • 24h at 150°C: motor oil, automatic transmission fluid, manual transmission oil.
      • 24h at 23°C: zinc chloride, brake fluid.

    • Immersion for 48h at 70°C, followed by a drying period of:
      • 24h at 23°C: Urea of clean up Ad blue.

    • Immersion for 24h:
      • At 40°C, followed by a drying period of 4h at 23°C: for gazole, unloaded petrol 98, Std fuel C + 15% methanol, E85 bio ethanol.
      • At 70°C, followed by a drying period of 4h at 23°C, for windscreen washer.
      • At 118°C, by a drying period of 4h at 23°C, for engine coolant.
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
