REFLECTWRAP® 1492

Operating temperature up to +150°C (+302°F)

Excellent protection against radiant heat

Easy to apply, wrap-around construction

Low profile

High flexibility

Extremely lightweight

Fluid and chemical resisitant

Attractive appearance

FUNCTIONS:

Stacks Image 6847
Open all Close all
  • Product Description

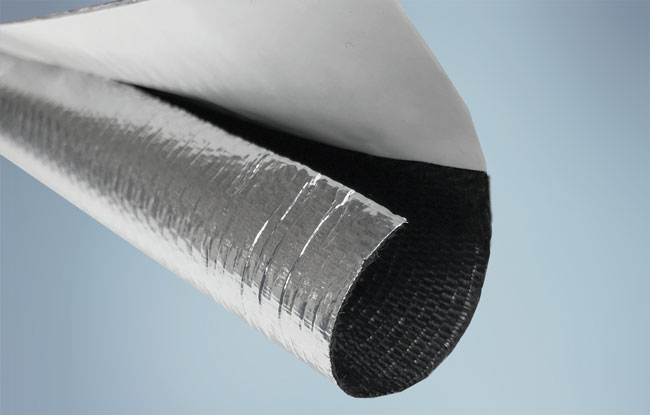

    ReflectWrap® 1492 is a wrappable, aluminized sleeve that provides excellent protection against radiant heat sources for critical engine and exhaust system components. This unique design offers ease of installation in closed-end applications as well as resistance to extreme heat and fluids.

    Featuring a woven construction combining lightweight polyester monofilaments and texturized multifilaments, ReflectWrap 1492 has an outer aluminum foil laminate. Permanent closure is achieved with a self-adhesive strip. The adhesive seal acts as a resistant barrier to dirt and fluids while maintaining the full integrity of the finished aluminized protective sleeve. These features optimize the overall efficiency of the sleeve and assure longer service life for the protected component.
  • Typical Applications

    • Battery Cables
    • Chassis Harness
    • Jumper Harness
    • Cable Assemblies
    • Engine Compartment Hoses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Aluminum

    Inner Layer: Warp Yarn — Polyester (PET) monofilament; Fill Yarn — Polyester (PET) multifilament
  • Sizes / Availability
    Availability

    ReflectWrap 1492 is available in a range of sizes and cut to your specification. Color is aluminum (silver). Please contact your sales representative for availability.
  • Product Testing

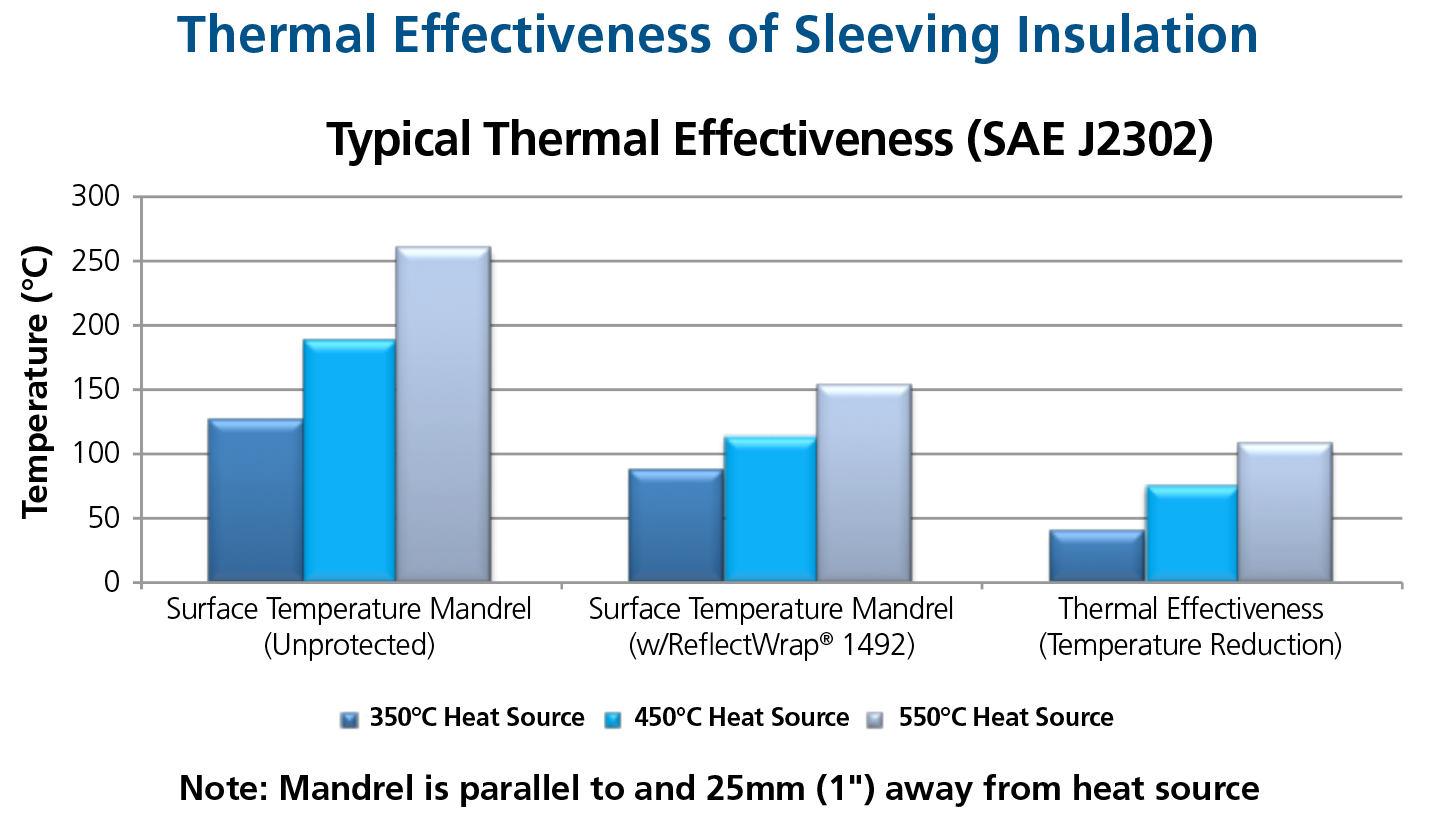

    Performance Data – ReflectWrap® 1492

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Thermal Endurance
    BH100-503
    No degradation or delamination
    (25mm above a +538°C heat source for 6 hours)
    Low Temperature Flexibility
    BH100-016A
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
