THERM-L-GARD™ B

Operating temperature +150°C (+302°F) or +200°C (+392°F)

Excellent thermal protection

Braid "push back" allows easy installation

Maintains a round profile against radiant heat

Secure connection

FUNCTIONS:

Stacks Image 6847

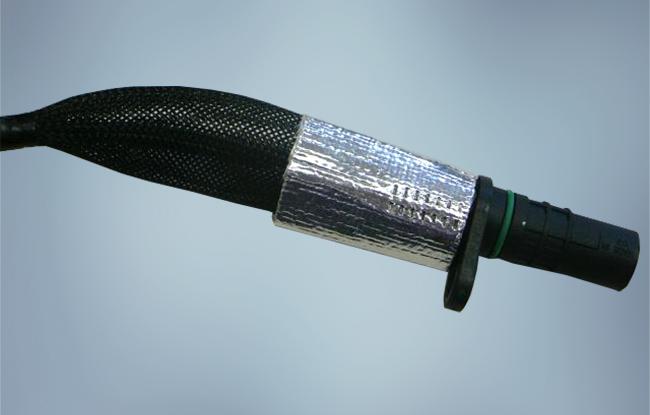

Stacks Image 8166

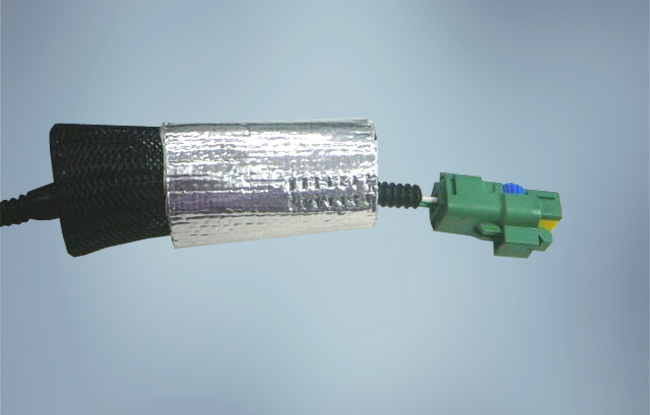

Stacks Image 8168
Open all Close all
  • Product Description
    Therm-L-Gard™ B is an engineered solution designed to protect sensors and connectors in radiant heat environments.

    The round profile of the reflective portion offers an air gap that maximizes the level of thermal protection while the braid allows easy installation and maintenance thanks to its “pushed back” feature. Therm-L-Gard B offers the unique benefit to allow access to the connector even after end connections are made thanks to the elastic nature of the braid which returns to its original position when released. As an additional benefit, the braid also provides mechanical protection to the wire harness.

    Therm-L-Gard B is available in two configurations: the standard product has an operating temperature of 150°C while the high temperature version, Therm-L-Gard B HT, reaches +200°C.
  • Typical Applications

    • Sensors
    • Connectors

  • Datasheet Downloads
  • Availability
    Therm-L-Gard B and Therm-L-Gard B HT are available in various configurations. Please consult the factory for specifications.

    Packaging is in accordance with GALIA Standard (ODETTE).

    Standard color is aluminum.

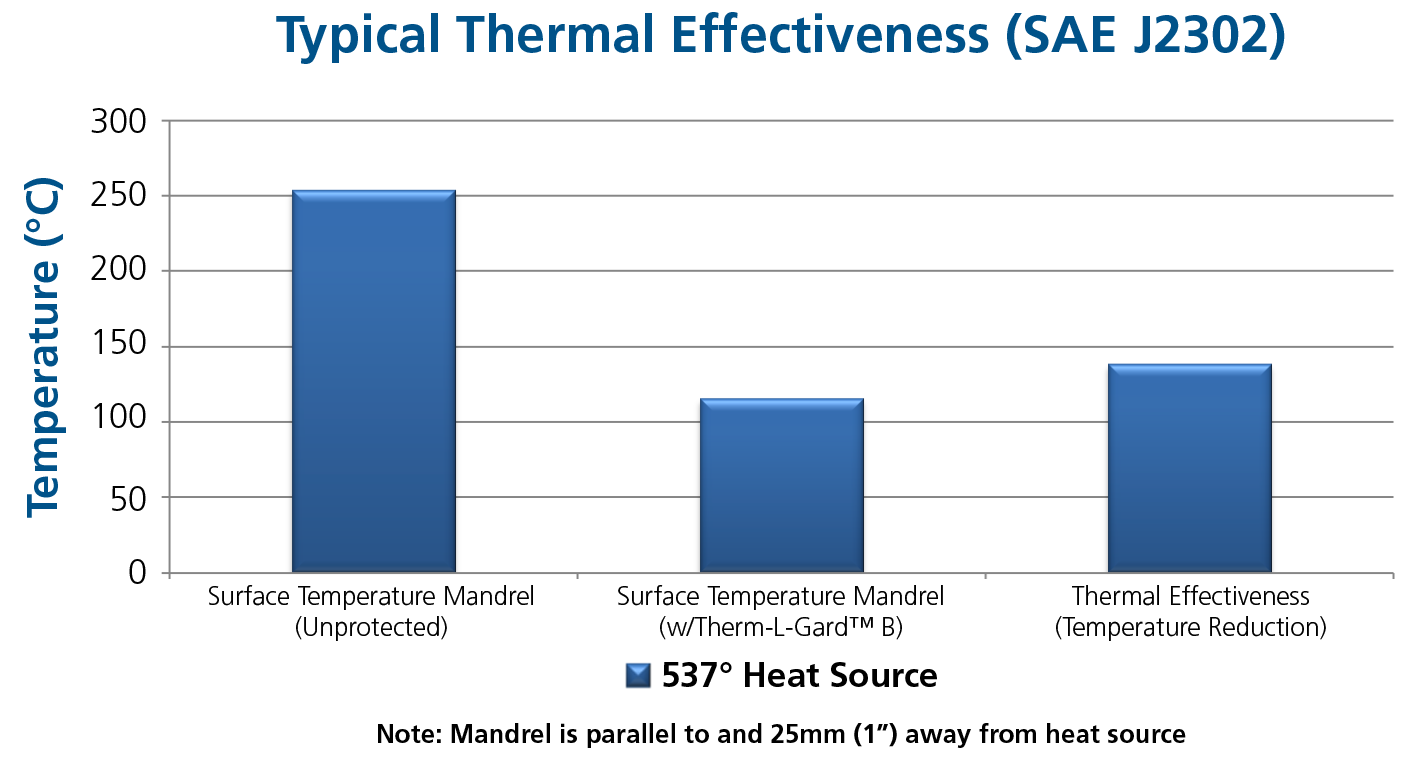

  • Product Testing

    Performance Data – Therm-L-Gard™ B

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    +150°C (+302°F) - Therm-L-Gard B
    +200°C (+392°F) -     Therm-L-Gard B HT
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:

    • Immersion for 15s at +22°C, followed by a drying period of:
      • 24h at 150°C: motor oil, protection oil, automatic transmission fluid, mineral hydraulic fluid, zinc chloride (drying at +23°C).

    • Immersion for 24h at +70°C (in vapor) followed by a drying period of:
      • 4hrs at +23°C: battery fluid.

    • Immersion for 24hrs at +70°C: windscreen washer and at +118°C: engine coolant

    • Immersion for 24hrs at +40°C: standard fuel, unleaded petrol 98, diesel
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
