NYLOGARD® 2454

Operating temperature up to +150°C (+302°F)

Superior abrasion resistance

Excellent cut-through resistance

High density tubular construction

Fluid resistant

Custom printing available

FUNCTIONS:

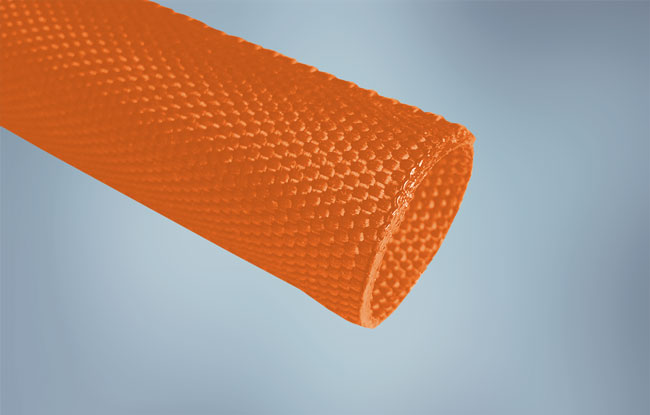

Stacks Image 8083
Click here to also explore NyloGard® 2455
Open all Close all
  • Product Description
    NyloGard® 2454 is a highly durable, tightly woven sleeve constructed from high denier polyester yarns. NyloGard 2454 provides superior abrasion and cut-through protection for hoses, cables and wires for extreme applications and in rugged environments.

    NyloGard 2454’s dense construction provides maximum coverage. These properties extend the service life of the protected component and offer a cost savings associated with decreased component replacements.
  • Typical Applications

    • Wire Harnesses
    • Tube, Hose & Cable Assemblies
    • Fluid Transport Lines
    • High Voltage Applications (Orange)

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Warp Yarn: Polyester (PET) multifilament

    Fill Yarn: Polyester (PET) multifilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter (mm)
    NyloGard 2454 8
    8
    NyloGard 2454 11
    11
    NyloGard 2454 13
    13
    NyloGard 2454 16
    16
    NyloGard 2454 19
    19
    NyloGard 2454 23
    25
    NyloGard 2454 25
    25
    * Application based variables will influence the sleeve size required. Routing geometry and application type may present installation and fit challenges that should be considered. Proper sleeve sizing should be confirmed by the end user. Please consult your local sales representative for recommendations and support.
  • Product Testing

    Performance Data – NyloGard® 2454

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAEJ2192
    Pass -70°C (-94°F)
    Fluid Resistance
    SAE J2192
    Pass
    Dynamic Cut-Through Resistance
    ASTM D3032
    Parallel to fill direction
    Parallel to warp direction

    1,450 N avg
    1,450 N avg
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
