EXPANDO® B150

Operating temperature from -55ºC to +150ºC (-67ºF to +302ºF)

Low toxicity and smoke generation

Highly expandable design for bundling of wire harnesses over short and long lengths

Stable construction once expanded

Time reduction over standard tying methods

Low profile solution

EN45545-2

Allows visualization of color coding of cables underneath

Does not trap heat or humidity

Rot-free

FUNCTION:

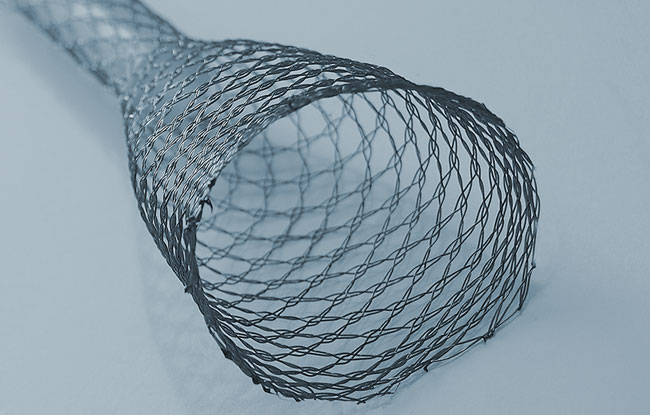

Stacks Image 6847
Open all Close all
  • Product Description
    Expando® B150 is a highly expandable sleeve designed for bundling of wire harnesses. Rated to +150°C (+302°F), Expando B150 meets the standard of the railway industry in terms of flammability.

    The design of Expando B150 allows the product to remain stable once expanded and its outstanding expansion range allows it to cover wire harness definitions from 5 to 55 mm with only 3 sizes. A special tool has been designed in 2 choices of lengths to speed-up installation over small and long lengths.

    The inherent properties of the raw materials used give Expando B150 low levels of flammability, toxicity and smoke generation.

    Expando B150 is used in the railway industry for its outstanding properties in extreme environments and its quick installation compared to standard tying methods. Expando B150 should be considered for railway applications.
  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Maximum Opening Diameter
    mm    2 (in)
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    Expando B150 10-X
    5 (3/16")
    18 (45/64")
    25 (1")
    2.2 (0.0015)
    1200 (3937')
    Expando B150 20-X
    15 (19/32")
    28 (1-3/32")
    38 (1-1/2")
    3.5 (0.0023)
    900 (2953')
    Expando B150 40-X
    25 (1")
    55 (2-5/32")
    60 (2-3/8")
    5.1 (0.0034)
    700 (2297')

    NOTE: X = 0 (black)

    Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    Expando B150
    10
    0 (black)
    1200m (3937 ft)
  • Product Testing

    Performance Data - Expando® B150

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Operating Temperature Range
    -55ºC to +150ºC
    (-67°F to +302°F)
    Fire / Smoke / Toxicity
    EN 45545-2
    R22 HL3 R23 HL3
    MECHANICAL
    Vibration
    ASTM D4728
    No damage to cables
    CHEMICAL
    Fluid Resistance
    – Hydraulic fluids: NATO.0.156
    EN 6059-303
    Immersion for 24hrs at +70°C (+158°F)
    No visible degradation or alteration
    after being exposed.

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
