SHRINKGARD™ 2800

Operating temperature range: -40°C to +110°C (-40°F to +230°F)

Good abrasion resistance

Heat shrinkable tubular construction for self-location

High conformity delivers aesthetic appearance

Lightweight, flexible & easy to install

Minimal aggression towards neighboring components

FUNCTIONS:

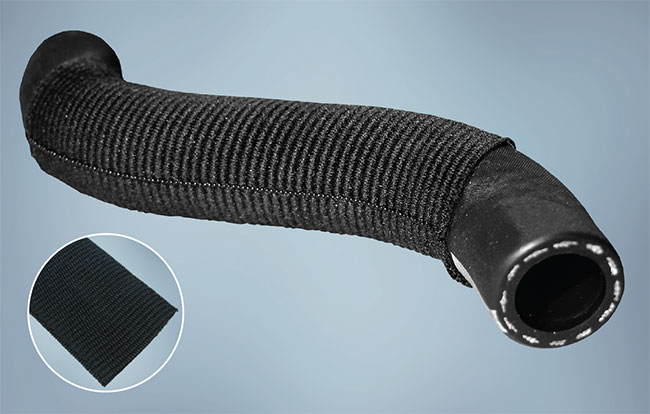

Stacks Image 6847
Open all Close all
  • Product Description
    ShrinkGard™ 2800 is a highly flexible, woven sleeve constructed of polyester and polyethylene that provides good abrasion resistance for rubber hoses and tubing applications. The product offers a shrinkage up to 60% which allows ShrinkGard 2800 to accommodate a variety of diameters and sizes. The soft construction of ShrinkGard 2800 is ideal when handling the product during installation.

    The heat-shrinkable design firmly grips to the component with a minimum shrink temperature of +80ºC and a minimum full recovery temperature of +110ºC.

    A treatment made on ShrinkGard 2800 keeps the ends of the sleeve stable after shrinkage.

    ShrinkGard 2800 can easily be cut with standard industrial cutting equipment and is used primarily in the automotive industry to protect rubber hoses.
  • Typical Applications

    • Rubber Hoses
    • Tubing

  • Datasheet Downloads
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Size of the Sleeve
    Before Shrinkage
    (mm)
    Ideal Size of Sleeve
    After Shrinkage
    (mm)
    Recommended Application
    Range After Shrinkage*
    Min (mm)
    Max (mm)
    ShrinkGard 2800 12-0/-
    12
    6
    5
    8
    ShrinkGard 2800 20-0/-
    20
    10
    8
    13
    ShrinkGard 2800 25-0/-
    25
    12
    10
    16
    ShrinkGard 2800 30-0/-
    30
    15
    12
    20
    ShrinkGard 2800 34-0/-
    34
    17
    14
    22
    ShrinkGard 2800 40-0/-
    40
    20
    16
    26
    ShrinkGard 2800 50-0/-
    50
    25
    20
    33
    ShrinkGard 2800 60-0/-
    60
    30
    24
    39
    ShrinkGard 2800 70-0/-
    70
    35
    28
    46
    ShrinkGard 2800 80-0/-
    80
    40
    32
    52
    ShrinkGard 2800 100-0/-
    100
    50
    40
    65
    ShrinkGard 2800 120-0/-
    115
    58
    50
    75
    * Based on the product’s shrinkable construction, there could be variables that impact size selection. Please follow sizing chart above in order to ensure proper functionality and optimized performance for your application. Proper sleeve sizing is at the discretion of the end user. Please consult your local sales representative for recommendations and support.
  • Construction and Typical Product Characteristics
    Warp Yarn: Polyester (PET) multifilament

    Fill Yarn: Polyethylene (PE) monofilament
  • Product Testing

    Performance Data – ShrinkGard™ 2800

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    3000 hours at +110°C (+110°C rating)
    Pass +110ºC (+230°F)
    Minimum Full Recovery Temperature
    +110ºC (+230°F)
    Abrasion Resistance
    D44 1959 STL 21 51 01
    Pass
    Flammability
    FMVSS 302
    Pass
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:

    • Immersion for 15s at 23°C, followed by a drying period of:
      • 24h at 150°C: motor oil, automatic transmission fluid, manual transmission oil.
      • 24h at 23°C: zinc chloride, brake fluid.

    • Immersion for 48h at 70°C, followed by a drying period of:
      • 24h at 23°C: Urea of clean up Ad blue.

    • Immersion for 24h:
      • At 40°C, followed by a drying period of 4h at 23°C: for gazole, unloaded petrol 98, Std fuel C + 15% methanol, E85 bio ethanol.
      • At 70°C, followed by a drying period of 4h at 23°C, for windscreen washer.
      • At 118°C, by a drying period of 4h at 23°C, for engine coolant.
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
