BEN-HAR™ 1151-FRB GRADE B

Operating temperature from -70ºC to +200ºC (-94ºF to +392ºF)

Grade B (4,000V)

Meets VW-1 (sizes up to 1")

FAR Part 25

DMS 2109

NEMA 5

Expands 25% or more in diameter without damage

Available in blue/gray color only

FUNCTION:

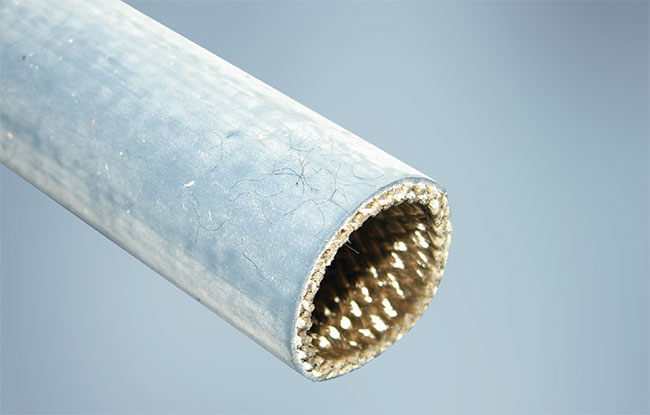

Stacks Image 6847
Open all Close all
  • Product Description
    Ben-Har™ 1151-FRB Grade B is a rugged, flame-retardant, silicone rubber coated sleeving that provides excellent cut-through and abrasion protection for wiring systems in applications with temperatures ranging from -70ºC to +200ºC. Because the specially formulated silicone rubber is extrusion coated over the non-combustible fiberglass braid, it results in a reinforced sleeving that is superior to ordinary dip-coated sleeving and unreinforced rubber or plastic tubing.

    The improved flame-retardant characteristics mean that 1151-FRB Grade B is difficult to ignite, has a very slow rate of burn travel and self-extinguishes promptly - even after bottom ignition of a vertical specimen. 1151-FRB Grade B is used to separate/isolate/insulate critical circuits and conductors, as a thermal barrier for limited periods, as identification marking, or as a wire bundling mechanism. It is ideal for protecting wiring systems in modern jet aircraft against abrasion, impact, harmful drip, splash or spray. Qualified by major U.S. airframe manufacturers, 1151-FRB Grade B meets all of the performance requirements of DMS 2109.

    Ben-Har 1151-FRB Grade B is resistant to hydraulic fluids (including Skydrol LD), jet fuels, inorganic acids, and alkalis. Some swelling occurs in aromatic hydrocarbons and chlorinated solvents.
  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    Ben-Har 1151-FRB Grade B 2.4-6
    2.3 (0.091)
    2.6 (0.101)
    9.8 (0.0066)
    305 (1000)
    Ben-Har 1151-FRB Grade B 3.4-6
    3.2 (0.125)
    3.6 (0.140)
    17.9 (0.0120)
    305 (1000)
    Ben-Har 1151-FRB Grade B 4-6
    3.9 (0.152)
    4.1 (0.161)
    21.7 (0.0146)
    305 (1000)
    Ben-Har 1151-FRB Grade B 4.2-6
    4.1 (0.162)
    4.5 (0.178)
    22.3 (0.015)
    152 (500)
    Ben-Har 1151-FRB Grade B 4.7-6
    4.6 (0.182)
    5.0 (0.198)
    22.3 (0.015)
    152 (500)
    Ben-Har 1151-FRB Grade B 5.3-6
    5.2 (0.204)
    5.7 (0.224)
    25.3 (0.017)
    152 (500)
    Ben-Har 1151-FRB Grade B 6.7-6
    6.4 (0.250)
    6.9 (0.270)
    34.2 (0.023)
    76 (250)
    Ben-Har 1151-FRB Grade B 8-6
    7.9 (0.312)
    8.3 (0.328)
    53.6 (0.036)
    76 (250)
    Ben-Har 1151-FRB Grade B 10-6
    9.5 (0.375)
    10.1 (0.397)
    55.1 (0.037)
    76 (250)
    Ben-Har 1151-FRB Grade B 13-6
    12.7 (0.500)
    13.3 (0.524)
    77.4 (0.052)
    38 (125)
    Ben-Har 1151-FRB Grade B 16-6
    15.9 (0.625)
    16.6 (0.655)
    135.5 (0.091)
    15 (50)
    Ben-Har 1151-FRB Grade B 19-6
    19.1 (0.750)
    20.0 (0.786)
    137.0 (0.092)
    15 (50)
    Ben-Har 1151-FRB Grade B 25-6
    25.4 (1.000)
    26.3 (1.036)
    157.8 (0.106)
    15.5 (51) *
    Ben-Har 1151-FRB Grade B 32-6
    31.8 (1.250)
    32.8 (1.290)
    204.0 (0.137)
    15.5 (51)
    Ben-Har 1151-FRB Grade B 38-6
    38.1 (1.500)
    39.0 (1.536)
    208.5 (0.140)
    15.5 (51)
    Ben-Har 1151-FRB Grade B 51-6
    50.8 (2.000)
    51.8 (2.040)
    297.8 (0.200)
    15.5 (51)
    Ben-Har 1151-FRB Grade B 76-6
    76.2 (3.000)
    78.1 (3.075)
    685.0 (0.460)
    15.5 (51)

    * NOTE:** Sizes 25 mm (1") and above are supplied in 3 ft. lengths.

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    Ben-Har 1151-FRB Grade B
    19
    6 (blue/gray)
    15m
  • Product Testing

    Performance Data - Ben-Har™ 1151-FRB Grade B

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature Range
    -70ºC (-94°F) to +200ºC (+392°F)
    Hardness, durometer
    ASTM D240, Shore A
    50 +/- 5
    Fungus Resistance
    MIL-I-631
    No Growth
    Smoke Density
    ASTM E-662 (4 minutes)
    DS < 70
    Dielectric Breakdown
    ASTM D149
    4 kV Minimum
    Flammability
    FAR Part 25 (12 seconds, vertical)
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
