THERMFLEX® 1210

Operating temperature up to +540°C (+1004°F)

Excellent thermal insulation

Flame retardant

Fluid and chemical resistant

Lightweight and low profile

Tubular shape

FUNCTION:

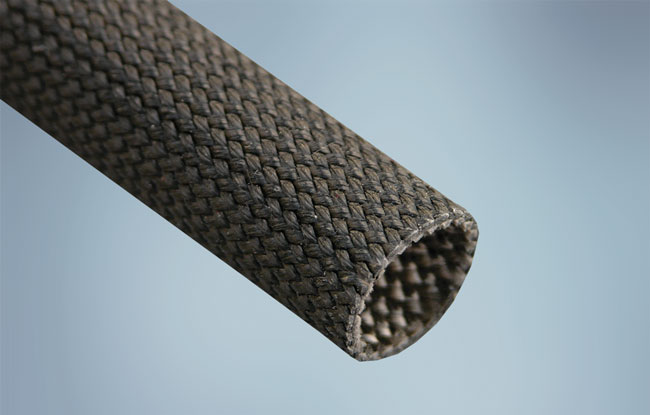

Stacks Image 6847
Open all Close all
  • Product Description
    ThermFlex® 1210 is a heat treated and saturated sleeve that provides superior protection against conducted and convective heat. Constructed of braided fiberglass, ThermFlex 1210 is used in high temperature areas to provide superior insulation to components that must maintain elevated temperatures to maximize performance efficiency. ThermFlex 1210’s saturated coating aides in the handling and installation of the product while also providing an increased level of durability compared to uncoated fiberglass sleeving.

    As an insulator, ThermFlex 1210 is used on Exhaust Gas Recirculation (EGR) tubes, thermactor tubes and exhaust system components to provide maximum fuel efficiency and lowered emissions.

    ThermFlex 1210 is also used on wire harnesses, fuel and hydraulic lines, cables and hoses in close proximity to engines and exhaust systems. Its braided construction allows excellent flexibility in temperatures as low as -70ºC (-94ºF).
  • Typical Applications

    • Wire harnesses
    • Fuel and hydraulic lines
    • Cables and hoses near engines and exhaust systems
    • Exhaust Gas Recirculation (EGR) tubes
    • Exhaust system component protection

  • Datasheet Downloads
  • Sizes / Availability


    Availability

    ThermFlex 1224 is available in a range of sizes and lengths designed to meet specific application requirements. Please contact your sales representative for availability.

  • Product Testing

    Performance Data - ThermFlex® 1224

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Thermal Endurance
    BH100-521
    Pass - No degradation
    Cold / Wet Endurance
    BH100-522
    Pass - No degradation
    Thermal Containment
    BH100-509
    See table below
    Flammability
    SAE J369
    D45 1333
    Does not ignite
    Type A - No ignition
    Flammability with Oil Contamination
    BH100-524 (ref. SAE J369)
    Self-extinguishing
    Vibration
    BH100-507
    Retains structural integrity
    CHEMICAL
    Fluid Resistance
    BH100-003F

    50/50 Antifreeze/Distilled Water
    5% NaCl
    Transmission Fluid
    Diesel Fluid LSRD-4
    ASTM Reference Fuel C
    SAE 5W30
    Brake Fluid SAE RM-66
    Power Steering Fluid
    Windshield Washer Fluid
    No degradation or loss of flexibility
    Salt Spray
    ASTM G85
    Pass
    RESISTANCE TO WASHING
    Power Washing Endurance
    BH100-539
    No degradation

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.

    Thermal Containment Test per BH100-509 on ThermFlex® 1224 2" (51mm)
    Exhaust Pipe Parameters
    Gas Inlet Temperature
    +832°C
    Pipe Surface Temperature (w/ThermoJacket E)
    +649°C
    Sleeve Surface Temperature (w/ThermoJacket E)
    +387°C
    Results
    Thermal Containment (Temperature Reduction)
    +262°C
    Temperature at 10mm away from sleeve (ambient)
    +137°C
    Temperature at 25mm away from sleeve (ambient)
    +106°C
    Temperature at 100mm away from sleeve (ambient)
    +76°C
