FLEXFIT® 2010

Operating temperature up to +200°C (+392°F)

Low temperature flexibility to -70°C (-94°F)

Does not trap heat or humidity

Self-fitting over many shapes and sizes

Very resistant to automatic transmission fluid

FUNCTIONS:

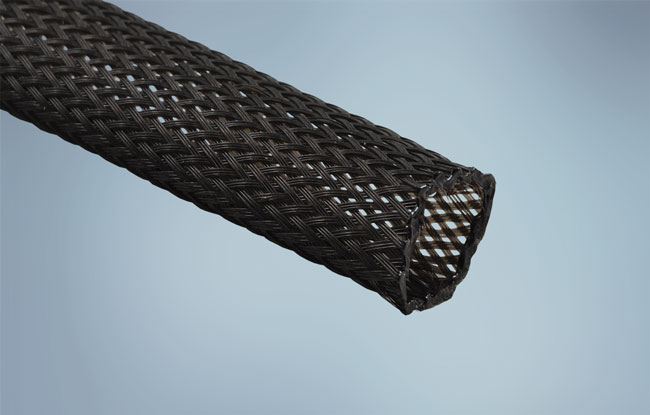

Stacks Image 8083
Open all Close all
  • Product Description
    FlexFit® 2010 is a tough, lightweight oversleeve designed to protect cables assemblies, hoses and wire harnesses from chafing, cutting and abrading. The open weave construction enables each size to expand to fit several application shapes and sizes. The construction also makes it highly flexible and resistant to trapping water, heat and humidity.

    Braided with PPS (polyphenylene sulfide) monofilaments, the sleeve is designed to provide mechanical protection in environments up to +200°C (+392°F). FlexFit 2010 is used in the automotive industry because of its outstanding property retention in extreme environments. It is one of the few materials able to withstand long term exposure to the new generation of automatic transmission fluids.
  • Typical Applications

    • Electrical Distribution Systems
    • Hose and Cable Assemblies

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Polyphenylene sulfide (PPS) monofilament
  • Sizes / Availability

    Availability

    FlexFit 2010 is available in a range of sizes and cut to your specification. Color is black. Please contact your sales representative for availability.

  • Product Testing

    Performance Data – FlexFit® 2010

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +225°C (+200°C rating)
    Pass +200°C (+392°F)
    Low Temperature Flexibility
    BH100-016A
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    Melt Temperature
    ASTM D3418
    +275°C to +290°C (+527°F to +554°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
