REFLECTSLEEVE® 1452

Operating temperature up to +200°C (+392°F)

Excellent protection against radiant heat

Tubular construction with no sew line

Open and flexible design for easy installation

Designed for reduced end fray

Lightweight and low profile

Fluid and chemical resistant

FUNCTIONS:

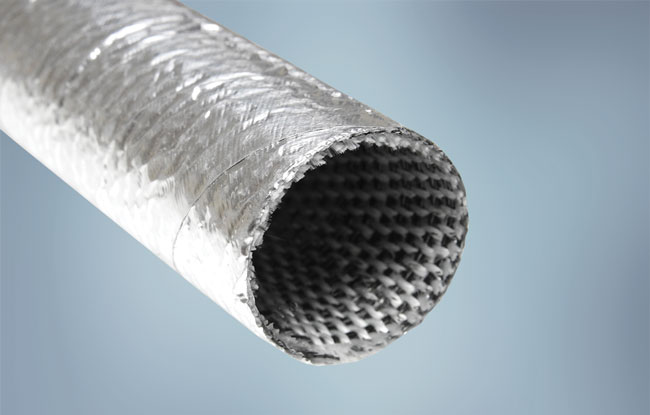

Stacks Image 6847
Open all Close all
  • Product Description
    ReflectSleeve® 1452 is a tubular, reflective sleeve designed to provide thermal protection for both radiant and convective heat applications. Composed of a woven fiberglass based substrate spirally wrapped with an aluminum foil, the product can withstand convective heat soaks up to +200°C (+392°F) and simultaneously protect components from radiant or reflective heat. In addition to providing a maximum level of protection for hoses, wire harnesses and other critical components requiring radiant heat protection ReflectSleeve 1452 also provides a superior level of fluid resistance.

    ReflectSleeve 1452’s unique construction imparts a level of flexibility not found in other reflective products, allowing the product to maintain a circular profile when flexed and provide a quick and easy installation.
  • Typical Applications

    • Engine Compartment Applications
    • Brake and Fuel Lines
    • Tube, Hose, and Cable Assemblies
    • Wire Harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Reflective laminate

    Inner Layer: Warp Yarn — Fiberglass multifilament; Fill Yarn — Polyester (PET) monofilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter (mm)
    ReflectSleeve 1452 10
    10
    ReflectSleeve 1452 13
    13
    ReflectSleeve 1452 16
    16
    ReflectSleeve 1452 19
    19
    ReflectSleeve 1452 25
    25
    ReflectSleeve 1452 29
    29
    ReflectSleeve 1452 32
    32
    ReflectSleeve 1452 38
    38
    * Application based variables will influence the sleeve size required. Routing geometry and application type may present installation and fit challenges that should be considered. Proper sleeve sizing should be confirmed by the end user. Please consult your local sales representative for recommendations and support.
    Availability

    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in custom cut lengths. Recommended cut lengths are in 5mm increments.

    Please see regional drawings for cut lengths tolerances. Please consult your local sales representative for regional packaging details and standards.

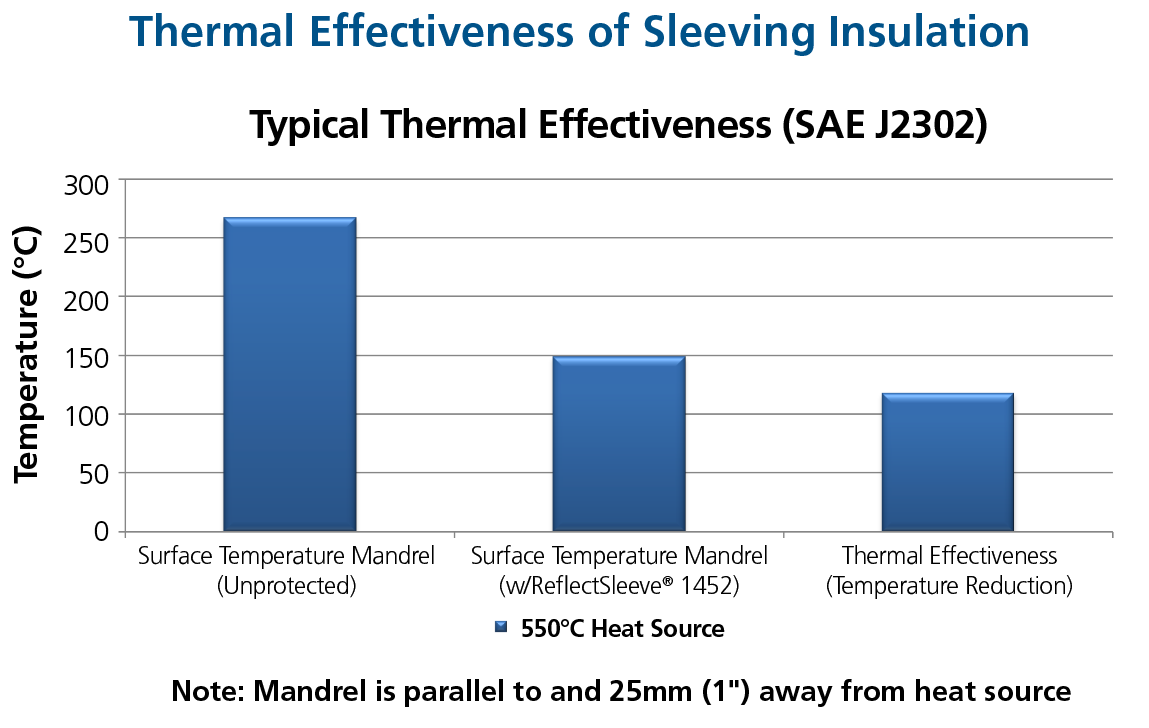

  • Product Testing

    Performance Data – ReflectSleeve® 1452

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +225°C (+200°C rating)
    Pass +200°C (+392°F)
    Thermal Endurance
    No degradation or delamination
    (25mm above a +538°C heat source for 6 hours)
    Pass
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
