PROTEXX-SHIELD® 7015
Flame Protection of +1000°C (+1832°F) x 10minutes
Efficient level of thermal insulation (+600°C / +1112°F)
Flexible, conformable

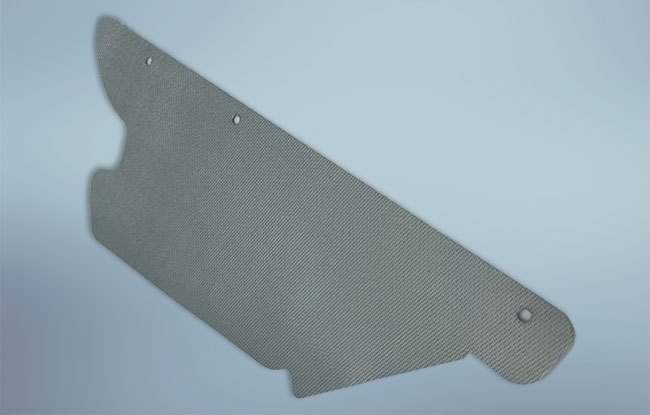

Customized designs for custom fit
Compatible to adhere to battery case
FUNCTIONS:
-
Product DescriptionProtexx-Shield® 7015 is a thin, flexible thermal and flame barrier specifically designed as anti-propagation protection within EV battery pack. Product is comprised of multiple layers of an engineered composite structure. Protexx-Shield 7015 acts as a flame barrier, low level blast barrier, medium level of thermal insulation and provides electrical insulation. Protexx-Shield 7015 is compatible with pressure sensitive adhesive to allow for direct application onto a variety of surfaces.

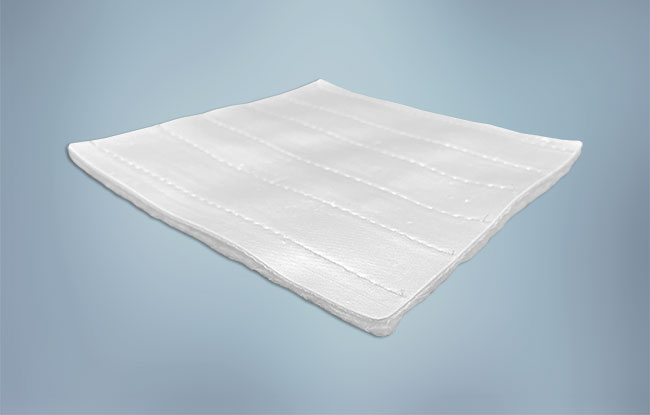

Protexx-Shield 7015's dual layer structure provides extra level of protection in harsh environments. The material consist of two identical layers comprised of flame barrier via a specialty coating and a silica fabric structure for strength and insulation properties to limit propagation and failures due to a thermal runaway event. The two layers are stitched together to provide extra protection. -
Typical Applications
• Limit propagation of thermal runaway
• EV Battery Case Liner
• EV Battery Pack:
– Module level protection
– Component level protection -
Datasheet Downloads
-
Support Documentation
-
Sizes / Availability
This product is designed to customer specific application, geometry and performance requirements. Due to the nature of this custom product, please consult your local sales representative for more details.
-
Installation Tools
There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.
-
Product Testing
Performance Data – Protexx-Shield® 7015
For optimal viewing experience on a mobile device, rotate to a landscape orientation.
PropertyTest MethodResultThermal Insulation during +1000°C (+1832°F) x 10min flameSP Internal Test Method+600°C (+1832°F) thermal insulation when mounted on steel plateThermal RunawaySP Internal Test MethodResists 10 min x +1000°C (+1832°F) FlameElectrical Insulation: Initial and Post Thermal Runaway1000V DC applied>4000 MΏDielectric Strength InitialIEC 60243-1>5kV/mmFlammabilityUL 94V0 RatingThicknessASTM D17771.6mmDensityASTM D1777; D3776; D3776M1.95 g/cm3Thermal ConductivityASTM D15030.13 [W/m.k]All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
