ROUNDIT® 2000

Operating temperature from -70ºC to +125ºC (-94ºF to +257ºF)

UL recognized component
(UL certificate is supplied for North American version only).

Self-wrapping design

Easy to apply and remove

Ideal for reworking components without disconnecting them

Tough fabric texture

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

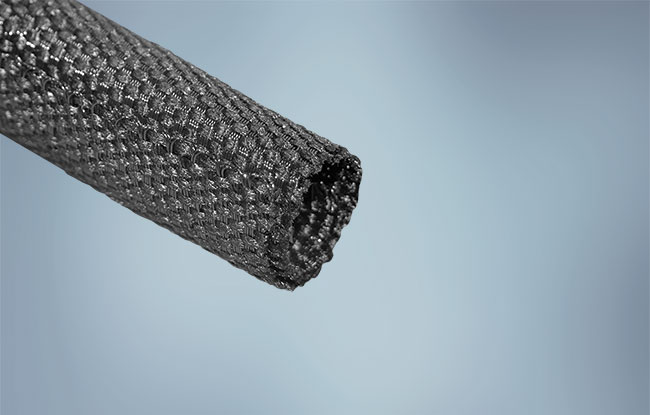

    ROUNDIT® 2000 is a woven blend of polyester monofilaments and multifilaments. The monofilament/multiflament blend in a flat weave construction gives ROUNDIT 2000 a rugged yet smooth texture and appearance. This product is rated to +125°C. ROUNDIT has many applications in the aeronautical, marine, electronic, furniture accessory and general manufacturing industries.

    ROUNDIT products are tough, lightweight oversleeves used to bundle and protect cable assemblies, hoses and wire harnesses from chafing, cutting and abrading. The self-wrapping feature of ROUNDIT products allows for quick and easy application and removal of the product for assembly and maintenance. Also, the product may be applied or removed without disturbing connectors or fittings.

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Nominal Diameter
    mm (in)
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    ROUNDIT 2000 3-0
    3 (1/8")
    1 (1/32")
    3 (1/8")
    7 (0.005)
    150 (492')
    ROUNDIT 2000 5-0
    5 (3/16")
    3 (1/8")
    5 (3/16")
    14 (0.009)
    150 (492')
    ROUNDIT 2000 8-0
    8 (5/16")
    5 (3/16")
    8 (5/16")
    19 (0.013)
    100 (328')
    ROUNDIT 2000 10-0
    10 (3/8")
    8 (5/16")
    10 (3/8")
    22 (0.015)
    75 (250')
    ROUNDIT 2000 13-0
    13 (1/2")
    10 (3/8")
    13 (1/2")
    25 (0.017)
    50 (164')
    ROUNDIT 2000 16-0
    16 (5/8")
    13 (1/2")
    16 (5/8")
    30 (0.020)
    35 (120')
    ROUNDIT 2000 19-0
    19 (3/4")
    16 (5/8")
    19 (3/4")
    34 (0.023)
    25 (82')
    ROUNDIT 2000 25-0
    25 (1")
    19 (3/4")
    25 (1")
    44 (0.030)
    25 (82')
    ROUNDIT 2000 29-0
    29 (1-1/8")
    25 (1")
    29 (1-1/8")
    49 (0.033)
    25 (82')
    ROUNDIT 2000 32-0**
    32 (1-1/4")
    29 (1-1/8")
    32 (1-1/4")
    55 (0.037)
    15 (49’) or 25 (82’)
    ROUNDIT 2000 38-0**
    38 (1-1/2")
    32 (1-1/4")
    38 (1-1/2")
    65 (0.044)
    15 (49’) or 25 (82’)
    ROUNDIT 2000 45-0
    45 (1-3/4")
    38 (1-1/2")
    45 (1-3/4")
    90 (0.060)
    15 (49')
    ROUNDIT 2000 51-0
    51 (2")
    45 (1-3/4")
    51 (2")
    93 (0.062)
    15 (49')
    ROUNDIT 2000 62-0
    62 (2-3/8")
    50 (2")
    62 (2-3/8")
    100 (0.067)
    15 (49')

    Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    ** Note: Please contact your customer service representative for confirmation of spool length.

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ROUNDIT 2000
    8
    0 (black)
    100m
  • Installation Tools

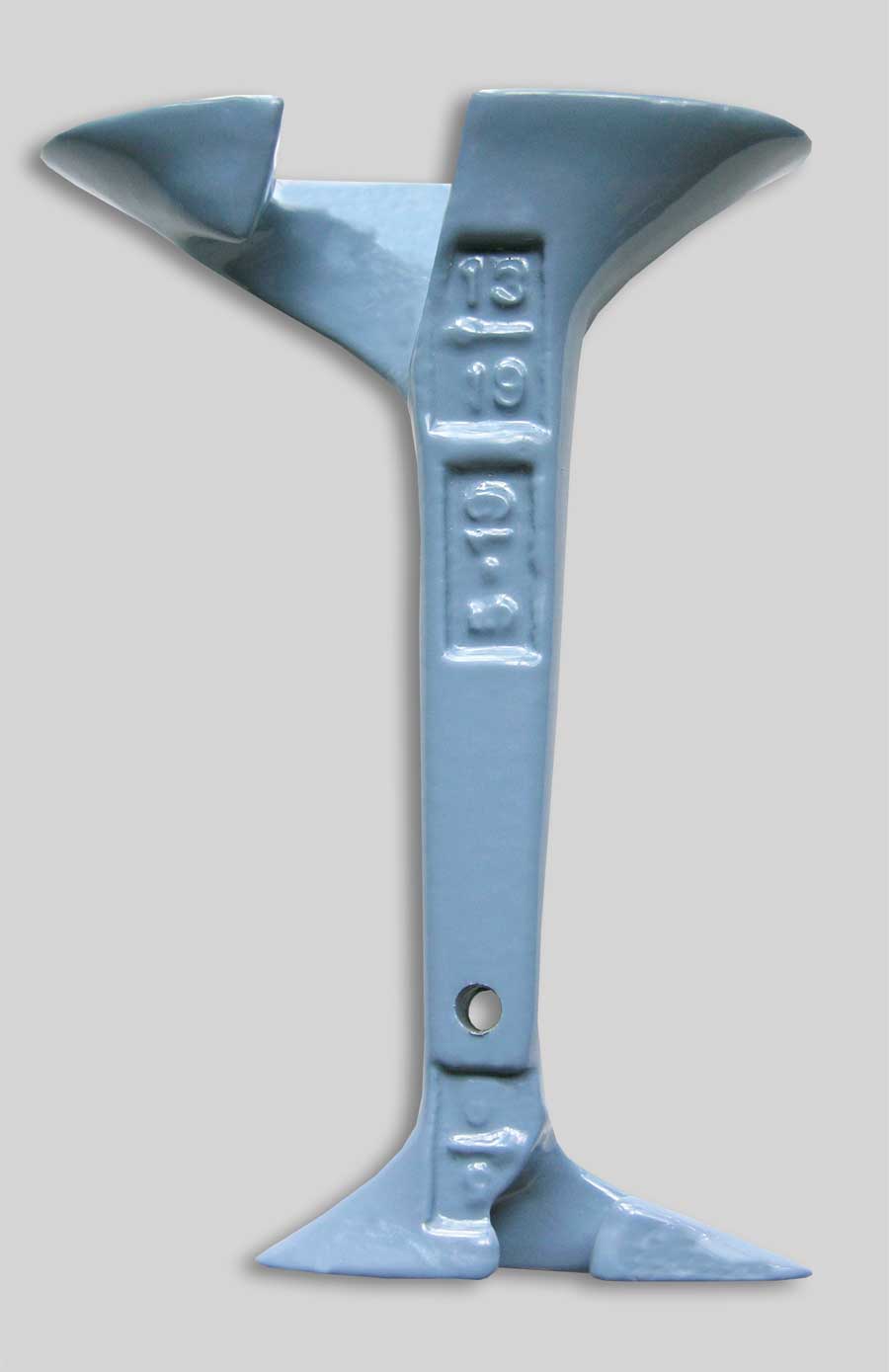

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® 2000

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -70°C to +125°C
    (-94°F to +257°F)
    Melt Temperature
    ASTM D-276
    +256ºC (+493°F)
    Low Temperature Flexibility
    MIL-DTL-23053E
    -70ºC (-94°F)
    Smoke Density
    ASTM E-1354
    Pending
    Fire Resistance
    FMVSS-302
    Test Method D45 1333
    Self-extinguishing, Type B
    Hard Vacuum
    – TML (Mass)
    – CVCM (Condensation)
    – WVR (steam)
    ASTM E-595

    0.63%
    0.16%
    0.06%
    Copper Corrosivity
    MIL-I-23053
    No effect
    Fluid Resistance
    – Jet Fuel JP-41
    – Hydraulic Fluid (MIL-H-5606)
    – Lube Oil (MIL-I-7808)
    – De-Icing Fluid (MIL-A08243)
    – Salt Water (O-S-1926)
    MIL-I-23053
    Tensile Retention
    100%
    100%
    100%
    100%
    100%

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
