TWISTTUBE® 2424LT

Operating temperature up to +150°C (+302°F)

High level of abrasion resistance

Self-wrapping design

Extremely lightweight and thin

Used to identify critical components

FUNCTION:

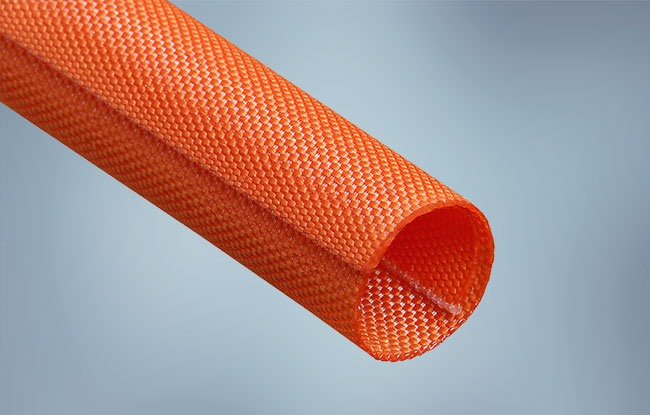

Stacks Image 6847
Open all Close all
  • Product Description
    TwistTube® 2424LT is a self-wrapping sleeve designed to provide mechanical protection. Woven of both monofilament and multifilament polyester yarns the product offers a high level of component protection and is both flexible and lightweight. Colored orange, TwistTube 2424LT is commonly used to identify high voltage cables in hybrid vehicles.

    The polyester construction eliminates problems associated with trapped heat and humidity and also eliminates operator skin irritation during assembly.

    TwistTube 2424LT offers superior abrasion protection and maintains a circular profile when flexed. Its self-wrapping design allows for quick and easy bundling of wire and cable assemblies. The unique design easily allows for breakouts and can be installed over completed assemblies. The lightweight design was developed specifically for electric vehicles and can effectively reduce product weight while still maintaining excellent product performance.
  • Typical Applications

    • Electric and hybrid vehicles
    • Instrument panel harnesses
    • Engine compartment harnesses
    • High voltage cables

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Nominal Diameter (mm)
    Recommended Application Range (mm)
    Min Ø
    Max Ø
    5

    3

    5
    8

    5

    8
    10

    9

    10
    13

    11

    13
    16

    14

    16
    19

    17

    19
    25

    20

    25
    29

    26

    29
    32

    30

    32

    Max diameter is defined as a nominal 90° sleeve overwrap. A variety of application-based variables will dictate the appropriate sleeve size for use on each harness. Proper sleeve sizing is at the discretion of the end user.

  • Installation Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data - TwistTube® 2424LT

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hrs at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
