QUIETSLEEVE® 3430

Operating temperature up to -50°C to +150°C (-58°F to +302°F)

Expandable tubular sleeve

Excellent noise suppression

Abrasion resistant

Extremely lightweight

Highly expandable

Self-extinguishing

FUNCTIONS:

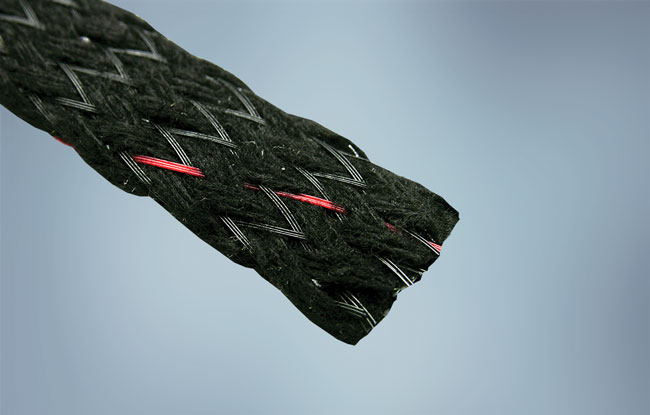

Stacks Image 8083
Open all Close all
  • Product Description
    QuietSleeve® 3430 is a highly flexible, expandable sleeving used to suppress noise on wire harnesses. Its lightweight construction also provides additional protection against rubbing.

    QuietSleeve 3430 is braided from a combination of monofilament polyester abrasion-resistant strands and multifilament, polyester, noise-suppression strands. When installed on wire harnesses, this construction provides a sound dampening and anti-rattle effect greatly reducing the noise generated by vehicle vibration.

    QuietSleeve 3430 is easy to apply and one size fits many applications since it readily expands. In addition, the open weave construction prevents condensation.

    The carefully calculated mix of strands provides a balance of key features including: flexibility, expandability, abrasion resistance, noise suppression and self-fitting recovery. These features optimize the handling properties of the sleeving and assure a longer service life for the final assembly.
  • Typical Applications

    • Body wiring harnesses
    • Instrument panel harnesses
    • Dome light wiring harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Resilient Support Yarn: Polyester (PET) monofilament

    Noise Suppression Yarn: Polyester (PET) multifilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Recommended Application Range
    (mm)
    Min Ø
    Max Ø
    Max Diameter Expansion
    (mm)
    QuietSleeve 3430 3
    1
    4
    7
    QuietSleeve 3430 4
    2
    5
    12
    QuietSleeve 3430 6
    2
    6
    16
    QuietSleeve 3430 14
    6
    10
    22
    QuietSleeve 3430 18
    10
    14
    30
    QuietSleeve 3430 22
    12
    16
    50
    Availability

    QuietSleeve 3430 is available in a range of sizes and cut to your specification. Standard color is black with a red, temperature identifying, tracer strand. Please contact your sales representative for availability.
  • Product Testing

    Performance Data – QuietSleeve® 3430

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F) with no visible degradation nor loss of flexibility
    Shrinkage ≤ 10%
    Low Temperature Flexibility
    BH100-016A
    Pass -50°C (-58°F)
    Flammability
    FMVSS 302
    D45 1333
    Pass
    Self-extinguishing, Type B
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:
    • Immersion for 15s at 23°C, followed by a drying period of
      • 24h at 150°C: motor oil, automatic transmission fluid, mineral hydraulic fluid.
      • 24h at 23°C: zinc chloride, brake fluid.
    • Immersion for 48h at 70°C, followed by a drying period of 24h at 23°C: Urea of clean up Ad blue.
    • Immersion for 24h
      • At 40°C, followed by a drying period of 4h at 23°C: for gazole, unloaded petrol 98, Std fuel C +15% methanol, E85 bio ethanol.
      • At 70°C, followed by a drying period of 4h at 23°C, for windscreen washer.
      • At 118°C, by a drying period of 4h at 23°C, for engine coolant.
    Noise Suppression
    SAE J2192
    Rubbing: > 20dB
    Rattling: > 44 dB
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
