FLEXGUARD® 2139

Operating temperature up to +150°C (+302°F)

Circular profile

Excellent abrasion resistance

Excellent flexibility

Attractive appearance

Does not trap heat or humidity

FUNCTIONS:

Stacks Image 8083
Open all Close all
  • Product Description

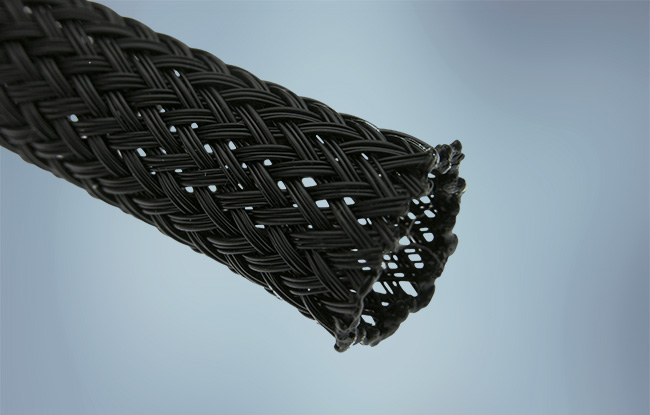

    FlexGuard® 2139 is a highly flexible, expandable sleeving that is both lightweight and rugged. Because it expands up to three times its own diameter, FlexGuard 2139 is easy to apply and one size fits many applications. The material construction permits drainage, prevents condensation, and the tight weave structure provides extreme abrasion resistance. FlexGuard 2139 is engineered to maintain a round profile which facilitates installation.

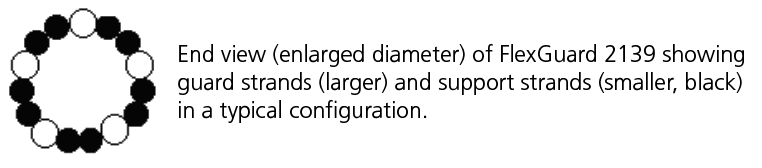

    FlexGuard 2139 provides mechanical protection for various hoses, wire harnesses, and other critical components requiring maximum abrasion protection. Featuring a dual monofilament construction, FlexGuard 2139 blends larger nylon monofilament guard strands with PET/polyester support strands. This carefully calculated mix provides an excellent balance of key features including: flexibility, expandability, abrasion resistance, and self recovery. These features optimize the handling properties of the sleeve and assure a longer service life for the protected component.
  • Typical Applications

    • Electrical Distribution Systems
    • Hoses and Tubing
    • Sensor Assemblies

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Resilient Support Yarn: Polyester (PET) monofilament

    Abrasion Guard Yarn: Nylon 66 (PA66) monofilament
  • Sizes / Availability

    Availability

    FlexGuard 2139 is available in a range of sizes and cut to your specification. Standard color is black. Please contact your sales representative for availability.

  • Product Testing

    Performance Data – FlexGuard® 2139

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    BH100-016A
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    Melt Temperature
    ASTM D3418
    +245°C to +265°C (+473°F to +509°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
