FLEXWRAP® 2300

Operating temperature up to +125°C (+257°F)

Wrappable design for easy installation and removal

Closure maintains low profile for flat cables and harnesses

Lightweight and low bulk

Easily accommodates breakouts

Excellent flexibility

FUNCTIONS:

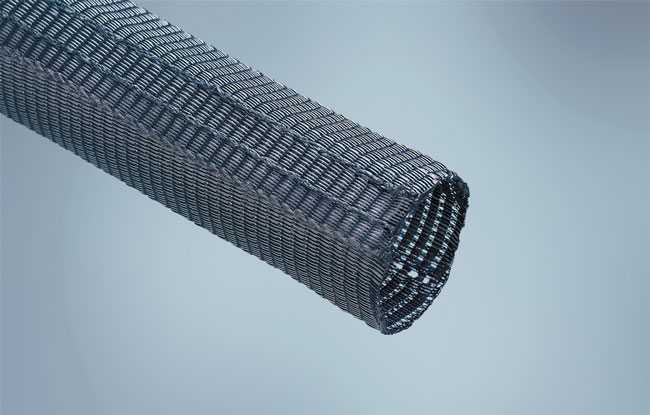

Stacks Image 8083
Open all Close all
  • Product Description
    FlexWrap® 2300 is a lightweight sleeve with a unique hook and loop self-closing feature that eliminates spot taping and does not require an open end for installation. The sleeve and integral loop portion of the closure system are manufactured entirely of polyester (PET) materials. FlexWrap 2300 permits easy access for inspection, rework or replacement of components.

    Used to bundle wire harnesses, FlexWrap 2300 provides cut-through and abrasion protection and is easily applied to areas restricted by breakouts and large end fittings. FlexWrap 2300’s highly flexible and low profile construction allows engineers more design freedom compared to typical molded plastic channels
  • Typical Applications
    • Wire harness bundling
    • Areas restricted by breakouts
    • Instrument panel harnesses
    • Body wiring harnesses
    • Dome light wiring harnesses
    • Door lock rods
    • Tubing, hose, and cable assemblies
  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Warp Yarn: Polyester (PET) Monofilament

    Fill Yarn: Polyester (PET) Multifilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter
    mm
    FlexWrap 2300 13
    13
    FlexWrap 2300 19
    19
    FlexWrap 2300 22
    22
    FlexWrap 2300 25
    25
    FlexWrap 2300 32
    32
    FlexWrap 2300 38
    38
    FlexWrap 2300 45
    45
    FlexWrap 2300 51
    51


    Availability

    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in custom cut lengths only. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Standard color is black.

    Please consult your local sales representative for regional packaging details and standards.

  • Product Testing

    Performance Data – FlexWrap® 2300

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +150°C (+125°C rating)
    Pass +125°C (+257°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
