TWISTTUBE® 2439

Operating temperature up to +200°C (+392°F)

Mechanical abrasion protection

Lightweight woven structure

Self-wrapping tubular design

Very resistant to automatic transmission fluid

FUNCTION:

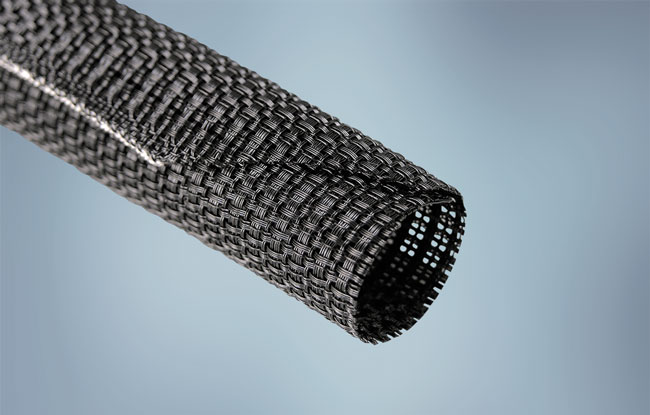

Stacks Image 6847
Open all Close all
  • Product Description
    TwistTube® 2439 is a high temperature, lightweight woven sleeve designed to provide mechanical protection for cable assemblies, hoses and wire harnesses. It incorporates a unique self-wrapping closure that allows for quick and easy installation. It also allows for breakouts and can be installed over complete assemblies. The overwrapping design of the product allows it to maintain a circular profile when flexed.

    TwistTube 2439 is woven with PPS (polyphenylene sulfide) monofilaments and is designed to provide mechanical protection in environments up to +200°C (+392ºF). TwistTube 2439’s PPS construction results in outstanding property retention in extreme environments and is one of the few materials able to withstand long term exposure to the new generation of automatic transmission fluids.
  • Typical Applications

    • Wire harnesses
    • Tubing, hose, and cable assemblies

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Nominal Diameter (mm)
    Recommended Application Range (mm)
    Min Ø
    Max Ø
    5

    1

    5
    8

    6

    8
    13

    9

    13
    19

    14

    19
    25

    20

    25
    29

    26

    29
    32

    30

    32

    Max diameter is defined as a nominal 90° sleeve overwrap. A variety of application-based variables will dictate the appropriate sleeve size for use on each harness. Proper sleeve sizing is at the discretion of the end user.

    A reduced overlap could be acceptable in certain applications allowing for a larger max diameter harness. Please consult your local sales representative for recommendations and guidance.

  • Installation Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data - TwistTube® 2439

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +225°C (+200°C rating)
    Pass +200°C (+392°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
