QUIETSLEEVE® 3410

Operating temperature up to +150°C (+302°F)

Excellent noise suppression

Uniform appearance

Abrasion resistant

Extremely lightweight

Does not trap heat or moisture

FUNCTIONS:

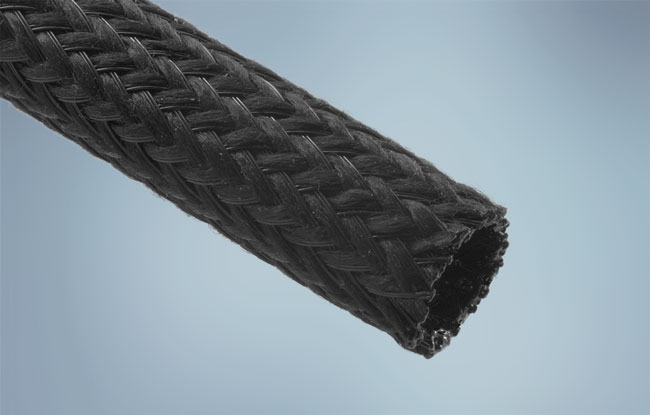

Stacks Image 8083
Open all Close all
  • Product Description
    QuietSleeve® 3410 is a highly flexible and expandable sleeve used to suppress noise on wires and cable assemblies. Its rugged construction also provides abrasion protection that is superior to foam.

    QuietSleeve 3410 is easy to apply with one size accommodating a variety of applications. In addition, the open weave construction permits drainage and prevents condensation.

    QuietSleeve 3410 is a braided from a combination of monofilament, polyester abrasion-resistant strands and multifilament, polyester, noise suppression strands.
  • Typical Applications

    • Instrument panel harnesses
    • Body wiring harnesses
    • Dome light wiring harnesses
    • Door lock rods
    • Tubing, hose, and cable assemblies

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Resilient Support Yarn: Polyester (PET) monofilament

    Noise Suppression Yarn: Polyester (PET) multifilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Size
    (mm)
    QuietSleeve 3410 3
    3
    QuietSleeve 3410 6
    6
    QuietSleeve 3410 13
    13
    QuietSleeve 3410 19
    19
    QuietSleeve 3410 25
    25
    QuietSleeve 3410 32
    32
    Availability

    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in spools and custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawing for cut length tolerances.

    Standard color is black. Additional colors may be available.

    Please consult your local sales representative for regional packaging details and standards.
  • Product Testing

    Performance Data – QuietSleeve® 3410

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    Acoustic Performance
    SAE J2192
    Rubbing: > 15 dB
    Rattling: > 25 dB
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
