FYRETAPE®

Operating temperature -54°C to +260°C (-65°F to +500°F)

Low temperature flexibility -54°C (-65°F)

Excellent thermal protection

Uninflammable

Retards burn-through

Flexible

Open construction; can be installed on preassembled hoses

FUNCTIONS:

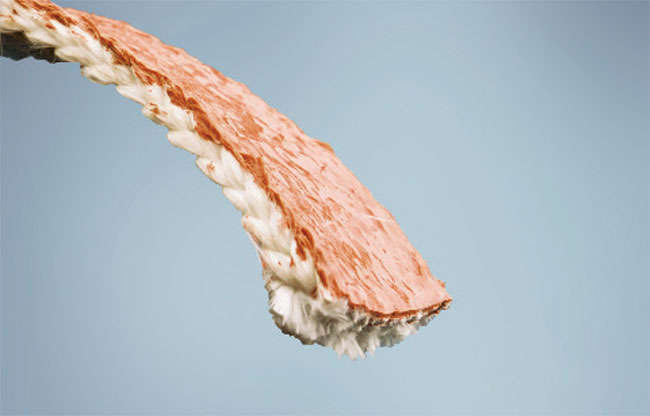

Stacks Image 6847
Open all Close all
  • Product Description
    FyreTape® is a thickwall fiberglass tape coated with silicone rubber that provides thermal protection. FyreTape is used to protect hoses, lines and cables in high temperature areas. It additionally provides protection against short-term hazards such as flame blasts.
    When burn-through is a threat, the specially designed construction retards the penetration of the flame. This can allow components to continue to operate for a short amount of time.

    The textile construction of FyreTape allows excellent flexibility in temperatures as low as -60°C. The silicone coating is highly resistant to a wide range of solvents and fluids.

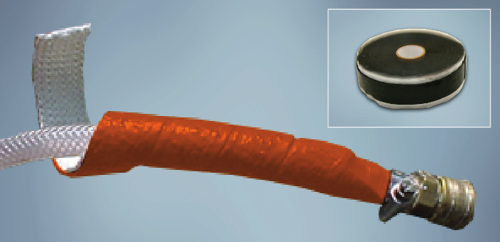

    To allow a good fit when wrapping FyreTape around its application, use of the self-amalgamating 67N is recommended to further encapsulate the fiberglass and reduce penetration of the fluid inside the assembly.


    Stacks Image 7163
  • Typical Applications

    • Heater Hoses
    • Power Steering Hoses

  • Datasheet Downloads
  • Product Specifications

    Standard Sizes

    Commercial Part Number
    Width
    mm (in)
    Wall Thickness
    mm (in)
    Standard Packaging
    m (ft)
    FyreTape 25-12
    25 (1")
    3 (1/8")
    30 (100')
    FyreTape 51-12
    51 (2")
    3 (1/8")
    15 (50')
    FyreTape 76-12
    76 (3")
    3 (1/8")
    15 (50')
    FyreTape 102-12
    102 (4")
    3 (1/8")
    15 (50')
    FyreTape 127-12
    127 (5")
    3 (1/8")
    15 (50')
    FyreTape 152-12
    152 (6")
    3 (1/8")
    15 (50')
  • Product Testing

    Performance Data – FyreTape®

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    +260°C (+500°F)
    Low Temperature Flexibility
    ASTM D-746
    -60°C (-76°F)
    Flame Resistance
    FMVSS 302
    D45 1333

    Non-flammable
    Type A
    Fluid Resistance
    Norm 9.91220
    No visible degradation or alteration after being immersed during 24h in the following fluids:
     – Engine oil, automatic and manual, transmission oils at +100°C
    – Cooling liquid at +90°C
    – Brake fluid and windshield cleaner at +50°C
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
