REFLECTSLEEVE® 1501

Operating temperature up to +150°C (+302°F)

Excellent protection against radiant heat

Tubular construction with no sew line

Low end fray construction

Lightweight, flexible, and low profile

Superior fluid and chemical resistance

FUNCTIONS:

Stacks Image 6847
Open all Close all
  • Product Description

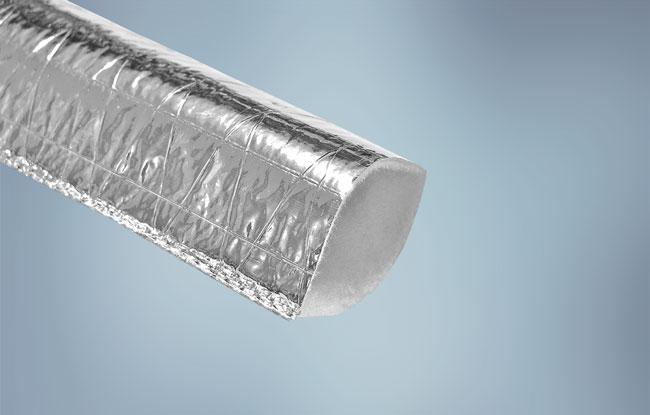

    ReflectSleeve® 1501 is reinforced, aluminized polyester sleeve designed to protect components in high temperature environments. The external surface is composed of a highly reflective aluminum foil, which provides radiant heat protection for internal components. The internal layer is composed of a polyester non-woven material, which provides added insulation efficiency. A layer of fiberglass scrim contributes to both product flexibility and durability.

    ReflectSleeve 1501 was designed with a combination of materials used to produce an engineered solution for wire harnesses and other components in close proximity to engine and exhaust systems. ReflectSleeve 1501 provides a cost-effective, non-skin-irritating alternative to current radiant heat products.
  • Typical Applications

    • Engine Compartment Applications
    • Brake and Fuel Lines
    • Tube, Hose, and Cable Assemblies
    • Wire Harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Reflective Laminate

    Inner Layer: Polyester (PET) non-woven
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter (mm)
    ReflectSleeve 1501 10
    10
    ReflectSleeve 1501 13
    13
    ReflectSleeve 1501 16
    16
    ReflectSleeve 1501 19
    19
    ReflectSleeve 1501 22
    22
    ReflectSleeve 1501 25
    25
    ReflectSleeve 1501 32
    32
    ReflectSleeve 1501 35
    35
    ReflectSleeve 1501 38
    38
    ReflectSleeve 1501 45
    45
    ReflectSleeve 1501 51
    51
    ReflectSleeve 1501 70
    70
    * Application based variables will influence the sleeve size required. Routing geometry and application type may present installation and fit challenges that should be considered. Proper sleeve sizing should be confirmed by the end user. Please consult your local sales representative for recommendations and support.
    Availability

    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut lengths tolerances.

    Please consult your local sales representative for regional packaging details and standards.

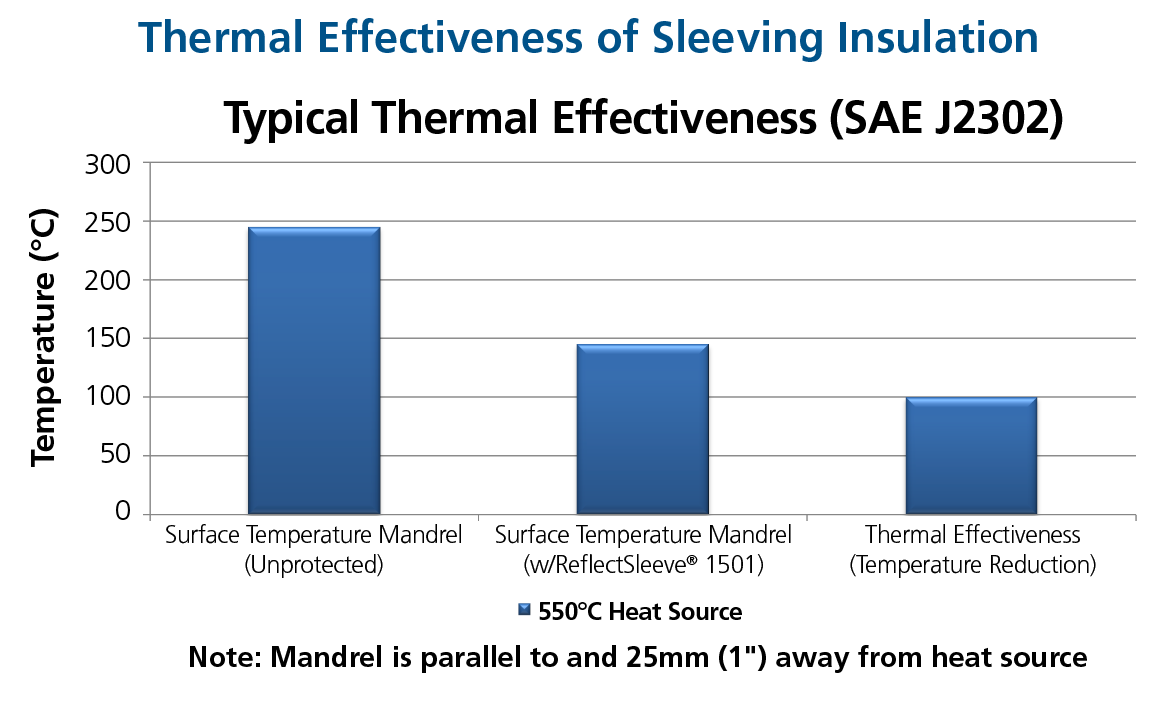

  • Product Testing

    Performance Data – ReflectSleeve® 1501

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Thermal Endurance
    No degradation or delamination
    (25mm above a +538°C heat source for 6 hours)
    Pass
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
