QUIETSLEEVE® 3400

Operating temperature up to +125°C (+257°F)

Excellent noise suppression

Abrasion resistant

Extremely lightweight

Attractive appearance

Does not trap heat or moisture

FUNCTIONS:

Stacks Image 8083
Open all Close all
  • Product Description

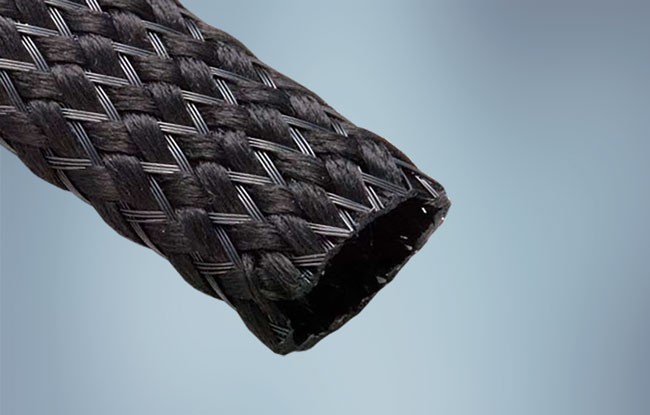

    QuietSleeve® 3400 is a highly flexible, expandable sleeving used to suppress noise on wires and cable assemblies. Its lightweight, rugged construction also provides mechanical protection that is superior to foam.

    QuietSleeve 3400 is easy to apply and one size fits many applications since it readily expands. In addition, the open weave construction permits drainage and prevents condensation.

    QuietSleeve 3400 is braided from a combination of monofilament, polyester abrasion-resistant strands and multfilament, polyester, noise-suppression strands. The carefully calculated mix of strands provides an excellent balance of key features including: flexibility, expandability, abrasion resistance, noise suppression, and self-fitting recovery. These features optimize the handling properties of the oversleeving and assure a longer service life for the final assembly.
  • Typical Applications

    • Instrument panel harnesses
    • Body wiring harnesses
    • Dome light wiring harnesses
    • Door lock rods
    • Tubing, hose, and cable assemblies

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Resilient Support PET (Polyester) Monofilament Yarn: .009” DIameter

    Noise Suppression PET (Polyester) Multifilament Yarn: 1250 denier
  • Sizes / Availability
    Availability

    QuietSleeve 3400 is available in 1/4” to 1-1/4” diameter. All numeric data shows typical or average values.

    Please consult our sales & applications engineering office for material specifications, product drawings and OEM approvals. Specification documents should be coordinated with the manufacturer before use.
  • Product Testing

    Performance Data – QuietSleeve® 3400

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    Pass +125°C (+257°F)
    PET Melt Temperature
    ASTM D3418
    +245°C to +265°C (+473°F to +309°F)
    Tensile Strength
    • Polyester Monofilament
    • Polyester Multifilament
    ASTM D2256

    6.0 lb/f min.
    6.0 lb/f min.
    Elongation
    • Polyester Monofilament
    • Polyester Multifilament
    ASTM D2256

    15 - 30%
    35 - 42%
    Linear Shrinkage
    • Polyester Monofilament
    • Polyester Multifilament
    ASTM D2259

    5.5% Max.
    5.5% Max.
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
