QUIETGARD™ 3602

Operating temperature -50°C to +125°C (-58°F to +257°F)

Excellent crash resisitance

Good noise suppression

Good abrasion resistance

Flexible

FUNCTION:

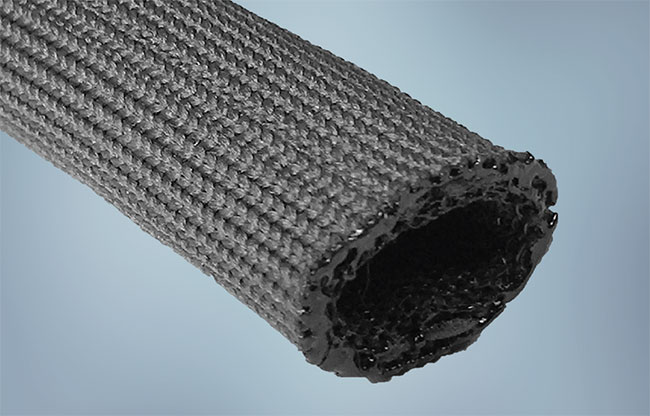

Stacks Image 6847
Open all Close all
  • Product Description
    QuietGard™ 3602 is a tubular sleeve to protect pipes during a car accident. QuietGard 3602 is also a good mechanical protection and can be used to suppress acoustic noise.

    QuietGard 3602 is made out of 100% thick polyester knitted yarns and has an internal layer composed out of polyamide to reinforce its crash resistance performances.
    QuietGard 3602 is very flexible, easy to install and pass the main automotive specifications (fluids resistance, flammability, etc.)
  • Typical Applications

    • PA Fuel Lines
    • Tubing

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Size
    mm
    QuietGard 3602
    5
    QuietGard 3602
    8
    QuietGard 3602
    10
    QuietGard 3602
    12.7

    Availability

    QuietGard 3602 is available in a range of sizes and cut to your specification. Standard color is gray. Please contact your sales representative for availability.
  • Product Testing

    Performance Data - QuietGard™ 3602

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    ISO 6722-1
    -50°C to +125°C (-58°F to +257°F)
    Abrasion Resistance
    D44 1959 Ind A
    Passes steel wire
    Heat Aging:
    240hrs @ +150°C
    3000hrs @ +125°C
    ISO 6722-1
    No visible degradation nor loss of flexibility
    Flammability
    FMVSS 302
    D45 1333
    Pass
    Self-extinguishing, Type B
    Crash Resistance
    D42 1235
    Passes Impact energy 24.5J
    on fuel line (PA6/PA12)
    Stone Impingement
    D14 1428
    No piercing after 5 minutes
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:
    • 1 cycle is immersion for 15s at 22°C followed by a drying period of 24hrs at 150°C: motor oil, protection oil, automatic transmission fluid, mineral hydraulic fluid, brake fluid, zinc chloride (drying at 23°C).
    • 1 cycle is immersion for 2hrs at 70°C (in vapor) followed by a drying period of 4hrs at 23°C : battery fluid
    • 1 cycle is immersion for 24hrs at 70°C :
      Windscreen washer
    • 1 cycle is immersion for 24hrs at 40°C followed by a drying period of 4hrs at 23°C : fuel C + 15% methanol, unloaded petrol 98
