ROUNDIT® PPS

Operating temperature from -60ºC to +175ºC (-76ºF to +347ºF)

ABS 1552

C20979

F.A.R. Part 25

Excellent cut-through and abrasion resistance

Self-wrapping design

Halogen-free

Ideal for reworking components without disconnecting them

Lightweight construction

Aesthetic solution

Does not trap heat or humidity

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

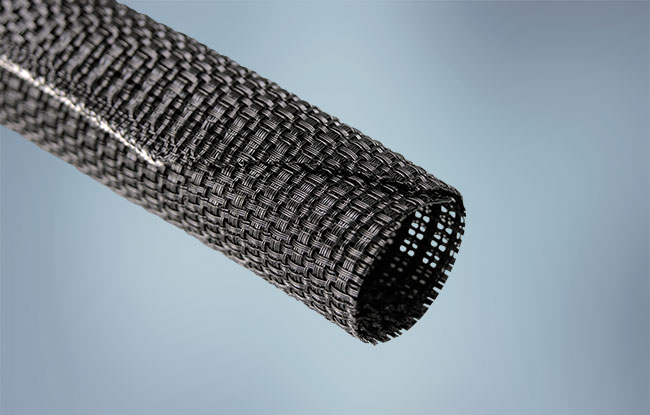

    ROUNDIT® PPS is a self-wrapping sleeve manufactured from polyphenylene sulfide (PPS) monofilaments.  This product offers excellent off-gasing properties and does not absorb or trap moisture making it ideal for use in space applications.  The design allows for quick and easy installation and removal for the assembly, maintenance and inspection of wire harnesses and cable assemblies.  

    ROUNDIT PPS is available in sizes from 1/4” to 1-1/2” (5 mm to 38 mm) to cover a wide range of cable and wire diameters.

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    ROUNDIT PPS 5-0/9
    1 (1/32")
    5 (3/16")
    13 (0.009)

    150 (492')
    ROUNDIT PPS 8-0/9
    5 (3/16”)
    8 (5/16”)
    17 (0.011)
    100 (328’)
    ROUNDIT PPS 13-0/9
    8 (5/16”)
    13 (1/2”)
    25 (0.017)
    50 (164’)
    ROUNDIT PPS 19-0/9
    13 (1/2”)
    19 (3/4”)
    40 (0.027)
    25 (82’)
    ROUNDIT PPS 25-0/9
    19 (3/4”)
    25 (1”)
    49 (0.033)
    25 (82’)
    ROUNDIT PPS 32-0/9
    25 (1")
    32 (1-1/4”)
    68 (0.046)
    25 (82’)
    ROUNDIT PPS 38-0/9
    32 (1-1/4”)
    38 (1-1/2”)
    85 (0.057)
    25 (82’)

    Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ROUNDIT PPS
    5
    0/9 (black with white tracer)
    150m
  • Installation Tools

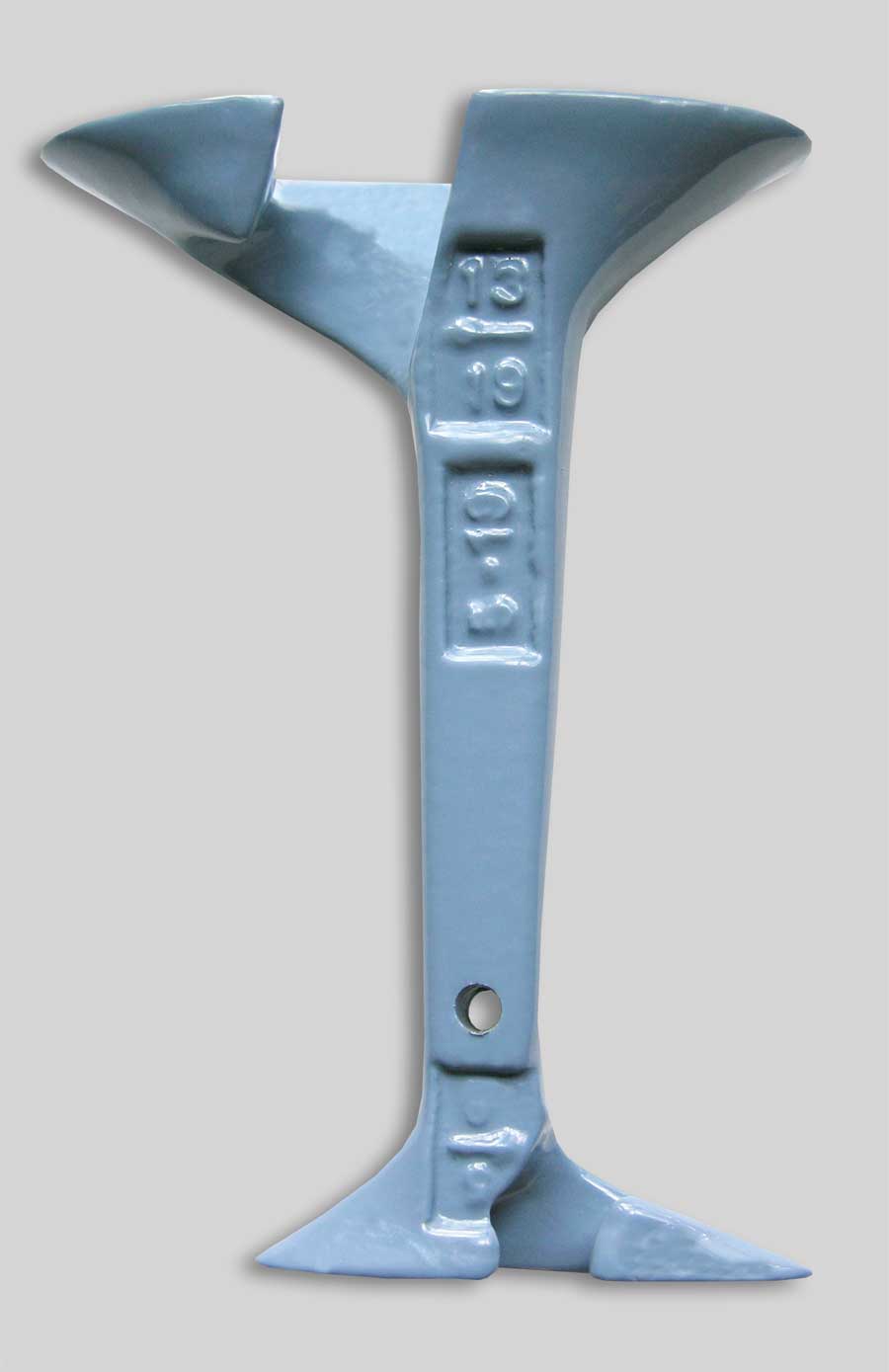

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® PPS

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Operating Temperature Range
    EN 6053-302
    -60ºC (-76°F) to +175ºC (+347°F)
    Low Temperature Flexibility
    MIL-DTL-23053E
    -70°C
    Flammability/smoke density/toxicity
    ABD 031 & FAR 25 § 853
    Conforms – no halogen content
    MECHANICAL
    Abrasion Resistance
    EN 6059 Part 403
    Pass
    Dynamic Cut-through
    EN 6059 Part 405
    Pass
    Vibration
    DO 160B
    No cable abrasion
    Hard Vacuum
           TML
       CVCM
    ASTM E-595
    Meets industry limits
    1.0% max
    0.1% max
    CHEMICAL
    Fluid Resistance
    – Jet Fuel: JP-5 (Otan F44)
    – Hydraulic Fluid (Skydrol 500B4)
    – Mineral Oil (MIL-L-7870A)
    – Synthetic Oil (MIL-L-23699)
    – Cleaning Fluids (MIL-L-87936)
    – De-icing Fluid (MIL-A-8243)
    – 5% NaCl Solution
    MIL-DTL-23053E

    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Mold Growth
    EN 6049 Part 306
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
