HARNASLEEVE® 1625

Operating temperature up to +225°C (+437°F)

Excellent dielectric protection

Dimensionally stable

Lightweight and low profile

Superior fray resistance

Water tight and fluid resistant

FUNCTION:

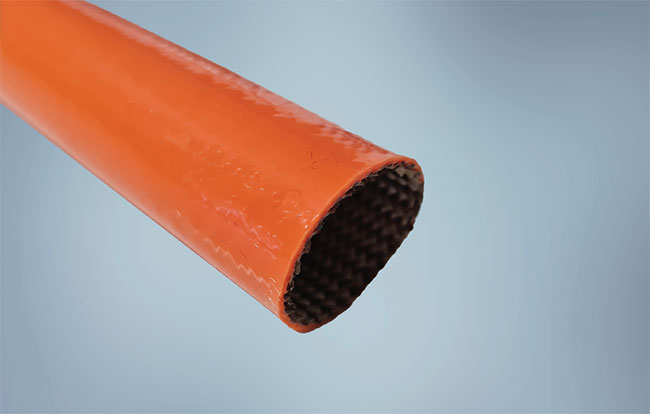

Stacks Image 6847
Open all Close all
  • Product Description
    HarnaSleeve® 1625 is a silicone coated fiberglass sleeve that electrically insulates wires to prevent arcing and short circuits. In addition, the sleeve’s inherent thermal insulation and containment properties can be utilized depending on the application. The smooth, high gloss silicone creates a fluid tight barrier, provides additional protection, and is available in a variety of colors for identification purposes.
  • Typical Applications

    • Electrical Isolation
    •     Thermal Insulation
    • Fluid Tight Barrier Requirements

  • Datasheet Downloads
  • Construction & Typical Product Characteristics

    Base Yarn: Type E Fiberglass
    Coating: Silicone

  • Sizes / Availability

    Product Specifications

    Nominal Size
    (mm)
    Recommended Application Range mm
    Min Ø
    Max Ø
    3
    2.5
    3.5
    4.5
    4.0
    5.0
    5
    4.5
    5.5
    6
    5.5
    6.5
    7
    6.5
    7.5
    8
    7.5
    8.5
    10
    9
    11
    12
    11
    13
    14
    13
    15
    16
    15
    17
    18
    17
    19
    20
    19
    21
    22
    21
    23
    25
    24
    26
    28
    27
    29

    Availability


    Standard sizes are listed here. Additional sizes could be available upon request. Available in spools and custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances. Available colors are listed below. Additional colors may be available upon request. Please consult your local sales representative for regional packaging details and standards.

    Colors:

    • White
    •     Black
    • Yellow
    • Blue
    •     Green
    • Gray
    • Orange
    •     Light Blue
    • Light Green

  • Product Testing

    Performance Data - HarnaSleeve® 1625

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -50ºC (-58°F) to +225ºC (+437°F)
    Heat Aging 240hrs @ +250°C
    ISO 6722
    Neither visible degration nor loss of flexibility
    Shrinkage < 10%
    Flammability
    FMVSS 302
    D45 1333
    Pass
    Self-extinguishing, Type B
    Dielectric Strength
    MCQ-021
    4.5 kV (average)
    2.5 kV (minimum)

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
