FyreJacket® 1670 from Systems Protection™

FYREJACKET® 1670

Operating temperature up to +200°C (+392°F)

Expansion Ratio: 1 : 1.5

Excellent dielectric protection

Highly expandable and flexible

Dimensionally stable

Lightweight & low profile

Superior end fray resistance

Water tight and fluid resistant

UL recognized component for FyreJacket 1670-7 & FyreJacket 1670-10 (UL certificate is supplied for China version only)

FUNCTIONS:

Open all Close all

Product Description

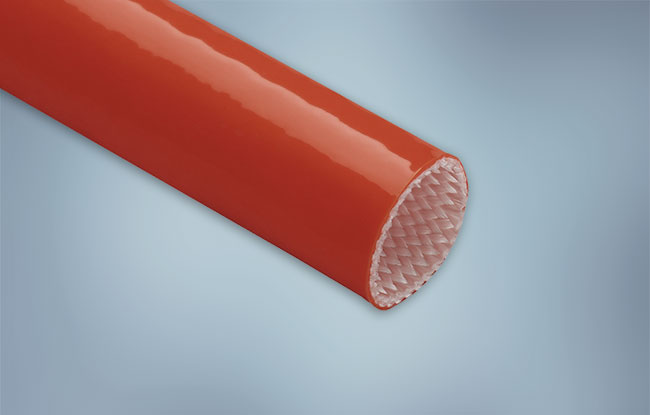

FyreJacket® 1670 is an expandable braided fiberglass sleeve coated with a specially compounded silicone rubber. The product is intended to protect hoses, hose assemblies, tubing, piping, wires, wire assemblies, and cables from heat and abrasion while providing high voltage circuit protection. The thickness of the silicone coating determines the dielectric strength, which ranges from 4 to 10 kV.

Its optimized construction features a highly expandable and flexible characteristic which carries easy installation and superior fit on complex busbar geometries. The high flexibility of FyreJacket® 1670 allows for a relative expansion ratio of approximately 50%.In addition, the sleeve’s inherent thermal insulation and containment properties can be utilized depending on the application. The smooth, high gloss silicone creates a fluid tight barrier, provides additional protection, and is available in a variety of colors for identification purposes.

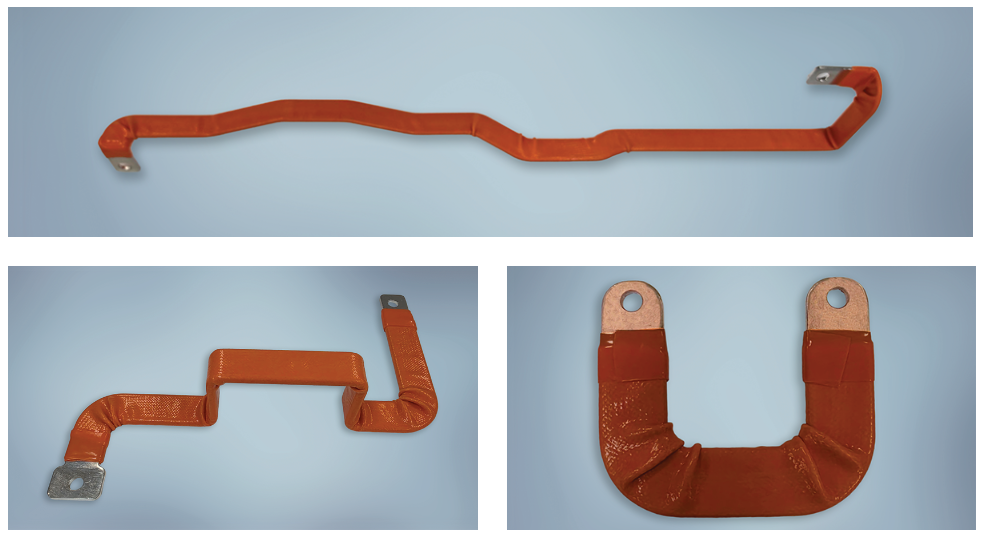

As shown in these examples, FyreJacket® 1670 maintains a smooth, continuous protective barrier even through tight bends and challenging routing paths. Its flexible construction helps preserve electrical insulation, thermal protection, and a clean finished appearance throughout the installation.
Typical Applications

• Electrical isolation
• Thermal insulation
• Fluid tight barrier requirements
• Busbars
Datasheet Downloads
Construction & Typical Product Characteristics

Base Yarn: Type E Fiberglass
Coating: Silicone
Sizes / Availability
Standard Sizes

Nominal Size
mm
Recommended Application Range
mm

Min Ø

Max Ø

8
8
12

10
10
15

12
12
18

14
14
21

16
16
24

18
18
27

20
20
30

Availability

Standard sizes are listed above. Additional sizes could be available upon request.

Available in spools and custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

Available colors are:

White
Black
Yellow
Red
Green
Gray
Orange
Blue
Red Iron Oxide

Additional colors may be available upon request.

Please consult your local sales representative for regional packaging details and standards.

Nominal Size mm	Recommended Application Range mm Min Ø Max Ø
8	8	12
10	10	15
12	12	18
14	14	21
16	16	24
18	18	27
20	20	30

Product Testing

Performance Data – FyreJacket® 1670

For optimal viewing experience on a mobile device, rotate to a landscape orientation.

All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
Property	Test Method	Result
Temperature Rating	240 hours at +225°C (+200°C rating)	Pass +200°C (+392°F)
Low Temperature Flexibility	BH100-016A	Pass -40°C (-40°F)
Resistant to Cracking	BH100-535	Pass
Elasticity	BH100-534	Pass
Fluid Resistance	BH100-003B	Pass
Flammability	SAE J369	SE (Self-extinguishing)
Dielectric Strength	ASTM D350	See table below
