THERMGUARD™ 1280

Operating temperature up to +225°C (+437°F)

Excellent thermal protection

Excellent abrasion resistance

Non-flammable

Flexible

FUNCTION:

Stacks Image 6847
Stacks Image 9811
Open all Close all
  • Product Description

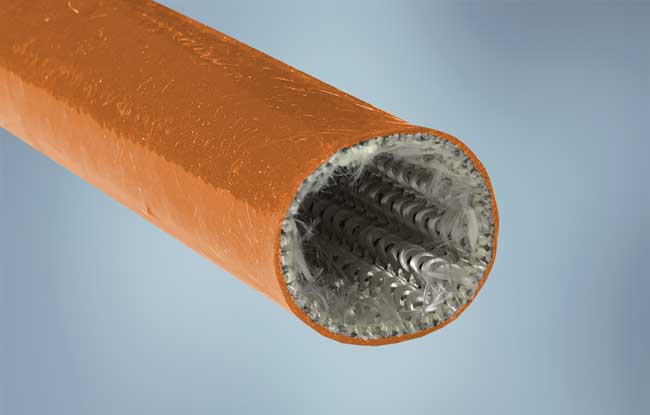

    ThermGuard™ 1280 is a heat-treated sleeve that provides superior protection against conducted and convected heat.

    ThermGuard 1280 is composed of three layers:

    • An inside layer of knitted fiberglass to provide superior insulation to components that must maintain stable temperatures to ensure performance efficiency.
    • A middle layer of aramid which increase the sleeve abrasion resistance.
    • And an outside layer of silicone rubber coated to act as a barrier against dusts, fluids and to improve the flexibility of the product.

    ThermGuard 1280 can be used on fuel and hydraulic lines, cables and hoses proximity to engines and exhaust systems.
  • Typical Applications

    • Engine wire harnesses
    • Fuel and hydraulic lines
    • Tubings and hoses

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Nominal Size
    mm
    Standard Packaging
    m
    ThermGuard 1280 8-0/-
    8
    200
    ThermGuard 1280 13-0/-
    13
    100
    ThermGuard 1280 18-0/-
    18
    50
    ThermGuard 1280 26-0/-
    26
    50

    Availability

    ThermGuard 1281 is available in a range of sizes from 8 to 26 mm.

    Standard colors are black or orange.

    ThermGuard 1280 is available in spools or cut to the following specifications:

    • Recommended standard cut length are in 5 mm increments.

    Packaging is in accordance with GALIA Standards (ODETTE).
  • Product Testing

    Performance Data - ThermGuard™ 1280

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    -50°C to +225°C (-58°F to +437°F)
    Heat Aging
    ISO 6722
    240hrs @ +250°C
    No visible degradation nor loss of flexibility
    Shrinkage < 10%
    Flammability
    FMVSS 302
    D45 1333
    Pass
    Self-extinguishing, Type B
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:
    • Immersion for 15s at 23°C, followed by a drying period of
      • 24h at 150°C: motor oil, automatic transmission fluid, manual transmission oil.
      • 24h at 23°C: zinc chloride, brake fluid.
    • Immersion for 48h at 70°C, followed by a drying period of 24h at 23°C:
      Urea of clean up. Ad blue.
    • Immersion for 24h
      • At 40°C, followed by a drying period of 4h at 23°C: for gazole, unloaded petrol 98, Std fuel C + 15% methanol, E85 bio ethanol.
      • At 70°C, followed by a drying period of 4h at 23°C, for windscreen washer.
      • At 118°C, by a drying period of 4h at 23°C, for engine coolant.
