THERM-L-WRAP™ 66

Operating temperature from -60°C to +200°C (-76°F to +392°F)

Excellent radiant heat protection

Excellent EMI shielding performance

FAR Part 25.853

Self-wrapping design

Flexible

Fluid and chemical resistant

FUNCTIONS:

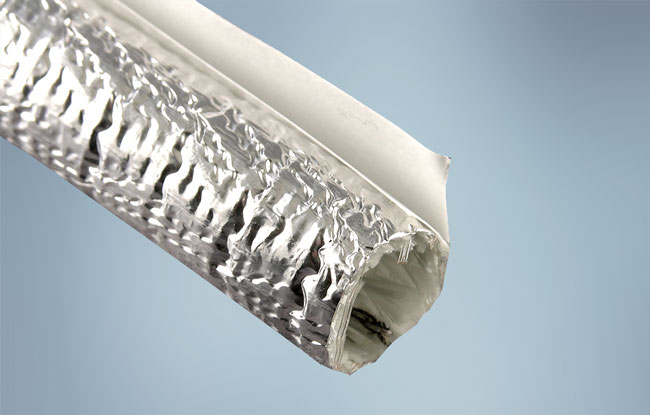

Stacks Image 6847
Open all Close all
  • Product Description
    Therm-L-Wrap™ 66 is a self-wrapping, reflective sleeve designed to provide thermal protection from both radiant and convective heat. Composed of a woven fiberglass base fabric and a lamination of aluminum foil, the product can withstand convective heat soaks up to 200ºC and simultaneously protect critical components from radiant or reflected heat.

    The unique woven structure imparts a level of flexibility not found in other reflective products. It also allows the product to maintain a circular profile when flexed.

    The self-wrapping design of Therm-L-Wrap 66 allows for quick and easy installation while the addition of a self-sealing adhesive reinforcement allows for permanent closure. The adhesive strip acts as a barrier to dirt and fluids while maintaining the full integrity of the finished aluminized sleeve.
  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Therm-L-Wrap 66 10
    9 (23/64”)
    11 (7/16")
    32 (0.021)
    Therm-L-Wrap 66 13
    12 (15/32")
    14 (35/64")
    54 (0.036)
    Therm-L-Wrap 66 16
    14 (35/64")
    17 (43/64")
    32 (0.02158 (0.039)
    Therm-L-Wrap 66 19
    15 (19/32")
    20 (25/32")
    68 (0.046)
    Therm-L-Wrap 66 25
    21 (53/64")
    26 (1-1/32")
    96 (0.064)

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Cut Length
    Quantity
    Therm-L-Wrap 66
    13
    Silver
    100m
    50 pieces


    Availability

    Product available in straight cut lengths only as follows:

    50 to 500mm: +/- 5mm
    501 to 1000mm: +/- 10mm

  • Product Testing

    Performance Data – Therm-L-Wrap™ 66

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Aging
    EN6059-302 (168 hrs. at +200°C)
    Pass
    Salt Spray
    EN2591-307 (96 hrs.)
    Pass
    Flammability / Smoke Density / Toxicity
    ABD0031 & FAR Part 25, paragraph 853
    Pass
    EMI Performance
    Transfer impedence EC60512-23-3
    Size tested = 13 mm

    (See graph below)
    70 dB at 100 MHz, R0 = 15 m目
    Thermal Performance
    SAE J2302 (Hot Box +540°C)
    147°C reduction (See graph below)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.

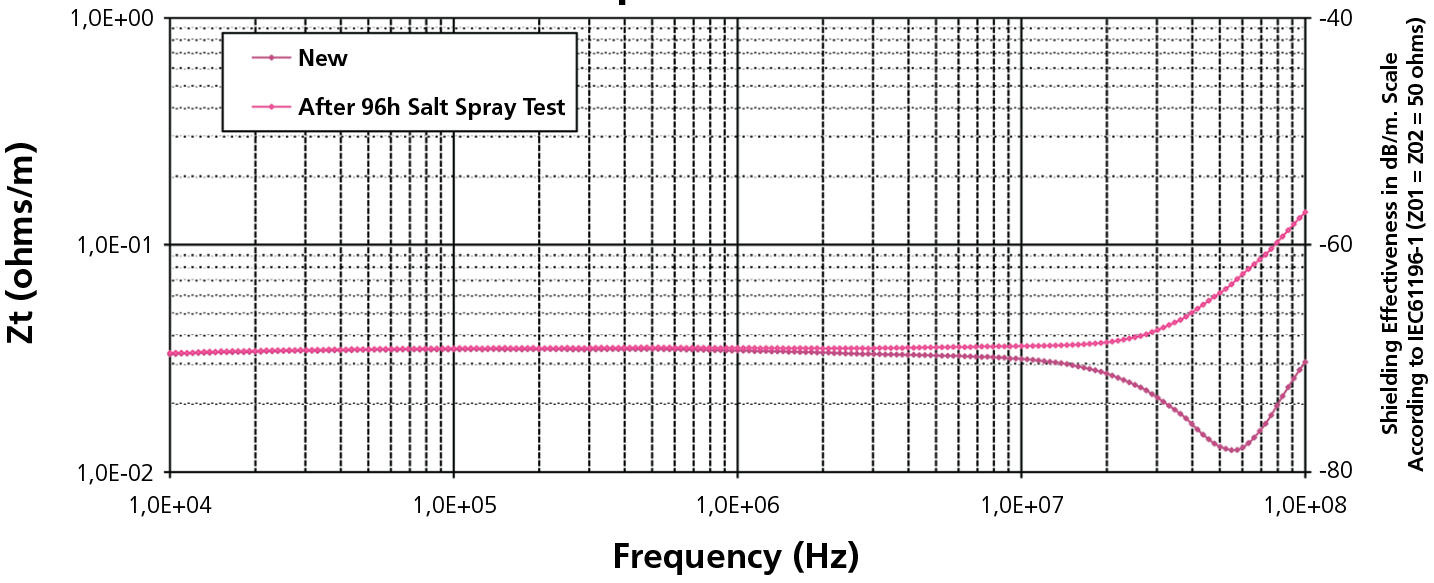

    Transfer Impedence Measurement

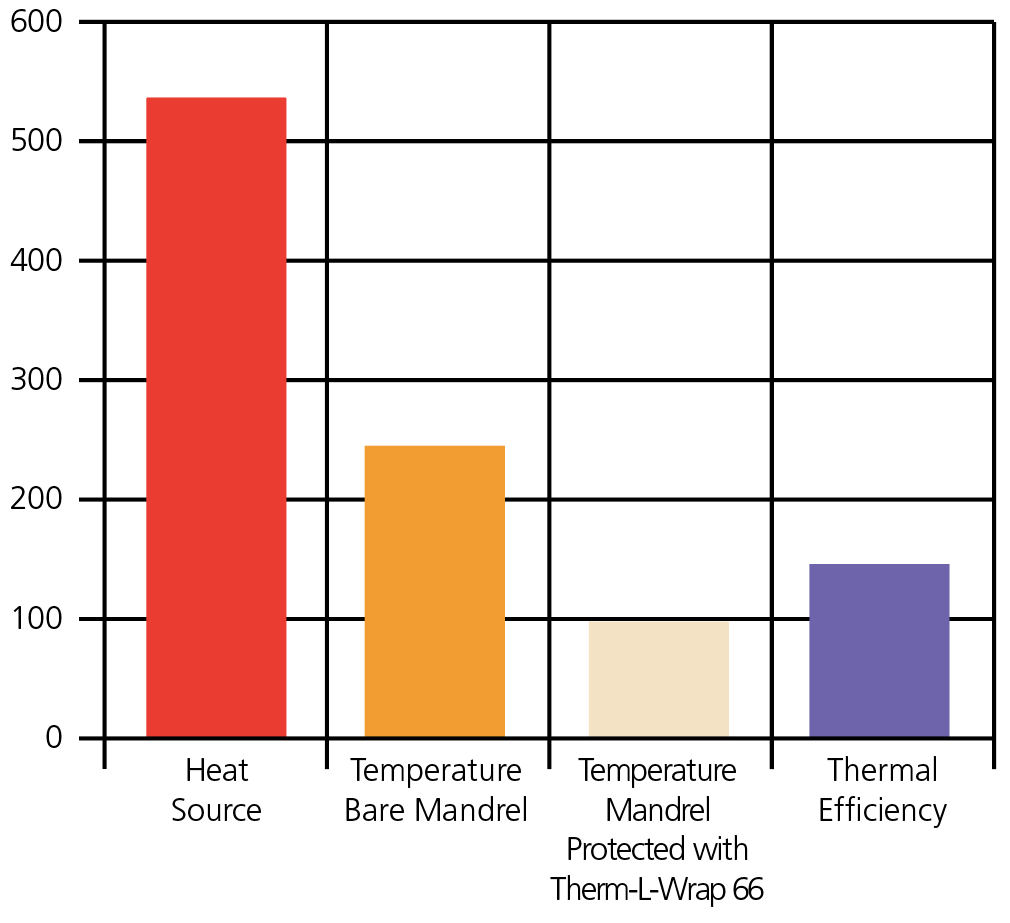

    Thermal Efficiency (Hot Box) SAE J2302


    Size 13mm (1/2”) Expressed in °C
    Heat source located 25mm (1”) from the mandrel
